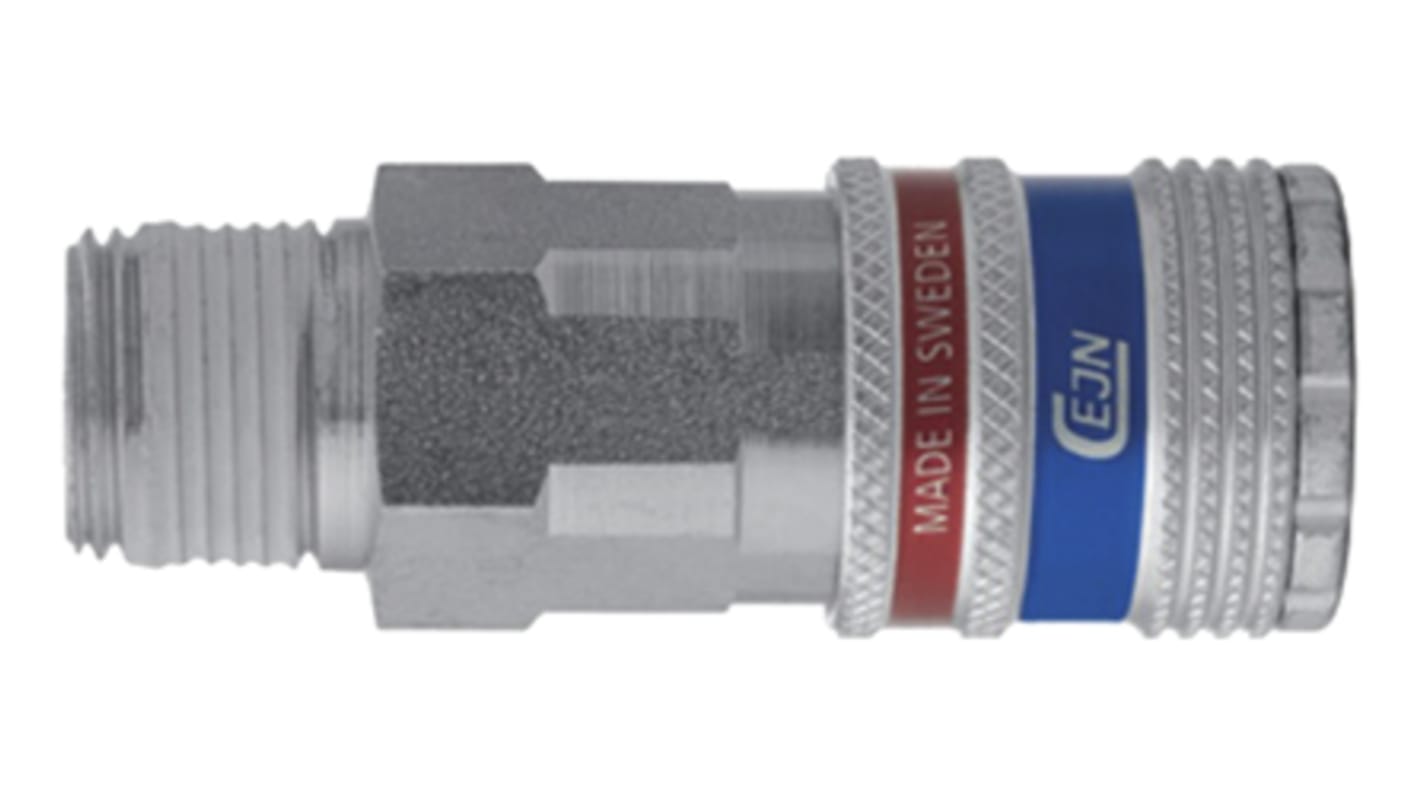

CEJN Brass, Stainless Steel Female Pneumatic Quick Connect Coupling, R 3/8 Male Threaded
- RS Stock No.:
- 121-8030
- Mfr. Part No.:
- C103102154
- Brand:
- CEJN
Subtotal (1 unit)*
£31.20
(exc. VAT)
£37.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 43 unit(s) ready to ship
- Plus 9 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £31.20 |
*price indicative
- RS Stock No.:
- 121-8030
- Mfr. Part No.:
- C103102154
- Brand:
- CEJN
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | CEJN | |
| Threaded Connection | R 3/8 Male | |
| Coupling Gender | Female | |
| Thread Size | 3/8in | |
| Coupling Type | Quick Connect Coupling Socket | |
| Manufacturer Series | 310 eSafe | |
| Connection Type | Threaded | |
| Material | Brass, Stainless Steel | |
| Thread Gender | Male | |
| Thread Standard | R | |
| Maximum Operating Pressure | 16bar | |
| Finish | Zinc Plated | |
| Minimum Operating Temperature | -20°C | |
| Seal Material | NBR | |
| Maximum Operating Temperature | +100°C | |
Select all | ||
|---|---|---|
Brand CEJN | ||
Threaded Connection R 3/8 Male | ||
Coupling Gender Female | ||
Thread Size 3/8in | ||
Coupling Type Quick Connect Coupling Socket | ||
Manufacturer Series 310 eSafe | ||
Connection Type Threaded | ||
Material Brass, Stainless Steel | ||
Thread Gender Male | ||
Thread Standard R | ||
Maximum Operating Pressure 16bar | ||
Finish Zinc Plated | ||
Minimum Operating Temperature -20°C | ||
Seal Material NBR | ||
Maximum Operating Temperature +100°C | ||
- COO (Country of Origin):
- SE
CEJN eSafe 310 Series
CEJN’s eSafe pneumatic couplings combine high performance and ease of use in a compact and robust design. The easy to use two stage disconnection vents pressure before disconnection, reducing noise and the risk of injury from hose whip and can be operated with using one hand.
The high flow capacity and a minimal pressure drop of the eSafe quick connect couplings help reduce losses and increased productivity and efficiency.
The high flow capacity and a minimal pressure drop of the eSafe quick connect couplings help reduce losses and increased productivity and efficiency.
Features and Benefits
Complies with ISO 4414 and EN 983
86N Connection force
5.3mm nominal flow diameter
950 l/min flow rate
ISO 6150-B, A-A 49439 Compatible
86N Connection force
5.3mm nominal flow diameter
950 l/min flow rate
ISO 6150-B, A-A 49439 Compatible
Applications
CEJN's eSafe coulings are suitable for use in a vast range or workplaces using compressed air including
carpentry, the manufacturing industry, automotive repair shops and mining
carpentry, the manufacturing industry, automotive repair shops and mining
Interchanges to other Brand Profiles
