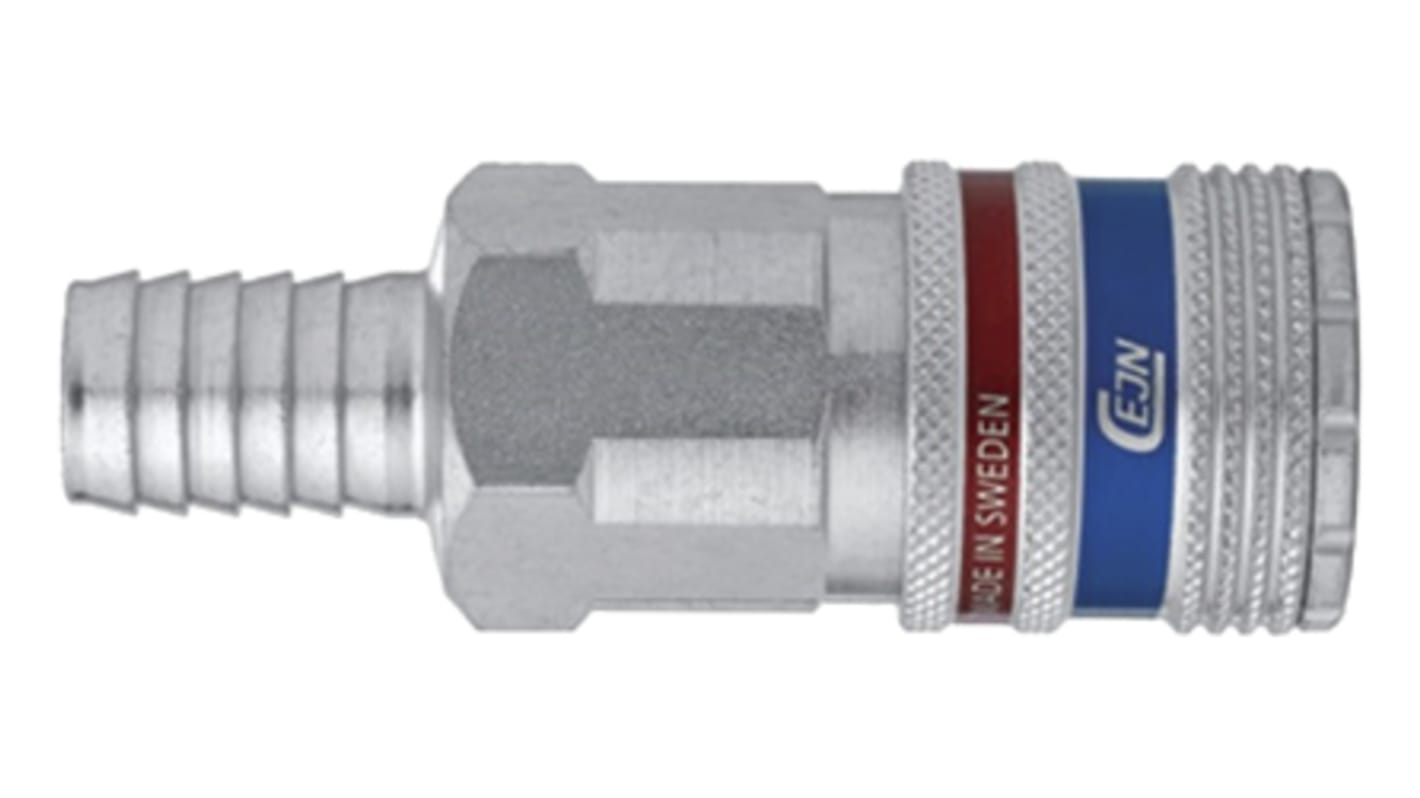

CEJN Brass, Stainless Steel Male Pneumatic Quick Connect Coupling, 8mm Hose Barb
- RS Stock No.:
- 121-8043
- Mfr. Part No.:
- C103202003
- Brand:
- CEJN
Available to back order for despatch 02/05/2024
Added
Price Each
£28.71
(exc. VAT)
£34.45
(inc. VAT)
| Units | Per unit |
| 1 + | £28.71 |
- RS Stock No.:
- 121-8043
- Mfr. Part No.:
- C103202003
- Brand:
- CEJN
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- SE
Product Details
CEJN eSafe 320 Series
CEJN’s eSafe pneumatic couplings combine high performance and ease of use in a compact and robust design. The easy to use two stage disconnection vents pressure before disconnection, reducing noise and the risk of injury from hose whip and can be operated with using one hand.
The high flow capacity and a minimal pressure drop of the eSafe quick connect couplings help reduce losses and increased productivity and efficiency.
The high flow capacity and a minimal pressure drop of the eSafe quick connect couplings help reduce losses and increased productivity and efficiency.
Features and Benefits
Complies with ISO 4414 and EN 983
86N Connection force
7.6mm nominal flow diameter
2250 l/min flow rate
CEJN Original and Euro Standard Compatible
86N Connection force
7.6mm nominal flow diameter
2250 l/min flow rate
CEJN Original and Euro Standard Compatible
Applications
CEJN's eSafe coulings are suitable for use in a vast range or workplaces using compressed air including
carpentry, the manufacturing industry, automotive repair shops and mining
carpentry, the manufacturing industry, automotive repair shops and mining
Interchanges to other Brand Profiles
Specifications
Attribute | Value |
|---|---|
| Coupling Gender | Male |
| Manufacturer Series | 320 eSafe |
| Connection Type | Hose Barb |
| Hose Barb Connection | 8mm |
| Material | Brass, Stainless Steel |
| Maximum Operating Pressure | 16bar |
| Finish | Zinc Plated |
| Minimum Operating Temperature | -20°C |
| Seal Material | NBR |
| Maximum Operating Temperature | +100°C |
