Festo VPPM Threaded Regulator, NPT 1/8, NPT, 1/8 in
- RS Stock No.:
- 651-987
- Mfr. Part No.:
- VPPM-6L-L-1-N18-0L6H-V1N
- Brand:
- Festo
Subtotal (1 unit)*
£470.54
(exc. VAT)
£564.65
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £470.54 |
*price indicative
- RS Stock No.:
- 651-987
- Mfr. Part No.:
- VPPM-6L-L-1-N18-0L6H-V1N
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Threaded Inlet Port | NPT 1/8 | |
Minimum Outlet Pressure | 0bar | |
Maximum Outlet Pressure | 6bar | |
Manufacturer Series | VPPM | |
Inlet Port Type | Threaded | |
Threaded Outlet Port Thread Standard | NPT | |
Threaded Inlet Port Size | 1/8 in | |
Select all | ||
---|---|---|
Brand Festo | ||
Threaded Inlet Port NPT 1/8 | ||
Minimum Outlet Pressure 0bar | ||
Maximum Outlet Pressure 6bar | ||
Manufacturer Series VPPM | ||
Inlet Port Type Threaded | ||
Threaded Outlet Port Thread Standard NPT | ||
Threaded Inlet Port Size 1/8 in | ||
- COO (Country of Origin):
- BG

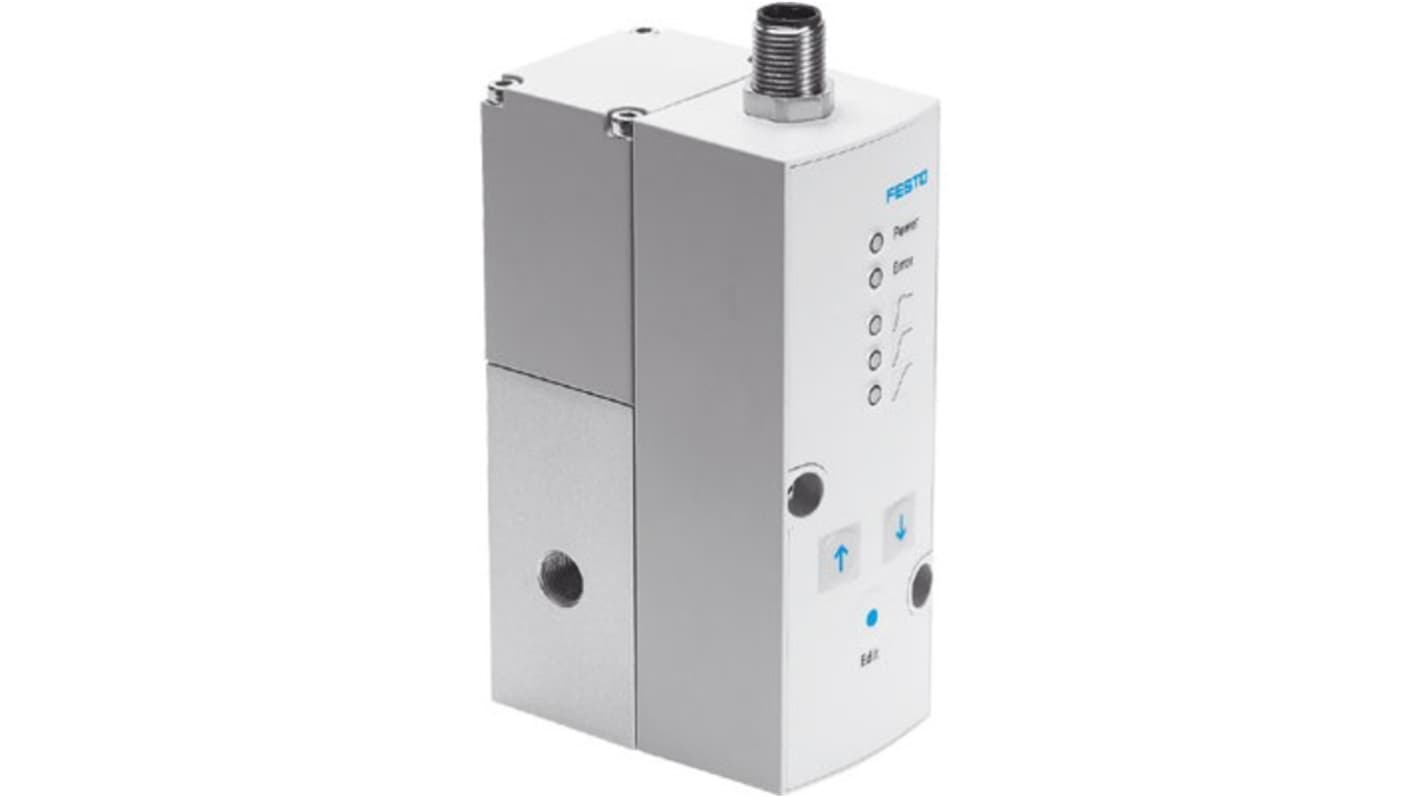

The Festo Proportional-pressure regulator is engineered for precision control in pneumatic applications. Designed with a pilot-actuated diaphragm, this regulator adeptly manages pressures ranging from 0.006 MPa to 0.6 MPa, ensuring optimal performance in various operational settings. With a maximum inlet pressure of 8 bar, it guarantees reliable regulation while maintaining output pressure even in the event of power interruption. The product is suitable for both inert gases and compressed air, making it a versatile asset for industrial operations. Its robust design includes a soft sealing principle and an optional mounting position, perfect for integration in diverse environments. With IP65 protection, it is built to withstand challenging conditions while delivering consistent results.
Reverse polarity protection across all electrical connections enhances safety during use
Mechanical spring reset system provides reliable performance and quick recovery
LED display type offers clear visual feedback for easy monitoring
Designed with moderate corrosion resistance suitable for various environments
Electrical connections via 8 pin M12 plugs simplify installation and compatibility
Low maximum current consumption of 300 mA ensures energy efficiency
Mechanical spring reset system provides reliable performance and quick recovery
LED display type offers clear visual feedback for easy monitoring
Designed with moderate corrosion resistance suitable for various environments
Electrical connections via 8 pin M12 plugs simplify installation and compatibility
Low maximum current consumption of 300 mA ensures energy efficiency
