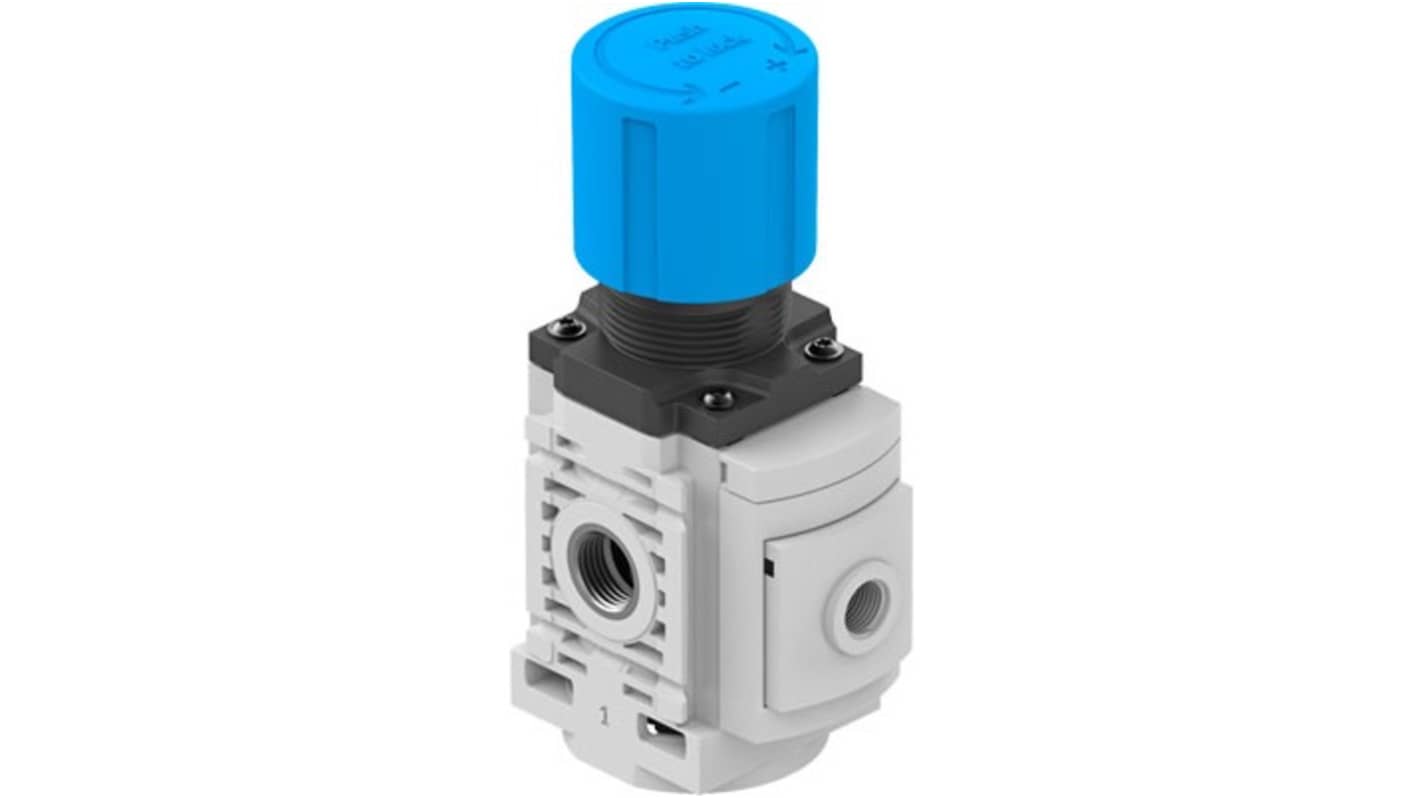

Festo VRPA Threaded Regulator, G 1/4, G, 1/4 in
- RS Stock No.:
- 651-026
- Mfr. Part No.:
- MS4-LR-1/4-D7-A8
- Brand:
- Festo
Subtotal (1 unit)*
£34.19
(exc. VAT)
£41.03
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £34.19 |
*price indicative
- RS Stock No.:
- 651-026
- Mfr. Part No.:
- MS4-LR-1/4-D7-A8
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Threaded Inlet Port | G 1/4 | |
Minimum Outlet Pressure | 0.5bar | |
Maximum Outlet Pressure | 12bar | |
Manufacturer Series | VRPA | |
Inlet Port Type | Threaded | |
Threaded Outlet Port Thread Standard | G | |
Threaded Inlet Port Size | 1/4 in | |
Select all | ||
---|---|---|
Brand Festo | ||
Threaded Inlet Port G 1/4 | ||
Minimum Outlet Pressure 0.5bar | ||
Maximum Outlet Pressure 12bar | ||
Manufacturer Series VRPA | ||
Inlet Port Type Threaded | ||
Threaded Outlet Port Thread Standard G | ||
Threaded Inlet Port Size 1/4 in | ||
- COO (Country of Origin):
- HU
The Festo Pressure regulator designed to maintain consistent output pressure in pneumatic systems. It features a directly actuated diaphragm mechanism that ensures effective pressure regulation ranging from 0.5 to 12 bar. Built with versatility in mind, this regulator boasts optional mounting positions and is suitable for a diverse array of operating environments. The device is capable of handling compressed air and inert gases, offering robust performance with a storage temperature range of -10 °C to 60 °C. Its corrosion resistance class CRC 2 allows it to endure moderate conditions, making it a reliable choice for industrial applications where durability and precision are paramount.
Designed for direct actuation which ensuring accurate and reliable pressure control
Optional mounting positions accommodate various installation preferences
Features rotary knob actuator with detent for precise pressure adjustments
Constructed with a corrosion resistance class CRC 2 for moderate stress environments
Compatible with lubricated operation suitable for various operating mediums
Environmentally friendly being RoHS compliant and suitable for food contact
Built for durability with materials including die cast aluminium and NBR seals
Optional mounting positions accommodate various installation preferences
Features rotary knob actuator with detent for precise pressure adjustments
Constructed with a corrosion resistance class CRC 2 for moderate stress environments
Compatible with lubricated operation suitable for various operating mediums
Environmentally friendly being RoHS compliant and suitable for food contact
Built for durability with materials including die cast aluminium and NBR seals
