Festo VRPA Threaded Regulator, G 1/8, G, 1/8 in
- RS Stock No.:
- 650-520
- Mfr. Part No.:
- MS4-LR-1/8-D5-VS-DM1
- Brand:
- Festo
Subtotal (1 unit)*
£59.01
(exc. VAT)
£70.81
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £59.01 |
*price indicative
- RS Stock No.:
- 650-520
- Mfr. Part No.:
- MS4-LR-1/8-D5-VS-DM1
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Threaded Inlet Port | G 1/8 | |
Minimum Outlet Pressure | 0.3bar | |
Maximum Outlet Pressure | 4bar | |
Manufacturer Series | VRPA | |
Inlet Port Type | Threaded | |
Threaded Outlet Port Thread Standard | G | |
Threaded Inlet Port Size | 1/8 in | |
Select all | ||
---|---|---|
Brand Festo | ||
Threaded Inlet Port G 1/8 | ||
Minimum Outlet Pressure 0.3bar | ||
Maximum Outlet Pressure 4bar | ||
Manufacturer Series VRPA | ||
Inlet Port Type Threaded | ||
Threaded Outlet Port Thread Standard G | ||
Threaded Inlet Port Size 1/8 in | ||
- COO (Country of Origin):
- HU

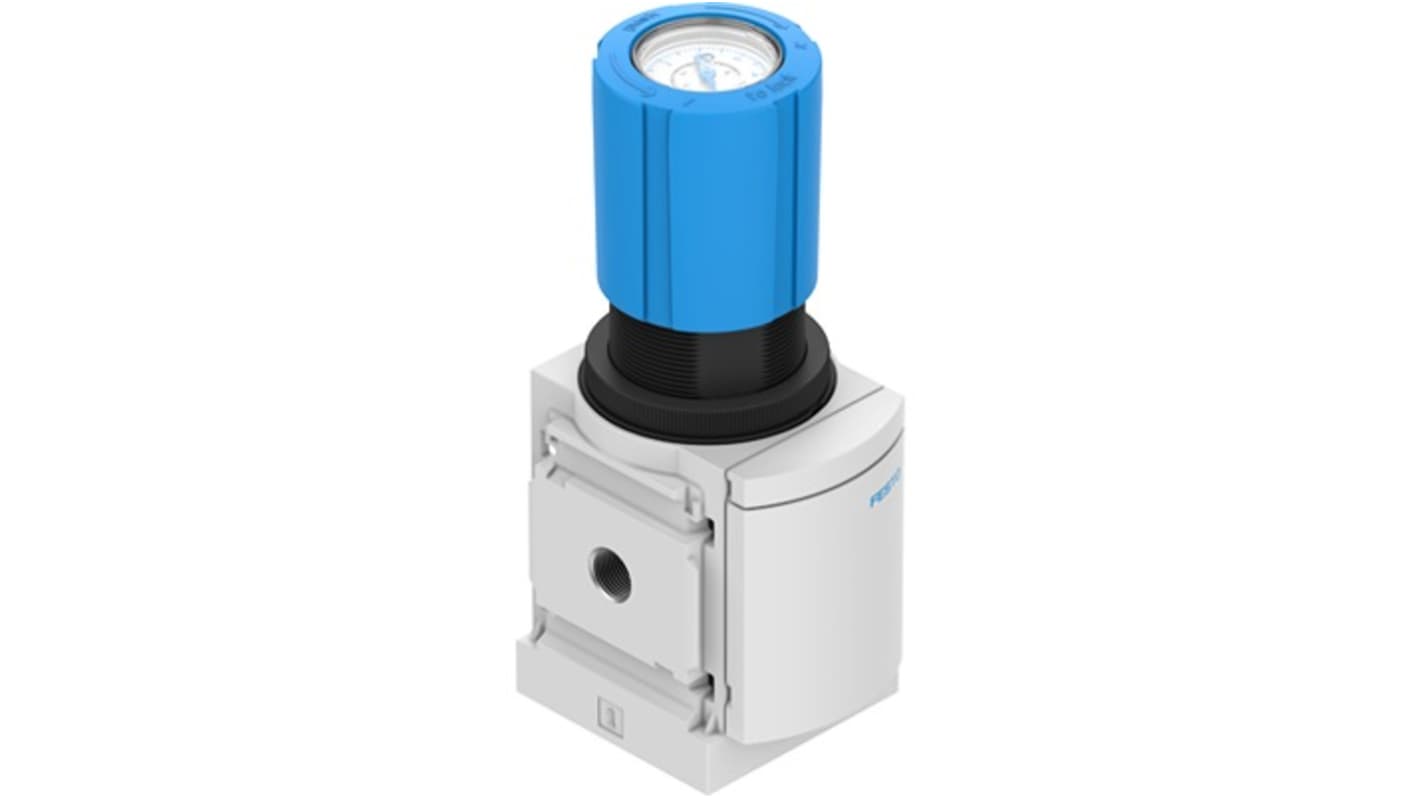

The Festo Pressure regulator is engineered to maintain a constant output pressure in pneumatic systems, ensuring optimal performance and reliability. Designed with a directly actuated diaphragm, it allows for precise control of compressed air and inert gases, making it ideal for various applications. Its compact size and optional mounting positions enhance versatility within your setup. With a robust construction that includes a die-cast aluminium housing and NBR seals, this regulator is built to withstand moderate corrosion stress while performing efficiently in ambient temperatures ranging from -10 °C to 60 °C. The pressure gauge, conveniently integrated into the rotary knob, provides easy monitoring and adjustment, solidifying its place as an essential component in pneumatic installations.
Rotary knob with detent for straightforward adjustment and monitoring
Directly actuated diaphragm design for highly reliable pressure control
Versatile mounting options include front panel and in line installations
Engineered for lubricated operation accommodating specific system requirements
Corrosion resistance class CRC 2 suitable for moderate environments
RoHS compliant which ensuring adherence to environmental safety standards
Integrated pressure gauge provides immediate pressure readings for user convenience
Compatible with food applications expanding its usability in diverse industries
Directly actuated diaphragm design for highly reliable pressure control
Versatile mounting options include front panel and in line installations
Engineered for lubricated operation accommodating specific system requirements
Corrosion resistance class CRC 2 suitable for moderate environments
RoHS compliant which ensuring adherence to environmental safety standards
Integrated pressure gauge provides immediate pressure readings for user convenience
Compatible with food applications expanding its usability in diverse industries
