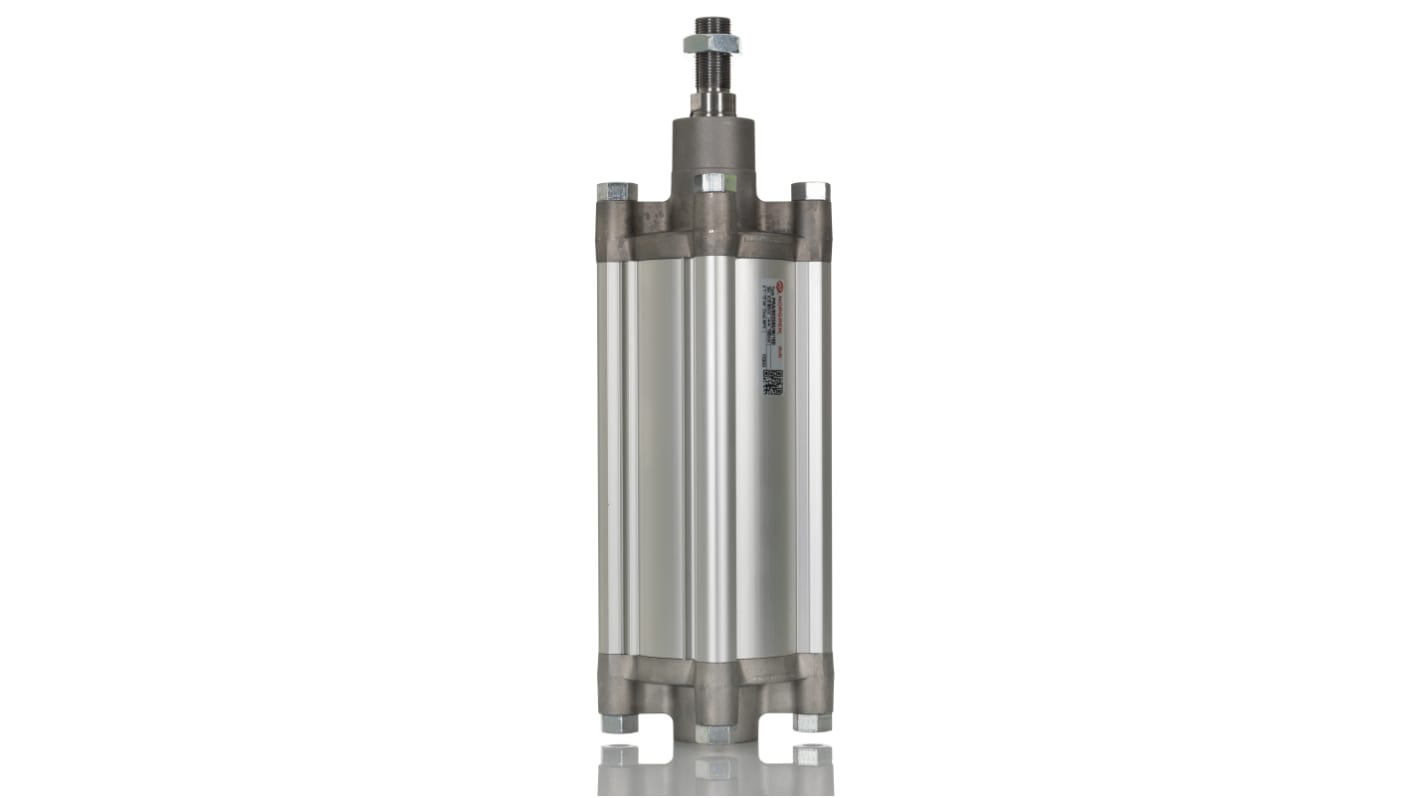

Norgren Double Acting Cylinder - PRA/802000/M, 80mm Bore, 160mm Stroke, ISOLine Series, Double Acting
- RS Stock No.:
- 218-0655
- Mfr. Part No.:
- PRA/802080/M/160
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£216.26
(exc. VAT)
£259.51
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £216.26 |
5 - 9 | £211.94 |
10 + | £207.62 |
*price indicative
- RS Stock No.:
- 218-0655
- Mfr. Part No.:
- PRA/802080/M/160
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | ISOLine | |
Model Number p | PRA/802000/M | |
Action | Double | |
Stroke | 160mm | |
Bore | 80mm | |
Pneumatic Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Pneumatic Adjustable | |
Dimensions | 374 x 95 x 95mm | |
Height | 95mm | |
Width | 95mm | |
Length | 374mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Maximum Operating Temperature | +80°C | |
Test Weight | 2.64 kg (At 0 mm) | |
Stroke Interval Weight | 0.2 kg (At 25 mm Stroke) | |
Weight | 3.9kg | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series ISOLine | ||
Model Number p PRA/802000/M | ||
Action Double | ||
Stroke 160mm | ||
Bore 80mm | ||
Pneumatic Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Adjustable | ||
Dimensions 374 x 95 x 95mm | ||
Height 95mm | ||
Width 95mm | ||
Length 374mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Maximum Operating Temperature +80°C | ||
Test Weight 2.64 kg (At 0 mm) | ||
Stroke Interval Weight 0.2 kg (At 25 mm Stroke) | ||
Weight 3.9kg | ||
Minimum Operating Temperature -20°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
IMI Norgren Double-Acting Cylinder, 1 to 12 Bar Operating Pressure Range, G3/8 Pneumatic Port Size - ISOLine Series - PRA/802080/M/160
Need a reliable powerhouse to get your pneumatic equipment moving? This double-acting cylinder from IMI Norgren has dual inlets to take in air that extends and contracts the piston. As a result, you get accurate control over linear motion in both directions. You'll find the unit's compatible with clean, lubricated and filtered air sources, meaning it's a reliable match for standard systems. Thanks to its corrosion-resistant aluminium casing, you can trust this cylinder to stand up to the demands of damp environments.
Features & Benefits
• Industry-standard M20x1.5 male piston rod thread, providing wide compatibility
• Airtight PUR seals minimise operating friction for long service life
• 80mm bore, so it's a compact piece of kit that fits snugly into smaller setups
• Top-mounted screw allows manual cushioning adjustment when needed for extreme applications
• Handles temperatures between -20°C and +80°C, giving dependable performance in tough conditions
• Airtight PUR seals minimise operating friction for long service life
• 80mm bore, so it's a compact piece of kit that fits snugly into smaller setups
• Top-mounted screw allows manual cushioning adjustment when needed for extreme applications
• Handles temperatures between -20°C and +80°C, giving dependable performance in tough conditions
Applications
• Material handling
• Distribution centres
• Mineral processing
• Distribution centres
• Mineral processing
Can I track the position of the piston in this cylinder?
Yes, this product works with a proximity switch (220-3937) to signal its stroke position straight to your control device, making for easy position-tracking.
