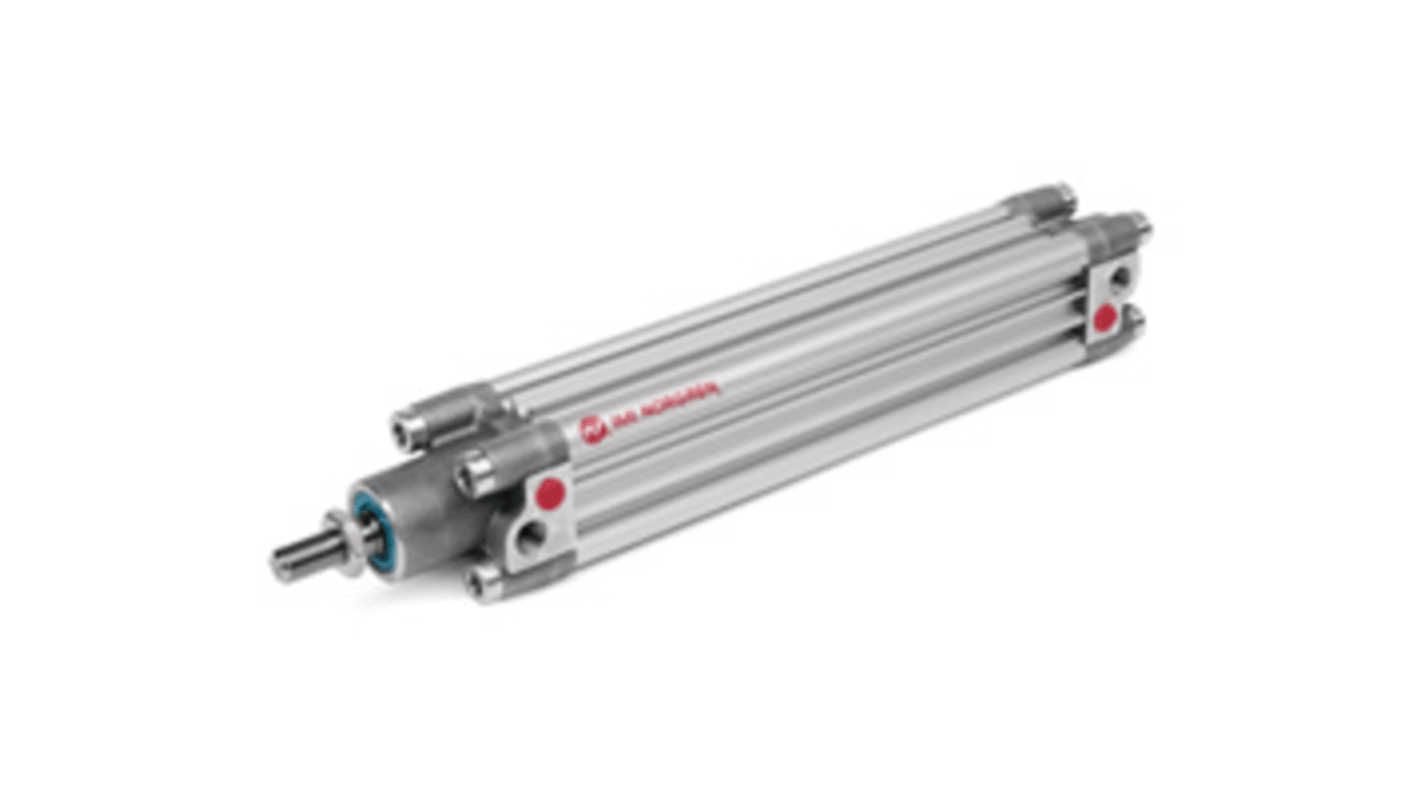

Norgren Double Acting Cylinder - PRA/802000, 80mm Bore, 300mm Stroke, PRA Series, Double Acting
- RS Stock No.:
- 220-3912
- Mfr. Part No.:
- PRA/802080/M/300
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£235.30
(exc. VAT)
£282.36
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 999,999,997 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £235.30 |
5 - 9 | £230.59 |
10 + | £225.89 |
*price indicative
- RS Stock No.:
- 220-3912
- Mfr. Part No.:
- PRA/802080/M/300
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | PRA | |
Model Number p | PRA/802000 | |
Bore | 80mm | |
Action | Double | |
Stroke | 300mm | |
Pneumatic Connection | G 1/8 | |
Length | 214mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Test Weight | 2.64 (At 0 mm stroke) kg | |
Stroke Interval Weight | 0.2 (At 25 mm Stroke) kg | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series PRA | ||
Model Number p PRA/802000 | ||
Bore 80mm | ||
Action Double | ||
Stroke 300mm | ||
Pneumatic Connection G 1/8 | ||
Length 214mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Test Weight 2.64 (At 0 mm stroke) kg | ||
Stroke Interval Weight 0.2 (At 25 mm Stroke) kg | ||
RoHS Status: Exempt
- COO (Country of Origin):
- DE
IMI Norgren Double-Acting Cylinder, G3/8 Port, 25mm Piston Rod Diameter - PRA Series - PRA/802080/M/300
Need a unit to deliver linear force in your industrial application? Add this double-acting cylinder from IMI Norgren to your arsenal. It's an ideal choice for precision ejecting and clamping jobs, thanks to the double-action airflow mechanism that gives accurate control in both directions. As a powerful option that generates a theoretical force of 3016N at 6 bar on the outstroke, it shifts large loads with ease. Corrosion-resistant NBR seals keep pressure constant and stop contaminants from getting into the media to ensure top performance that lasts.
Features & Benefits
• 80mm bore and 300mm stroke suit larger applications
• Anodised aluminium barrel and stainless steel piston rod withstand abrasion and mechanical stress, so it's durable
• Tested for reliable performance in high-vibration settings
• Anodised aluminium barrel and stainless steel piston rod withstand abrasion and mechanical stress, so it's durable
• Tested for reliable performance in high-vibration settings
Applications
• Process control
• Industrial automation
• Cooling lines
• Automotive industry
• Industrial automation
• Cooling lines
• Automotive industry
Can this component handle repetitive impacts over time?
To prolong its service life, this device has inbuilt ACS cushioning technology that absorbs impacts from the rod to minimise damage from collision forces. If you're dealing with extreme impact forces, simply tweak the cushioning to suit your task using a screwdriver to twist the mechanism's screwhead.
