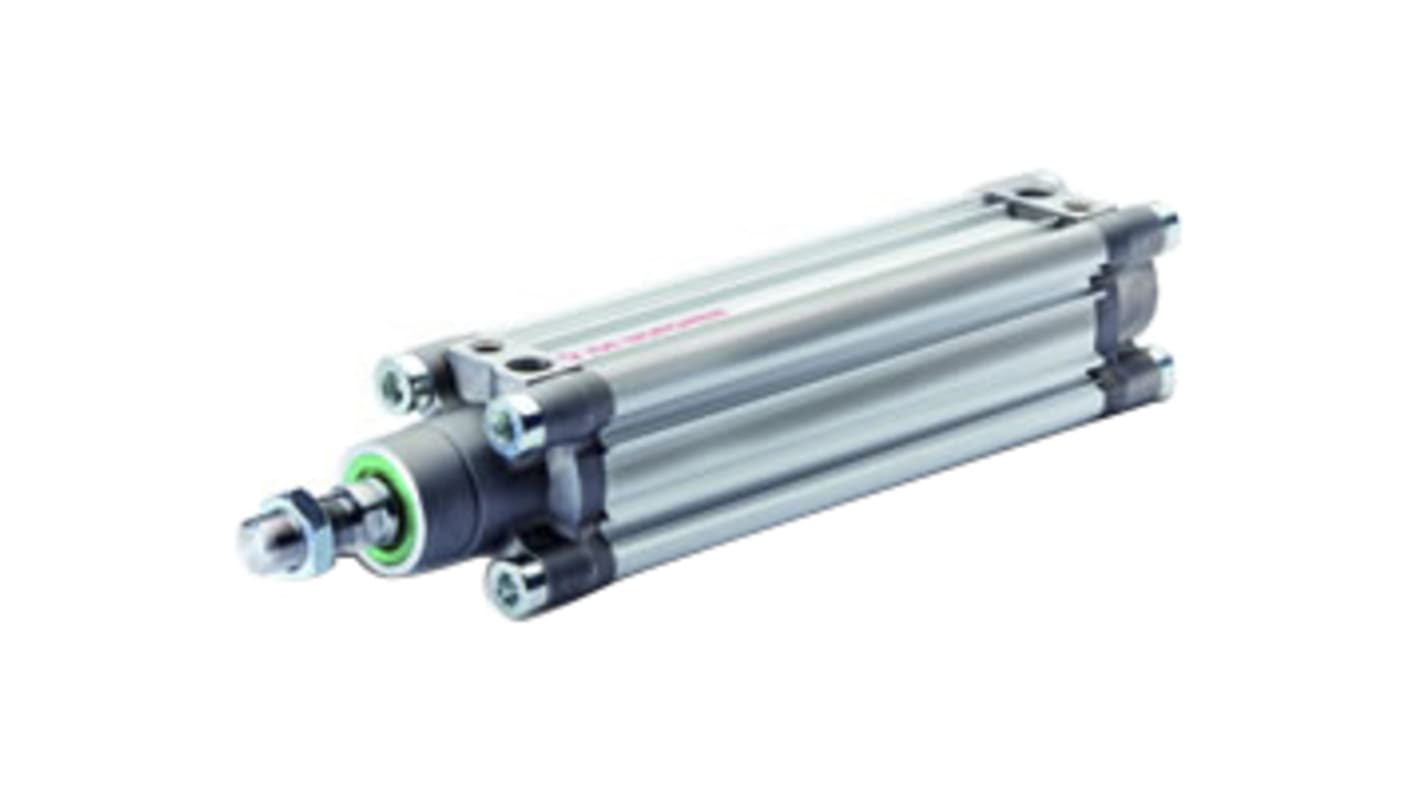

Norgren Pneumatic Piston Rod Cylinder - 50mm Bore, 160mm Stroke, PRA/802000/M Series, Double Acting
- RS Stock No.:
- 164-7061
- Mfr. Part No.:
- PRA/802050/M/160
- Brand:
- Norgren
Subtotal (1 unit)*
£137.29
(exc. VAT)
£164.75
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
- Plus 999,999,996 unit(s) shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £137.29 |
*price indicative
- RS Stock No.:
- 164-7061
- Mfr. Part No.:
- PRA/802050/M/160
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | PRA/802000/M | |
Bore | 50mm | |
Action | Double | |
Stroke | 160mm | |
Pneumatic Connection | G 1/4 | |
Port Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 335 x 65 x 65mm | |
Width | 65mm | |
Length | 335mm | |
Diameter | 50mm | |
Height | 65mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Test Weight | 1.09 kg @ 0 mm | |
VDMA Standard | 24562 | |
Stroke Interval Weight | 0.12 kg @ 25 mm | |
Weight | 1.9kg | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series PRA/802000/M | ||
Bore 50mm | ||
Action Double | ||
Stroke 160mm | ||
Pneumatic Connection G 1/4 | ||
Port Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 335 x 65 x 65mm | ||
Width 65mm | ||
Length 335mm | ||
Diameter 50mm | ||
Height 65mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Test Weight 1.09 kg @ 0 mm | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 0.12 kg @ 25 mm | ||
Weight 1.9kg | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
IMI Norgren Pneumatic Piston Rod Cylinder, Double Acting, Air Cushioning Type - PRA/802000/M Series - PRA/802050/M/160
Looking for some muscle to drive your industrial setup? Choose this pneumatic piston rod cylinder from IMI Norgren for consistent performance. It's a double-action type unit, meaning compressed air drives the piston in both directions, so you benefit from speed and precision. As the unit generates an outstroke force up to 1178N, it's an ideal choice for tasks that need some oomph. This device keeps the door firmly closed on contaminants, thanks to NBR seals that resist corrosion and ensure dust is shut out.
Features & Benefits
• Compact dimensions of 178.5 (L) x 65 (W) x 65mm (H) mean it's a space-efficient option
• 160mm stroke and 50mm bore deliver powerful output for demanding applications
• Barrel accommodates flush mounting for switches
• Versatile option for use in a temperature range from -20°C to +80°C
• 160mm stroke and 50mm bore deliver powerful output for demanding applications
• Barrel accommodates flush mounting for switches
• Versatile option for use in a temperature range from -20°C to +80°C
Applications
• Mining and minerals processing
• Automotive manufacturing
• Cooling lines
• Automotive manufacturing
• Cooling lines
Does this device come with cushioning?
Yes, it has an inbuilt air cushioning system that reduces wear from impact to support a long service life.
What media can I use this product with?
This assembly is compatible with lubricated, non-lubricated and filtered compressed air, so slots easily into your existing setup.
