Norgren Pneumatic Piston Rod Cylinder - 50mm Bore, 25mm Stroke, PRA/802000/M Series, Double Acting
- RS Stock No.:
- 164-7064
- Mfr. Part No.:
- PRA/802050/M/25
- Brand:
- Norgren
Subtotal (1 unit)*
£125.02
(exc. VAT)
£150.02
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 31 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £125.02 |
*price indicative
- RS Stock No.:
- 164-7064
- Mfr. Part No.:
- PRA/802050/M/25
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | PRA/802000/M | |
Bore | 50mm | |
Stroke | 25mm | |
Action | Double | |
Port Connection | G 1/4 | |
Cushioning Type | Air | |
Dimensions | 178.5 x 65 x 65mm | |
Length | 178.5mm | |
Height | 65mm | |
Width | 65mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Test Weight | 1.09 kg @ 0 mm | |
Stroke Interval Weight | 0.12 kg @ 25 mm | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
VDMA Standard | 24562 | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series PRA/802000/M | ||
Bore 50mm | ||
Stroke 25mm | ||
Action Double | ||
Port Connection G 1/4 | ||
Cushioning Type Air | ||
Dimensions 178.5 x 65 x 65mm | ||
Length 178.5mm | ||
Height 65mm | ||
Width 65mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Test Weight 1.09 kg @ 0 mm | ||
Stroke Interval Weight 0.12 kg @ 25 mm | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
VDMA Standard 24562 | ||
- COO (Country of Origin):
- DE

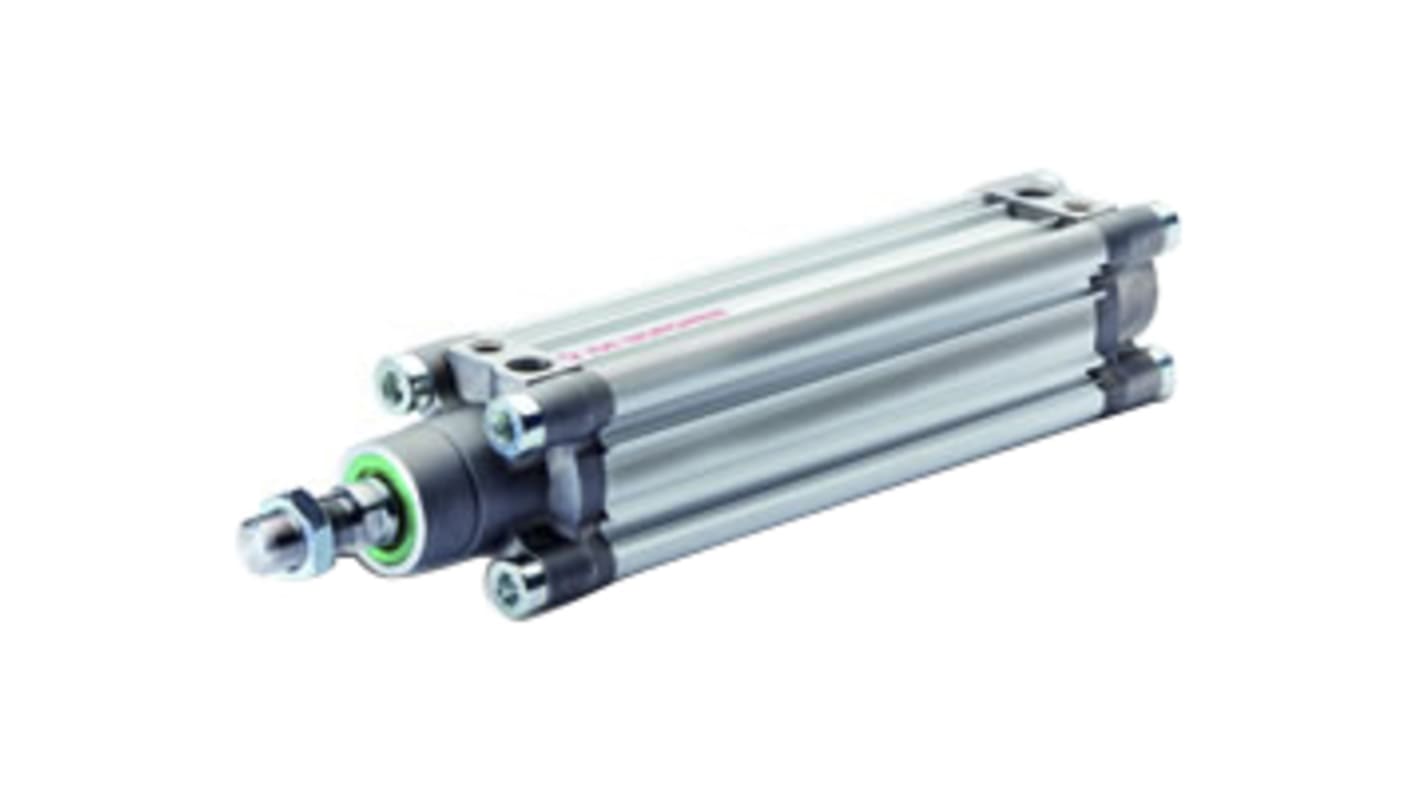

ISOLine™ profile cylinder, 50mm diameter, 25mm stroke, ISO15552
High performance, stability and reliability
Polyurethane seals ensure efficient low friction operation and long life
Switches can be mounted flush with the profile barrel
Polyurethane seals ensure efficient low friction operation and long life
Switches can be mounted flush with the profile barrel
