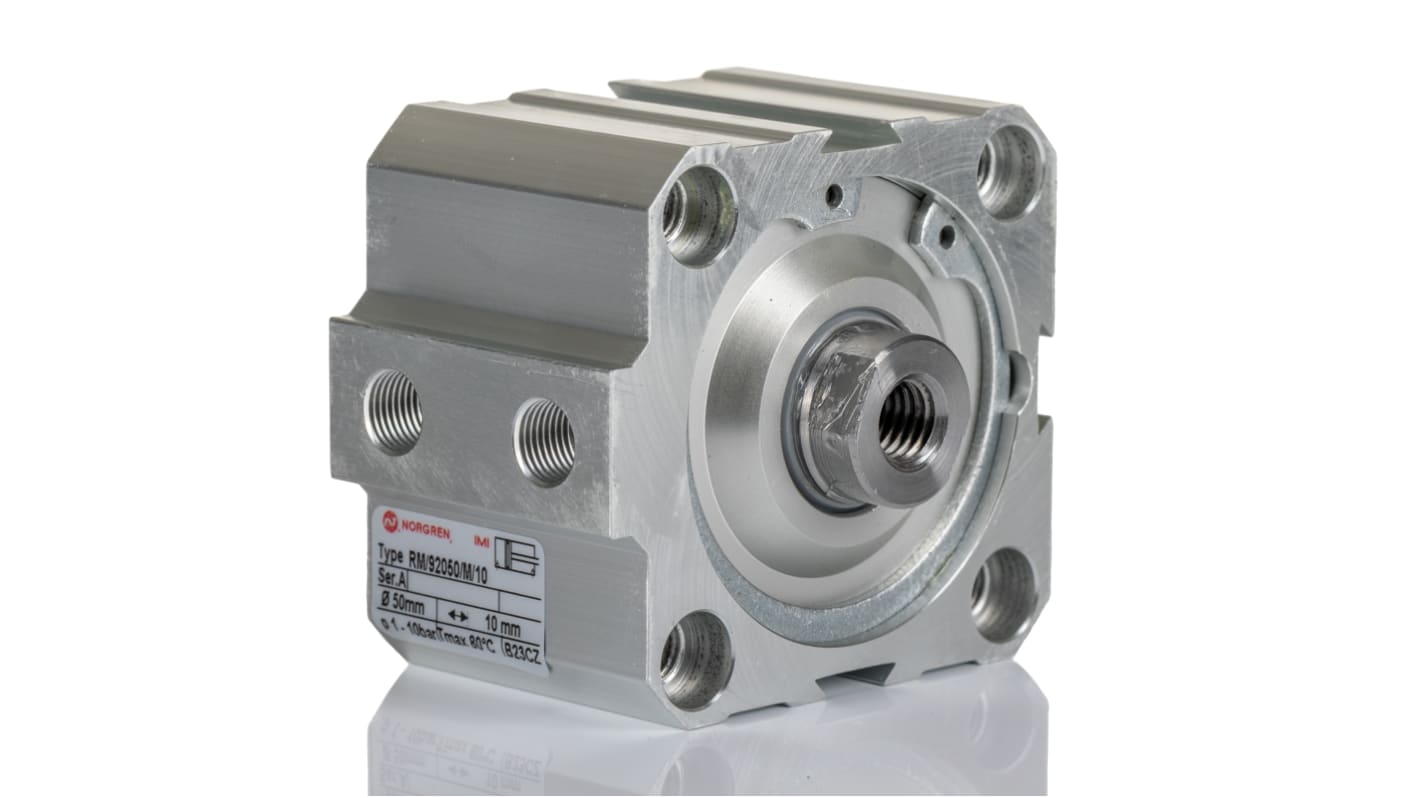

Norgren Pneumatic Compact Cylinder - 50mm Bore, 10mm Stroke, RM/92000/M Series, Double Acting
- RS Stock No.:
- 212-9325
- Mfr. Part No.:
- RM/92050/M/10
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£108.26
(exc. VAT)
£129.91
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £108.26 |
5 + | £103.93 |
*price indicative
- RS Stock No.:
- 212-9325
- Mfr. Part No.:
- RM/92050/M/10
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | RM/92000/M | |
Bore | 50mm | |
Action | Double | |
Stroke | 10mm | |
Pneumatic Connection | G 1/8 | |
Cushioning Type | Not Cushioned | |
Height | 63mm | |
Diameter | 50mm | |
Width | 63mm | |
Maximum Operating Pressure | 10 bar | |
Test Weight | 0.45 kg (at 0 mm) | |
Stroke Interval Weight | 0.18 kg (at 5 mm) | |
Minimum Operating Temperature | -5°C | |
Weight | 810g | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series RM/92000/M | ||
Bore 50mm | ||
Action Double | ||
Stroke 10mm | ||
Pneumatic Connection G 1/8 | ||
Cushioning Type Not Cushioned | ||
Height 63mm | ||
Diameter 50mm | ||
Width 63mm | ||
Maximum Operating Pressure 10 bar | ||
Test Weight 0.45 kg (at 0 mm) | ||
Stroke Interval Weight 0.18 kg (at 5 mm) | ||
Minimum Operating Temperature -5°C | ||
Weight 810g | ||
Maximum Operating Temperature +80°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
IMI Norgren Pneumatic Compact Cylinder, G1/8 Thread, 1 to 10 Bar Operating Pressure Range - RM/92000/M Series - RM/92050/M/10
Want to turn the force of compressed air into linear motion? This pneumatic compact cylinder from IMI Norgren does the trick. It's a double-acting unit with two open ports to let air in and out, which pushes the piston rod back and forth precisely and consistently. Thanks to its rugged stainless steel body, the unit shrugs off impact and corrosion. The threaded design makes it a breeze to quickly attach to a port, without reaching for your toolkit.
Features & Benefits
• Double-acting design eliminates the need for a spring return mechanism
• Safe to use in varied environments, thanks to operating pressure range between 1 and 10 bar
• Hardwearing anodised aluminium alloy housing resists impact and abrasion
• Safe to use in varied environments, thanks to operating pressure range between 1 and 10 bar
• Hardwearing anodised aluminium alloy housing resists impact and abrasion
Applications
• Bottling plants
• Medical technology
• Railway applications
• Industrial kitchens
• Medical technology
• Railway applications
• Industrial kitchens
What temperatures can I use this pneumatic compact cylinder in?
It has a broad operating temperature range between -5°C and +80°C, so it can withstand harsh industrial environments.
Is the cylinder sealed?
Yes, it's sealed to help keep the air from leaking out. As the seals are made from PUR and NBR, they offer effective thermal resistance.
