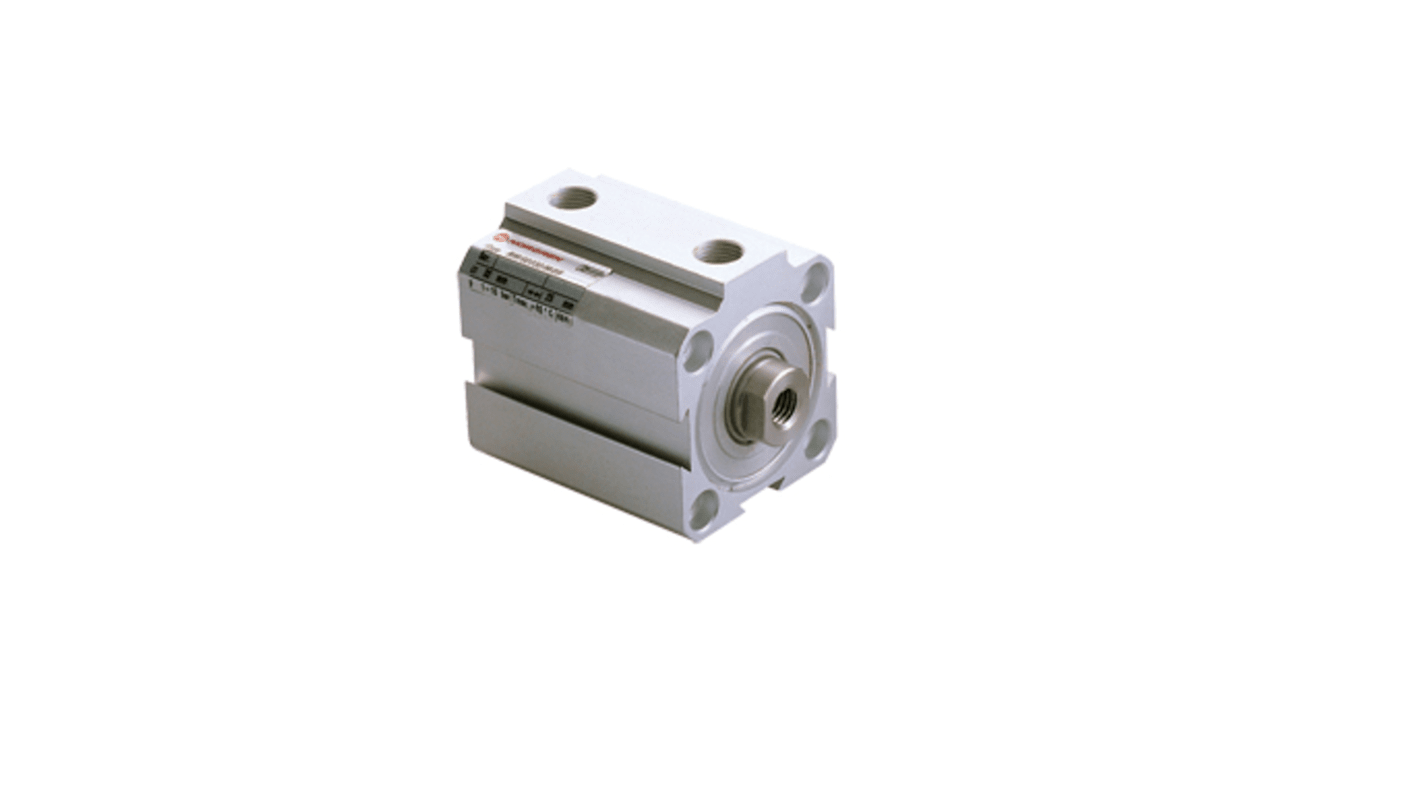

Norgren Pneumatic Compact Cylinder - RM/92032, 32mm Bore, 10mm Stroke, RM/92000/M Series, Double Acting
- RS Stock No.:
- 156-8068
- Mfr. Part No.:
- RM/92032/M/10
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£68.95
(exc. VAT)
£82.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £68.95 |
5 + | £66.80 |
*price indicative
- RS Stock No.:
- 156-8068
- Mfr. Part No.:
- RM/92032/M/10
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | RM/92000/M | |
Model Number p | RM/92032 | |
Bore | 32mm | |
Stroke | 10mm | |
Action | Double | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Not Cushioned | |
Dimensions | 45.5 x 45 x 45mm | |
Width | 45mm | |
Length | 45.5mm | |
Height | 45mm | |
Maximum Operating Pressure | 10 bar | |
Minimum Operating Temperature | -5°C | |
Weight | 490g | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series RM/92000/M | ||
Model Number p RM/92032 | ||
Bore 32mm | ||
Stroke 10mm | ||
Action Double | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Not Cushioned | ||
Dimensions 45.5 x 45 x 45mm | ||
Width 45mm | ||
Length 45.5mm | ||
Height 45mm | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -5°C | ||
Weight 490g | ||
Maximum Operating Temperature +80°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
IMI Norgren Pneumatic Compact Cylinder, Magnetic Piston Type, G1/8 Port Connection - RM/92000/M Series - RM/92032/M/10
Put your machinery in motion with this pneumatic compact cylinder from IMI Norgren. It's a double-acting unit, which means there's an open port at each end. As air flows in and out, it pushes the piston rod back and forth to generate the accurate linear movement needed for precision tasks. With its broad operating temperature range between -5°C and +80°C, you can rest assured that this cylinder will stand up to the rigours of harsh environments.
Features & Benefits
• Magnetic piston design enables position tracking without direct physical contact
• Rugged anodised aluminium alloy barrel and end caps resist mechanical wear
• Robust PUR seals provide thermal resistance for durability
• Stainless steel piston stands up to corrosion
• Rugged anodised aluminium alloy barrel and end caps resist mechanical wear
• Robust PUR seals provide thermal resistance for durability
• Stainless steel piston stands up to corrosion
Applications
• Transmission systems
• Printing presses
• Conveyor belts
• Energy industry
• Printing presses
• Conveyor belts
• Energy industry
What operating pressure can this cylinder handle?
As this cylinder has an operating pressure range between 1 and 10 bar, it's a suitable option for low-pressure settings.
How do I mount this cylinder?
Mounting the unit is straightforward, as you just screw its threaded end into a G1/8 port connection without the need for complex tools.
