Norgren Pneumatic Compact Cylinder - 32mm Bore, 15mm Stroke, RM/92000/M Series, Double Acting
- RS Stock No.:
- 509-7992
- Mfr. Part No.:
- RM/92032/M/15
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£71.91
(exc. VAT)
£86.29
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 999,999,987 unit(s) shipping from 07 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £71.91 |
5 + | £69.75 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
- RS Stock No.:
- 509-7992
- Mfr. Part No.:
- RM/92032/M/15
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | RM/92000/M | |
Bore | 32mm | |
Stroke | 15mm | |
Action | Double | |
Port Connection | G 1/8 | |
Cushioning Type | Not Cushioned | |
Dimensions | 50.5 x 45 x 45mm | |
Width | 45mm | |
Length | 50.5mm | |
Height | 45mm | |
Maximum Operating Pressure | 10 bar | |
Minimum Operating Temperature | -5°C | |
Weight | 610g | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series RM/92000/M | ||
Bore 32mm | ||
Stroke 15mm | ||
Action Double | ||
Port Connection G 1/8 | ||
Cushioning Type Not Cushioned | ||
Dimensions 50.5 x 45 x 45mm | ||
Width 45mm | ||
Length 50.5mm | ||
Height 45mm | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -5°C | ||
Weight 610g | ||
Maximum Operating Temperature +80°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ

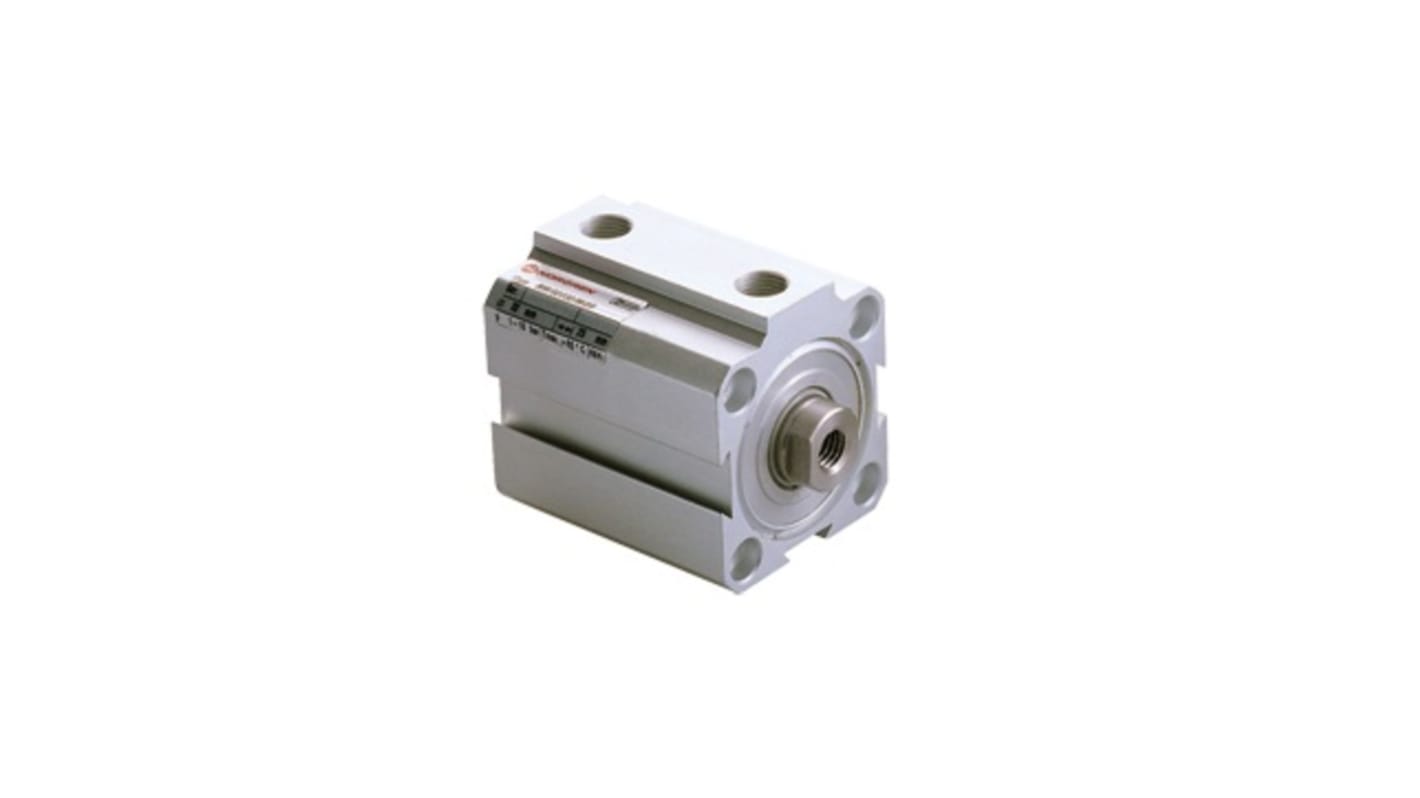

IMI Norgren Pneumatic Compact Cylinder, G1/8 Port Size, Magnetic Piston - RM/92000/M Series - RM/92032/M/15
Finding it a push to fit an actuator into your system? It's no sweat with this pneumatic compact cylinder from IMI Norgren. At just 50.5mm long, this mini marvel packs a punch and is a cinch to install in tight spaces. Thanks to its double-acting design, it's capable of moving loads in two directions, so it's just the thing for precision picking tasks. As it has a magnetic rod, you can link it with a proximity sensor (218-0616), giving you pinpoint positioning control.
Features & Benefits
• PUR seals prevent leaks to maintain system integrity
• Standard G1/8 port size makes it straightforward to connect with existing equipment
• Weight of 0.61kg minimises system strain
• Anodised aluminium alloy barrel and stainless steel rod are corrosion-resistant, for long-term performance
• Operating temperature range between -5°C and +80°C, so it's reliable in harsh conditions
• Standard G1/8 port size makes it straightforward to connect with existing equipment
• Weight of 0.61kg minimises system strain
• Anodised aluminium alloy barrel and stainless steel rod are corrosion-resistant, for long-term performance
• Operating temperature range between -5°C and +80°C, so it's reliable in harsh conditions
Applications
• Filling and packaging systems
• Electronics assembly
• Materials handling
• Machine tools
• Electronics assembly
• Materials handling
• Machine tools
Can I use this pneumatic compact cylinder with low-pressure applications?
Yes. This cylinder functions without a hiccup between 1 and 10 bar, so it's a good option for low-pressure applications.
