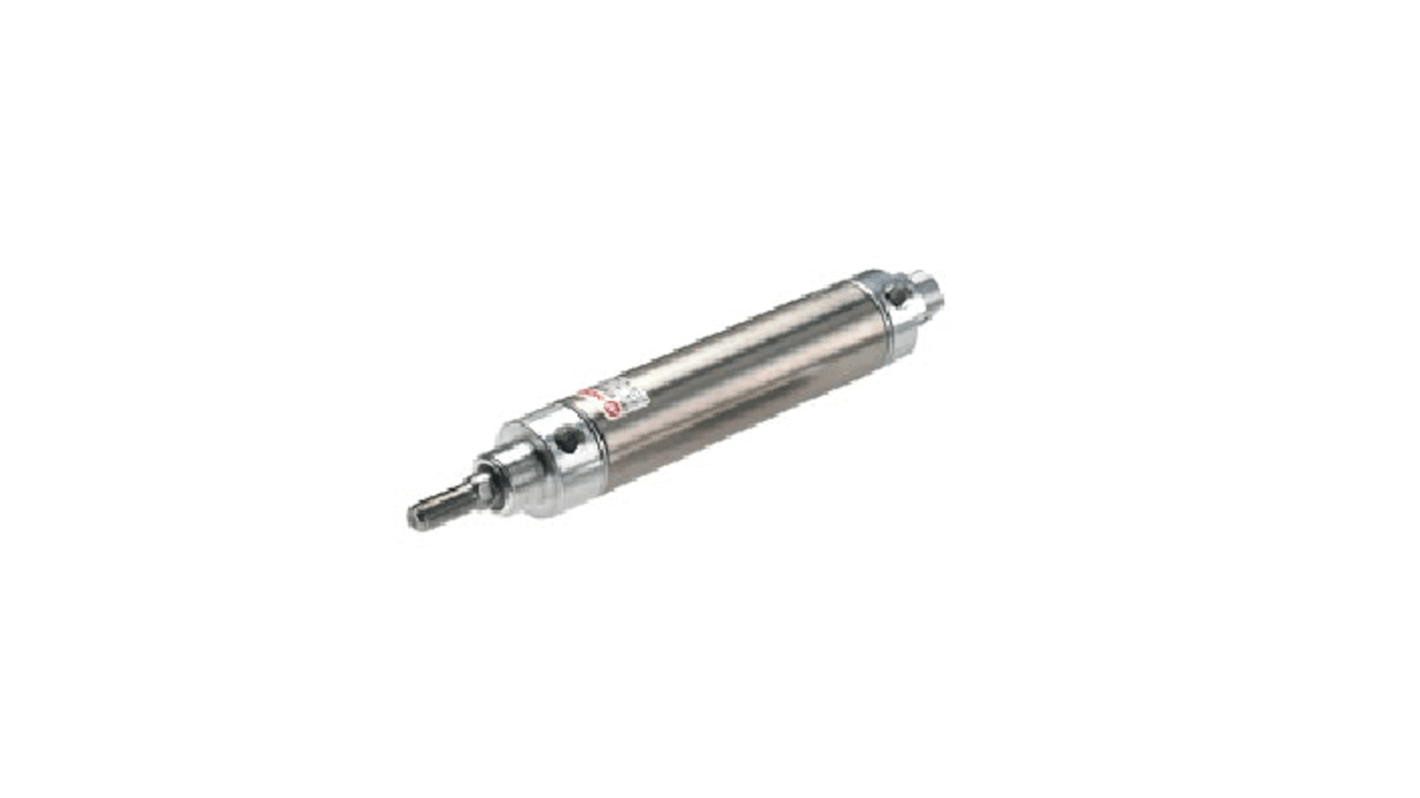

Norgren Pneumatic Roundline Cylinder - 25mm Bore, 50 mm RT/57210/M/25 Series, Double Acting Acting
- RS Stock No.:
- 208-4426
- Mfr. Part No.:
- RT/57225/M/50
- Brand:
- Norgren
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£78.32
(exc. VAT)
£93.98
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 9 unit(s) shipping from 10 August 2026
- Plus 1 unit(s) shipping from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £78.32 |
| 5 - 9 | £75.91 |
| 10 + | £73.47 |
*price indicative
- RS Stock No.:
- 208-4426
- Mfr. Part No.:
- RT/57225/M/50
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Norgren | |
| Series | RT/57210/M/25 | |
| Product Type | Pneumatic Roundline Cylinder | |
| Bore Diameter | 25mm | |
| Action Type | Double Acting | |
| Mount Type | Integral Eye | |
| Cushioning Type | Buffer | |
| Body Material | Stainless Steel | |
| Length | 128.5mm | |
| Stroke Length | 50mm | |
| Maximum Operating Pressure | 10 bar | |
| Piston Rod Thread Size | 1/4 in Rc | |
| Piston Rod Gender | Male | |
| Rod Type | Single | |
| Minimum Operating Temperature | -10°C | |
| Piston Rod Thread Standard | BSPP | |
| Maximum Operating Temperature | 80°C | |
| Weight | 120g | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Norgren | ||
Series RT/57210/M/25 | ||
Product Type Pneumatic Roundline Cylinder | ||
Bore Diameter 25mm | ||
Action Type Double Acting | ||
Mount Type Integral Eye | ||
Cushioning Type Buffer | ||
Body Material Stainless Steel | ||
Length 128.5mm | ||
Stroke Length 50mm | ||
Maximum Operating Pressure 10 bar | ||
Piston Rod Thread Size 1/4 in Rc | ||
Piston Rod Gender Male | ||
Rod Type Single | ||
Minimum Operating Temperature -10°C | ||
Piston Rod Thread Standard BSPP | ||
Maximum Operating Temperature 80°C | ||
Weight 120g | ||
Standards/Approvals No | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
IMI Norgren Double-Acting Roundline Cylinder, 25mm Bore, 50mm Stroke - RT/57210/M/25 Series - RT/57225/M/50
Looking for a reliable and durable cylinder to use in your pneumatic system? Opt for this double-action roundline cylinder from IMI Norgren, with its high-strength design and robust double-crimped end caps. Buffer cushioning serves to prolong the life of the cylinder, while low-friction seals have a long life, so they keep performing efficiently throughout the unit's working life. A standard magnetic piston helps deliver control system versatility. Compact dimensions, with a length of 128.5mm and a diameter of 26.5mm, saves 20% of space over the basic length of a corresponding ISO/VDMA cylinder.
Features & Benefits
• Operating temperature range of -10°C to +80°C makes it suitable for harsh environments
• Maximum operating pressure of 10 bar for use with demanding applications
• Stainless steel piston rod resists corrosion in damp or humid conditions
Applications
• Industrial processing
• Production lines
• Positioning lightweight objects
What's a double-acting cylinder?
A double-acting cylinder like this one has two ports, so compressed air can be used to move the piston back and forth. It offers a greater degree of control than a single-acting cylinder, which has just a single port and uses a spring to return the piston.
