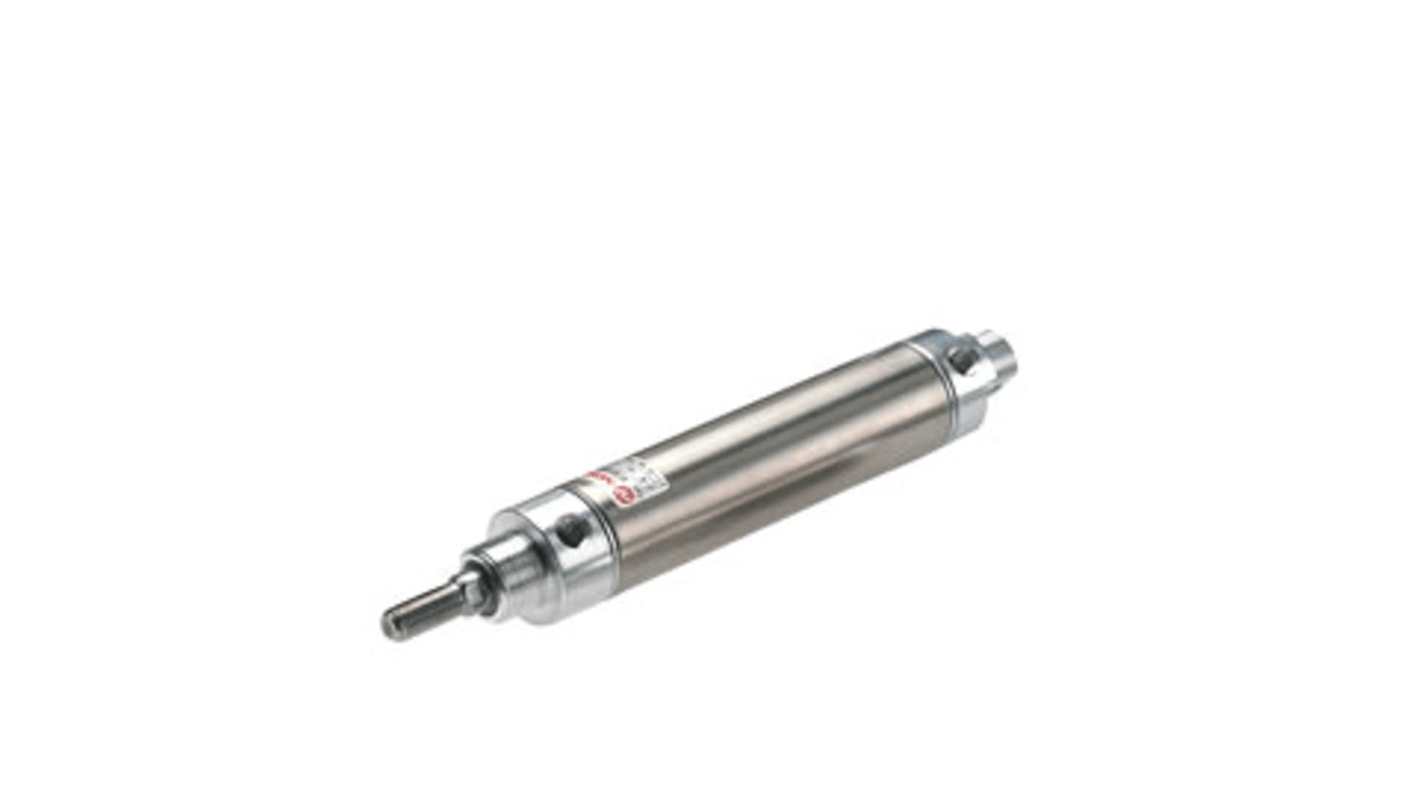

Norgren Pneumatic Piston Rod Cylinder - 50mm Bore, 50mm Stroke, RT/57210/M/25 Series, Double Acting
- RS Stock No.:
- 208-4549
- Mfr. Part No.:
- RT/57250/M/50
- Brand:
- Norgren
Bulk discount available
Subtotal (1 unit)*
£140.00
(exc. VAT)
£168.00
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
- Plus 16 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £140.00 |
5 - 9 | £135.65 |
10 + | £131.32 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£120.32
(exc. VAT)
£144.38
(inc. VAT)
- RS Stock No.:
- 208-4549
- Mfr. Part No.:
- RT/57250/M/50
- Brand:
- Norgren
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Norgren | |
Manufacturer Series | RT/57210/M/25 | |
Stroke | 50mm | |
Bore | 50mm | |
Action | Double | |
Port Connection | Rc 1/4 | |
Cushioning Type | Buffer | |
Dimensions | 52.5 (Dia.) x 147mm | |
Length | 147mm | |
Diameter | 52.5mm | |
Maximum Operating Pressure | 10 bar | |
Absolute Maximum Pressure | 10bar | |
Minimum Operating Temperature | -10°C | |
Maximum Operating Temperature | +80°C | |
Weight | 545g | |
Select all | ||
---|---|---|
Brand Norgren | ||
Manufacturer Series RT/57210/M/25 | ||
Stroke 50mm | ||
Bore 50mm | ||
Action Double | ||
Port Connection Rc 1/4 | ||
Cushioning Type Buffer | ||
Dimensions 52.5 (Dia.) x 147mm | ||
Length 147mm | ||
Diameter 52.5mm | ||
Maximum Operating Pressure 10 bar | ||
Absolute Maximum Pressure 10bar | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature +80°C | ||
Weight 545g | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CZ
IMI Norgren Pneumatic Piston Rod Cylinder, Stainless Steel, Rc1/4 Port Size - Roundline Series - RT/57250/M/50
Need a way to produce smooth bi-directional motions in your compressed air system? Choose this pneumatic piston rod cylinder from IMI Norgren. A maximum stroke range of 50mm means you can trust it to provide short, linear movements for positioning, ejecting or clamping smaller components. As a double-action piston, it can move in either direction. This is a suitably robust option for demanding industrial settings thanks to the use of high-strength martensitic and austenitic stainless steel. An operating pressure range between 1 and 10 bar makes it practical for low-pressure tasks.
Features & Benefits
• Footprint of Roundline Series is 20% smaller than standard ISO cylinders, so easy to fit into tight spaces
• Operating temperature range of -10ºC to +80ºC means it suits harsh settings
• Magnetic piston design enables contactless detection with proximity sensors, so you can control action remotely
• Double-crimped aluminium end cap seals cylinder inside against environmental contaminants
• Operating temperature range of -10ºC to +80ºC means it suits harsh settings
• Magnetic piston design enables contactless detection with proximity sensors, so you can control action remotely
• Double-crimped aluminium end cap seals cylinder inside against environmental contaminants
Applications
• Automotive manufacture
• Industrial production lines
• Mining equipment
• Industrial production lines
• Mining equipment
What's the benefit of this product's seals?
This cylinder comes with polyurethane and nitrile rubber ring wipers that provide optimal buffer cushioning for reduced friction piston movements and shielding against water. This means you can be assured the product will last.
