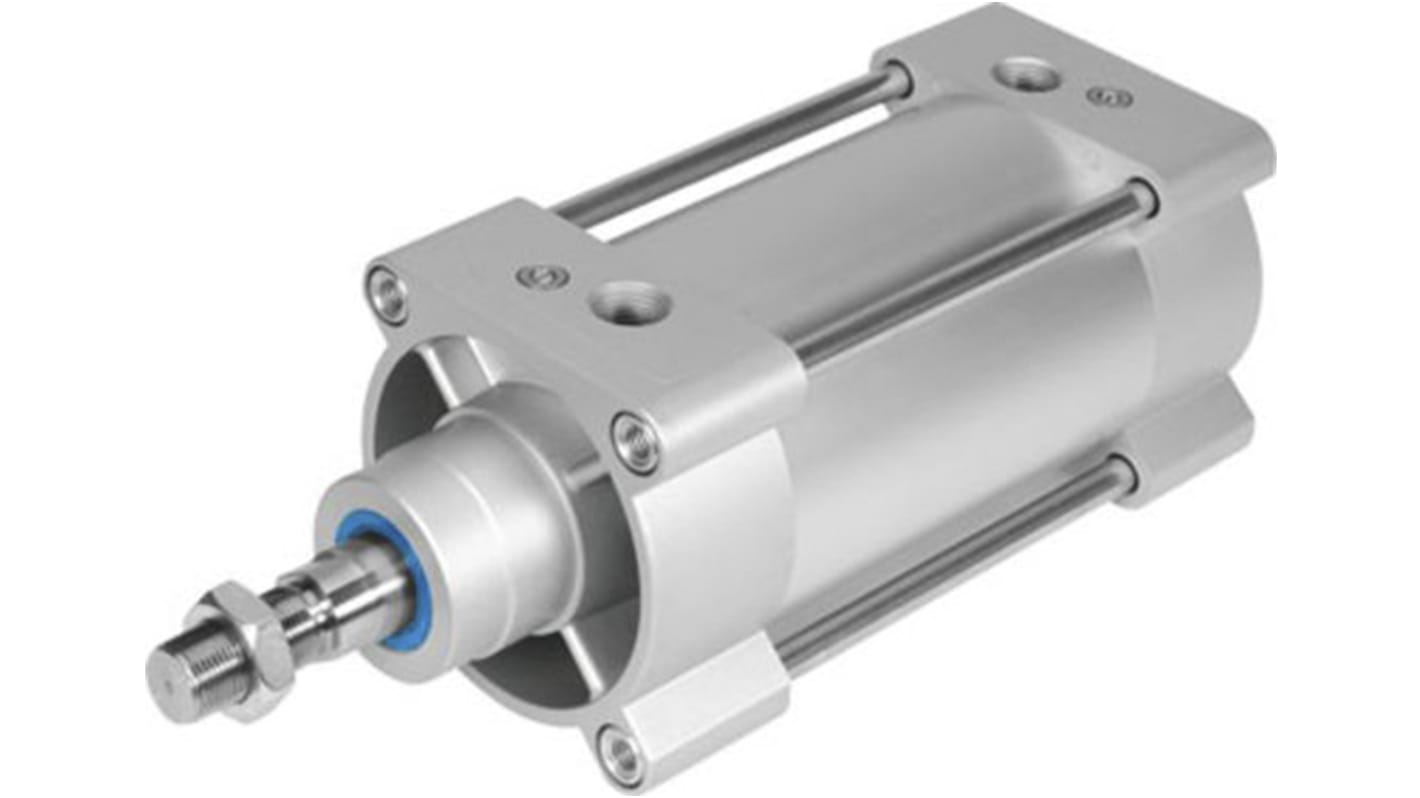

Festo Pneumatic Cylinder - 1646779 80 mm Bore, 250 mm DSBG-80-250-PPVA-N3 Series, Double Acting Acting
- RS Stock No.:
- 203-6458
- Mfr. Part No.:
- DSBG-80-250-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£341.81
(exc. VAT)
£410.17
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £341.81 |
*price indicative
- RS Stock No.:
- 203-6458
- Mfr. Part No.:
- DSBG-80-250-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Series | DSBG-80-250-PPVA-N3 | |
| Product Type | Pneumatic Cylinder | |
| Model Number | 1646779 | |
| Bore Size | 80mm | |
| Action Type | Double Acting | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Die Cast Aluminium | |
| Stroke Length | 250mm | |
| Maximum Operating Pressure | 12 bar | |
| Rod Type | Tie | |
| Piston Rod Gender | Male | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Thread Size | M20 x 1.5 | |
| Maximum Operating Temperature | 80°C | |
| Standards/Approvals | ISO 15552, ISO8573-1:2010 (7:4:4), RoHS | |
| Weight | 2660g | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Series DSBG-80-250-PPVA-N3 | ||
Product Type Pneumatic Cylinder | ||
Model Number 1646779 | ||
Bore Size 80mm | ||
Action Type Double Acting | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Die Cast Aluminium | ||
Stroke Length 250mm | ||
Maximum Operating Pressure 12 bar | ||
Rod Type Tie | ||
Piston Rod Gender Male | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Thread Size M20 x 1.5 | ||
Maximum Operating Temperature 80°C | ||
Standards/Approvals ISO 15552, ISO8573-1:2010 (7:4:4), RoHS | ||
Weight 2660g | ||
- COO (Country of Origin):
- HU
The Festo ISO cylinder has 250 mm stroke and 80 mm piston diameter. It is standards-based cylinder, double-acting based on ISO 15552. The bellows protects the piston rod, the seal and the bearing from the effects of a wide range of media, which has a positive impact on the service life of these components.
Stroke 250 mm
Piston diameter 80 mm
Piston rod thread M20x1,5
Cushioning PPV: Pneumatic cushioning adjustable at both ends
Assembly position Any
