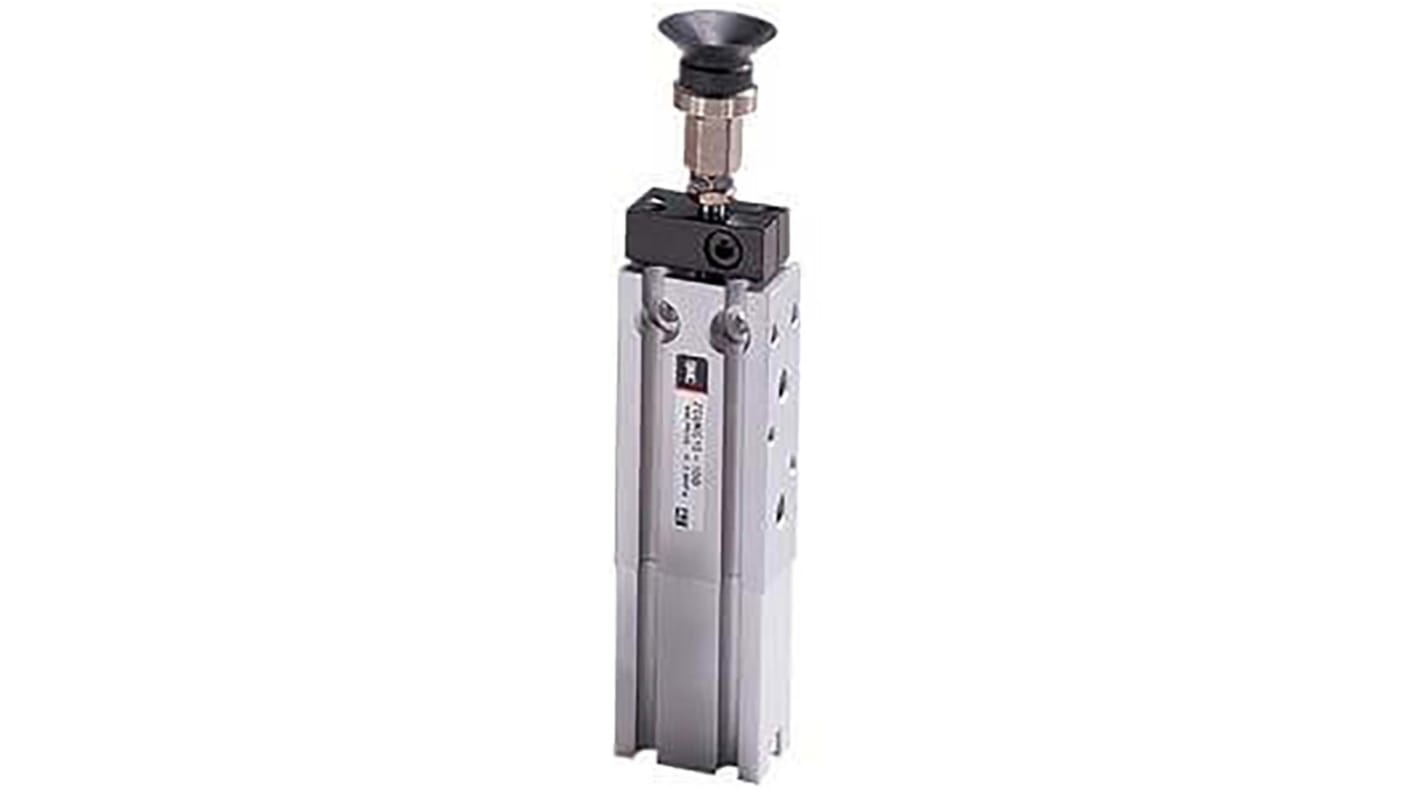

SMC Pneumatic Piston Rod Cylinder - 32mm Bore, 25mm Stroke, ZCUK Series, Double Acting
- RS Stock No.:
- 196-4542
- Mfr. Part No.:
- ZCDUKC32-25D
- Brand:
- SMC
Currently unavailable
Sorry, we don't know when this will be back in stock.
- RS Stock No.:
- 196-4542
- Mfr. Part No.:
- ZCDUKC32-25D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | ZCUK | |
Action | Double | |
Bore | 32mm | |
Stroke | 25mm | |
Port Connection | Rc 1/8 | |
Cushioning Type | Rubber Bumper | |
Dimensions | 141 x 40 x 62mm | |
Length | 141mm | |
Height | 62mm | |
Width | 40mm | |
Absolute Maximum Pressure | 1.05MPa | |
Maximum Operating Pressure | 0.7 MPa | |
Maximum Operating Temperature | +60°C | |
Minimum Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series ZCUK | ||
Action Double | ||
Bore 32mm | ||
Stroke 25mm | ||
Port Connection Rc 1/8 | ||
Cushioning Type Rubber Bumper | ||
Dimensions 141 x 40 x 62mm | ||
Length 141mm | ||
Height 62mm | ||
Width 40mm | ||
Absolute Maximum Pressure 1.05MPa | ||
Maximum Operating Pressure 0.7 MPa | ||
Maximum Operating Temperature +60°C | ||
Minimum Operating Temperature -10°C | ||
- COO (Country of Origin):
- JP
The ZCUK series is a non-rotating free mount cylinder for vacuum applications. The ZCUK was created by providing a vacuum passage in the rod of the CUK cylinder to enable a vacuum pad to be installed on the end of the rod. A guide is provided as standard equipment. Vacuum pads are available with pad diameters of ø2 to ø50. Cap or rod piping is available to the rod side. Series ZCUK is available in 5 bore diameters.
