SMC Pneumatic Compact Cylinder - 32mm Bore, 25mm Stroke, CUK Series, Double Acting
- RS Stock No.:
- 305-6113
- Mfr. Part No.:
- ECDUK32-25D
- Brand:
- SMC

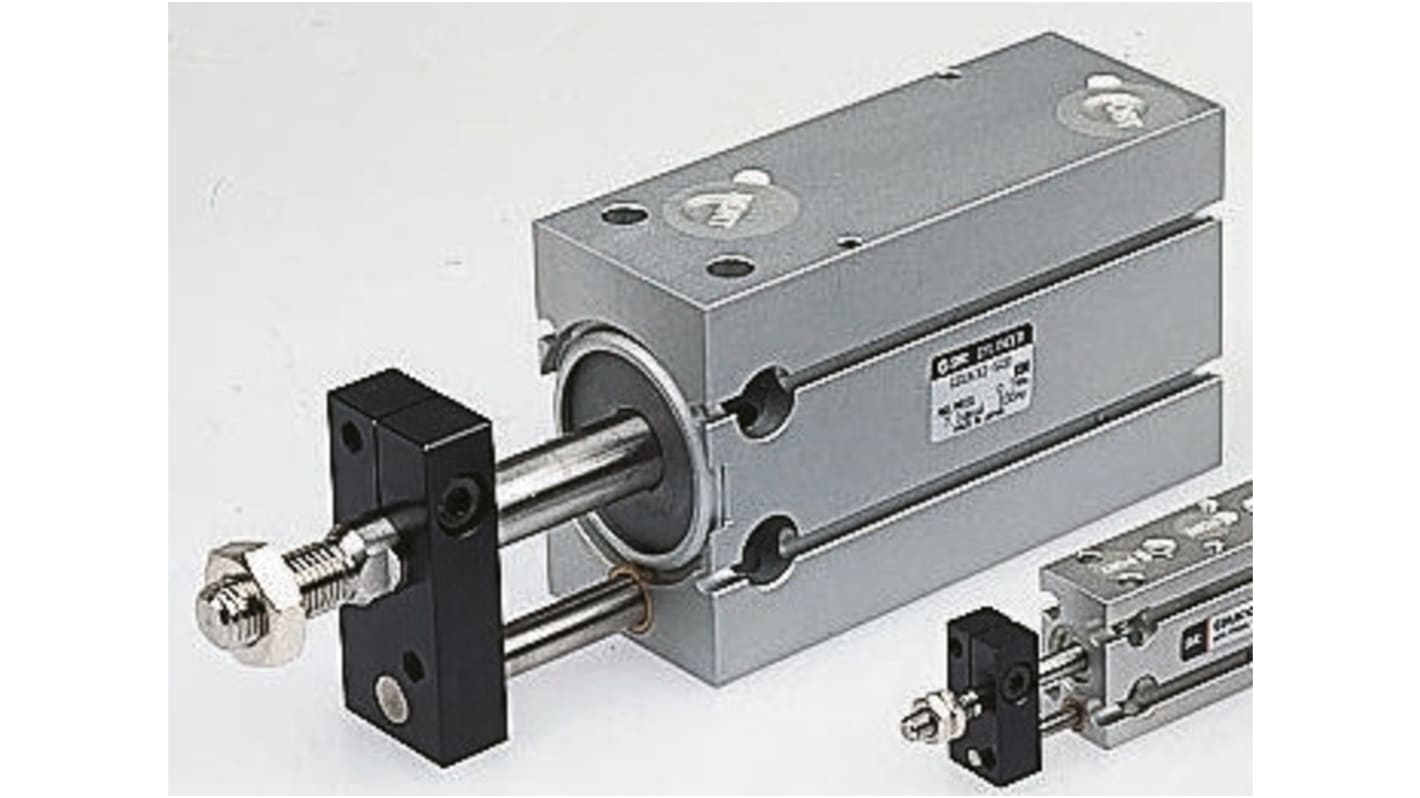

Image representative of range
Bulk discount available
Subtotal (1 unit)*
£105.01
(exc. VAT)
£126.01
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £105.01 |
5 + | £98.81 |
*price indicative
- RS Stock No.:
- 305-6113
- Mfr. Part No.:
- ECDUK32-25D
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | SMC | |
Manufacturer Series | CUK | |
Bore | 32mm | |
Action | Double | |
Stroke | 25mm | |
Port Connection | Rc 1/8 | |
Cushioning Type | Rubber | |
Dimensions | 109 x 40 x 62mm | |
Width | 40mm | |
Height | 62mm | |
Length | 109mm | |
Absolute Maximum Pressure | 1.5MPa | |
Maximum Operating Pressure | 0.7 MPa | |
Maximum Operating Temperature | +70°C | |
Weight | 435g | |
Minimum Operating Temperature | -10°C | |
Select all | ||
---|---|---|
Brand SMC | ||
Manufacturer Series CUK | ||
Bore 32mm | ||
Action Double | ||
Stroke 25mm | ||
Port Connection Rc 1/8 | ||
Cushioning Type Rubber | ||
Dimensions 109 x 40 x 62mm | ||
Width 40mm | ||
Height 62mm | ||
Length 109mm | ||
Absolute Maximum Pressure 1.5MPa | ||
Maximum Operating Pressure 0.7 MPa | ||
Maximum Operating Temperature +70°C | ||
Weight 435g | ||
Minimum Operating Temperature -10°C | ||
RoHS Status: Exempt
- COO (Country of Origin):
- FR
CDUK Series Universal Assembly Cylinders
Range of double acting cylinders with anti-rotation rod.
Rectangular design for universal assembly either flat or side.
End of stroke damping by rubber washer on both sides.
Magnetic piston on all versions.
Sensor with LED available as an option.
Rectangular design for universal assembly either flat or side.
End of stroke damping by rubber washer on both sides.
Magnetic piston on all versions.
Sensor with LED available as an option.

CDU 10 - 32mm Diameter
A range of double acting, free-mount rectangular cylinders, with piston rod operation. Available as either standard or non-rotating. Rectangular design allows for precise and direct mounting. Each cylinder has a magnetic piston as standard.
