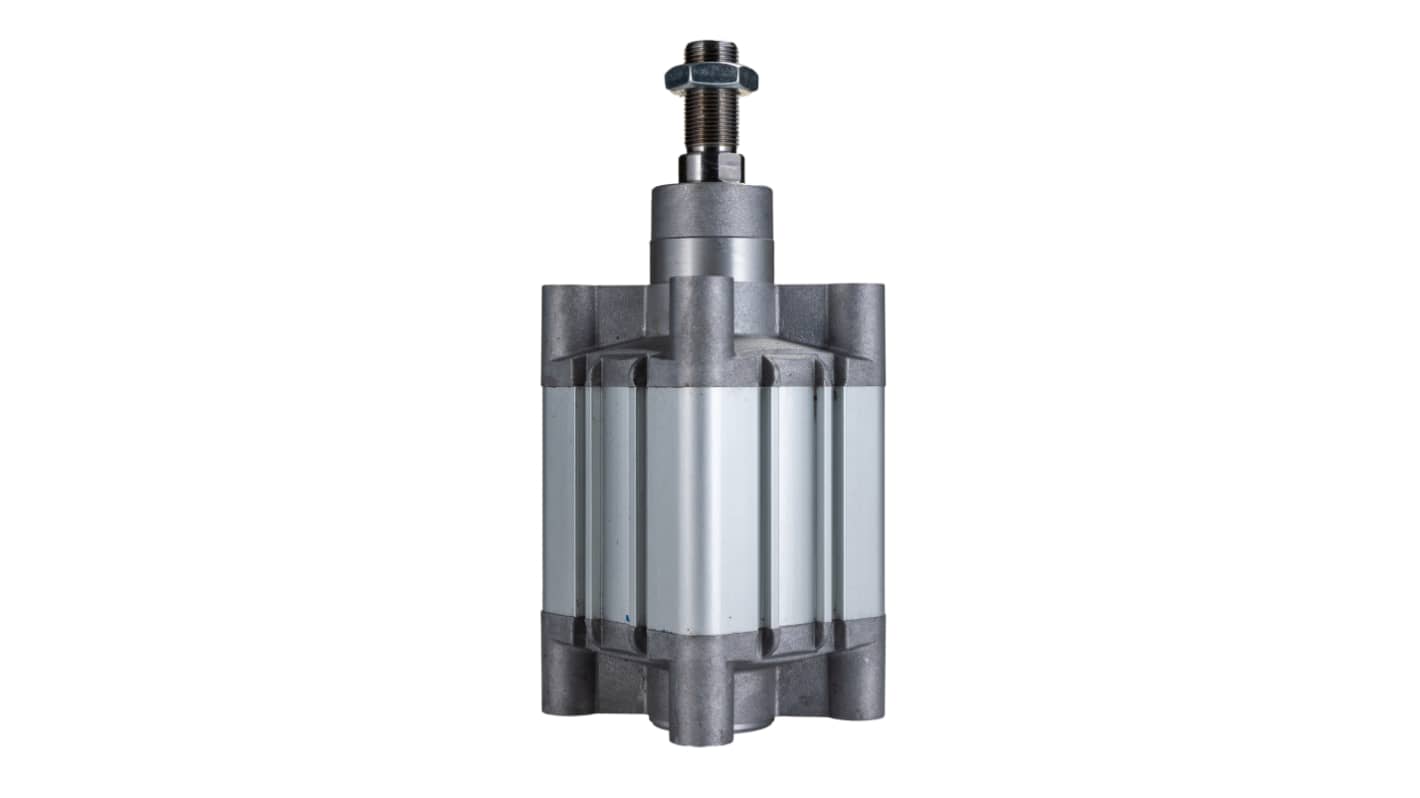

RS PRO Double Acting Cylinder - 100 mm Bore, 80 mm X Series, Double Acting Acting

RS Stock No.:: 176-1663
Brand:: RS PRO

RS PRO Double Acting Cylinder - 100 mm Bore, 80 mm X Series, Double Acting Acting

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

RS PRO Pneumatic Compact Cylinder - 100 mm Bore, 80 mm W Series, Double Acting Acting

RS Stock No.: 176-1709

Each

£244.72

(exc. VAT)

£293.66

(inc. VAT)

RS Stock No.:: 176-1663
Brand:: RS PRO

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Series	X
	Product Type	Double Acting Cylinder
	Action Type	Double Acting
	Bore Size	100 mm
	Mount Type	Both Ends Tapped
	Cushioning Type	Cushioned
	Body Material	Stainless Steel
	Length	269.5mm
	Stroke Length	80mm
	Maximum Operating Pressure	10 bar
	Piston Rod Thread Size	M20
	Piston Rod Thread Standard	Metric
	Minimum Operating Temperature	0°C
	Rod Type	Double
	Piston Rod Gender	Female
	Maximum Operating Temperature	80°C
	Height	111mm
	Standards/Approvals	RS PRO Seal of Approval
	Width	111 mm

	Select all
	Brand RS PRO
	Series X
	Product Type Double Acting Cylinder
	Action Type Double Acting
	Bore Size 100 mm
	Mount Type Both Ends Tapped
	Cushioning Type Cushioned
	Body Material Stainless Steel
	Length 269.5mm
	Stroke Length 80mm
	Maximum Operating Pressure 10 bar
	Piston Rod Thread Size M20
	Piston Rod Thread Standard Metric
	Minimum Operating Temperature 0°C
	Rod Type Double
	Piston Rod Gender Female
	Maximum Operating Temperature 80°C
	Height 111mm
	Standards/Approvals RS PRO Seal of Approval
	Width 111 mm

COO (Country of Origin):: IT

RS PRO Pneumatic Actuators - Double Acting Cushioned Magnetic

RS PRO's double-acting pneumatic actuators are designed to provide exceptional precision and durability. These sophisticated actuators transform compressed air into smooth mechanical motion, making them perfect for applications that require precise control and dependable performance.

Why Would You Choose This Actuator?

Our double-acting cylinders utilise air pressure to move the piston in both directions, ensuring efficient and controlled motion. The built-in cushioning reduces impact and noise at the end of the stroke, enhancing the actuator's lifespan and providing smoother operation. Additionally, the integrated magnet allows external magnetic sensors to detect the piston's position, making it ideal for feedback in control systems.

Features and Benefits

Double Acting Cylinder

ISO 15552

Integrated magnetic

Durable and resistant to corrosion, ensuring long-lasting performance.

Socket Head Screw with Female Thread

Regulating screw allows for adjustable end-position cushioning.

Slot for Proximity Sensor

Multiple variants available

Applications

These versatile actuators are commonly used in industrial automation for tasks that demand precision and smooth operation. Whether in manufacturing, assembly lines, or robotics, RS PRO pneumatic actuators deliver exceptional performance and reliability.
