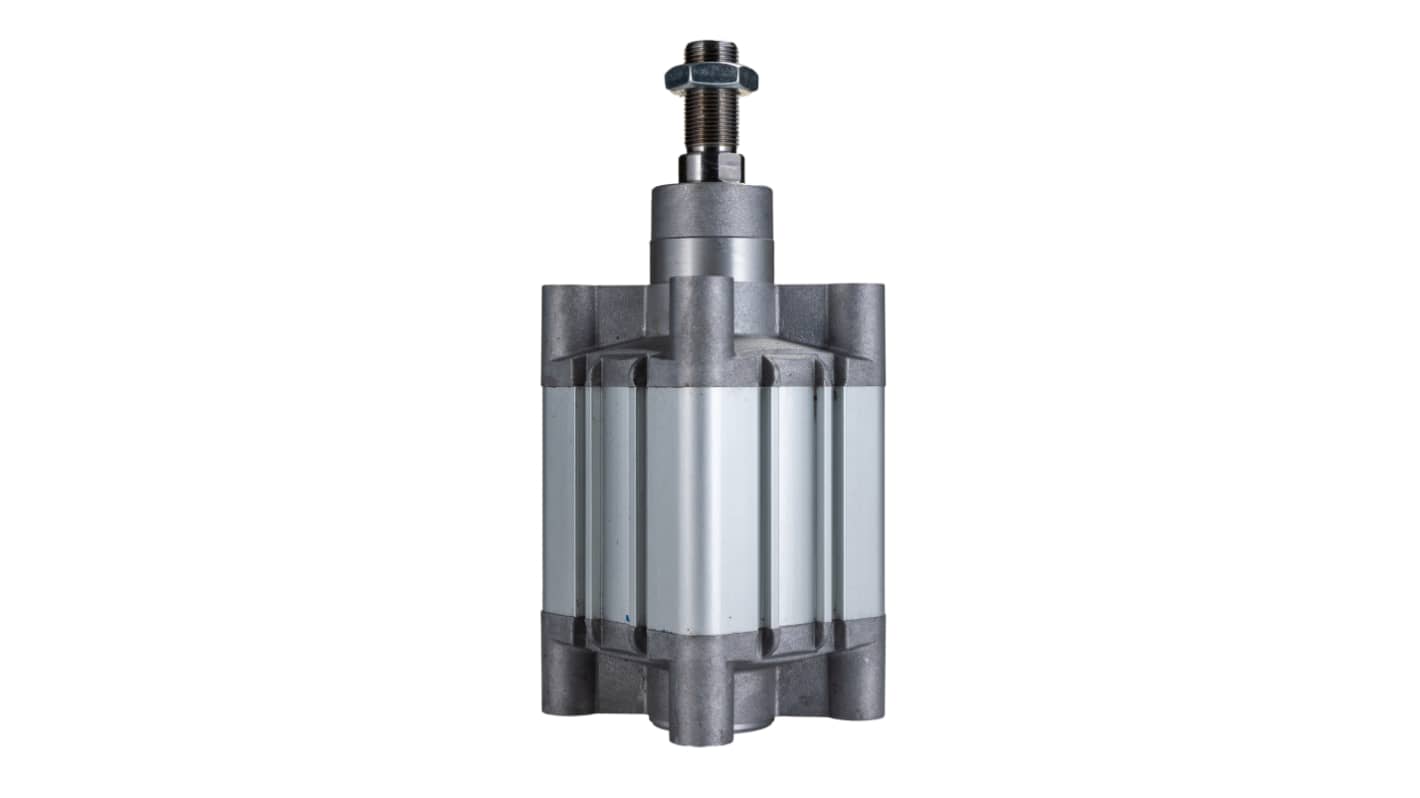

RS PRO Double Acting Cylinder - 100mm Bore, 50mm Stroke, X Series, Double Acting

View this category
Currently unavailable
We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO Pneumatic Compact Cylinder - 100mm Bore, 50mm Stroke, Double Acting
RS Stock No.
176-1710

Each

£228.50

(exc. VAT)

£274.20

(inc. VAT)

RS Stock No.:
176-1664
Brand:
RS PRO
Find similar products by selecting one or more attributes.
Select all

Brand

RS PRO

Manufacturer Series

X

Action

Double

Bore

100mm

Stroke

50mm

Port Connection

G 1/2

Cushioning Type

Cushioned

Dimensions

239.5 x 111 x 111mm

Width

111mm

Height

111mm

Length

239.5mm

Maximum Operating Pressure

10 bar

ISO Standard

15552

VDMA Standard

6431

Minimum Operating Temperature

0°C

Maximum Operating Temperature

+80°C

COO (Country of Origin):
IT

RS PRO Pneumatic Actuators - Double Acting Cushioned Magnetic


RS PRO's double-acting pneumatic actuators are designed to provide exceptional precision and durability. These sophisticated actuators transform compressed air into smooth mechanical motion, making them perfect for applications that require precise control and dependable performance.

Why Would You Choose This Actuator?


Our double-acting cylinders utilise air pressure to move the piston in both directions, ensuring efficient and controlled motion. The built-in cushioning reduces impact and noise at the end of the stroke, enhancing the actuator's lifespan and providing smoother operation. Additionally, the integrated magnet allows external magnetic sensors to detect the piston's position, making it ideal for feedback in control systems.

Features and Benefits


  • Double Acting Cylinder

  • ISO 15552

  • Integrated magnetic

  • Durable and resistant to corrosion, ensuring long-lasting performance.

  • Socket Head Screw with Female Thread

  • Regulating screw allows for adjustable end-position cushioning.

  • Slot for Proximity Sensor

  • Multiple variants available

Applications


These versatile actuators are commonly used in industrial automation for tasks that demand precision and smooth operation. Whether in manufacturing, assembly lines, or robotics, RS PRO pneumatic actuators deliver exceptional performance and reliability.
