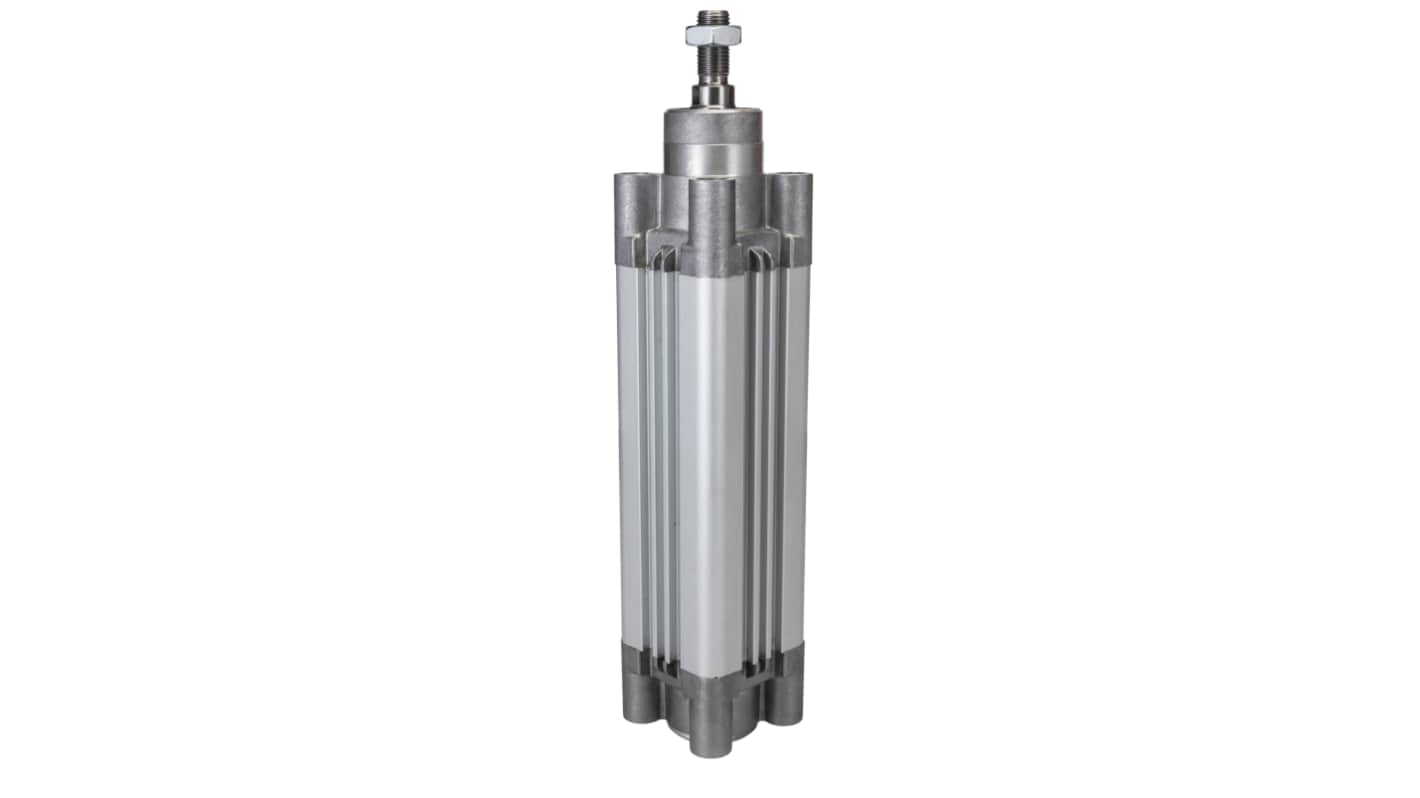

RS PRO ISO Standard Cylinder - 100mm Bore, 250mm Stroke, Double Acting
- RS Stock No.:
- 176-1713
- Brand:
- RS PRO
Available to back order for despatch 14/05/2024
Added
Price Each
£265.14
(exc. VAT)
£318.17
(inc. VAT)
| Units | Per unit |
| 1 + | £265.14 |
- RS Stock No.:
- 176-1713
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details
RS Pro double-acting pneumatic cylinders according to ISO 15552 suitable for
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
Specifications
Attribute | Value |
|---|---|
| Stroke | 250mm |
| Bore | 100mm |
| Action | Double |
| Length | 439.5mm |
| Cushioning Type | Cushioned |
| Dimensions | 439.5 x 111 x 111mm |
| Width | 111mm |
| Maximum Operating Pressure | 10 bar |
| Height | 111mm |
| VDMA Standard | 6431 |
| ISO Standard | 15552 |
| Minimum Operating Temperature | 0°C |
| Maximum Operating Temperature | +80°C |
- RS Stock No.:
- 176-1713
- Brand:
- RS PRO
