- RS Stock No.:
- 176-1653
- Brand:
- RS PRO
3 In stock - FREE next working day delivery available
Added
Price Each
£118.99
(exc. VAT)
£142.79
(inc. VAT)
Units | Per unit |
1 + | £118.99 |
- RS Stock No.:
- 176-1653
- Brand:
- RS PRO
Legislation and Compliance
- COO (Country of Origin):
- IT
Product Details

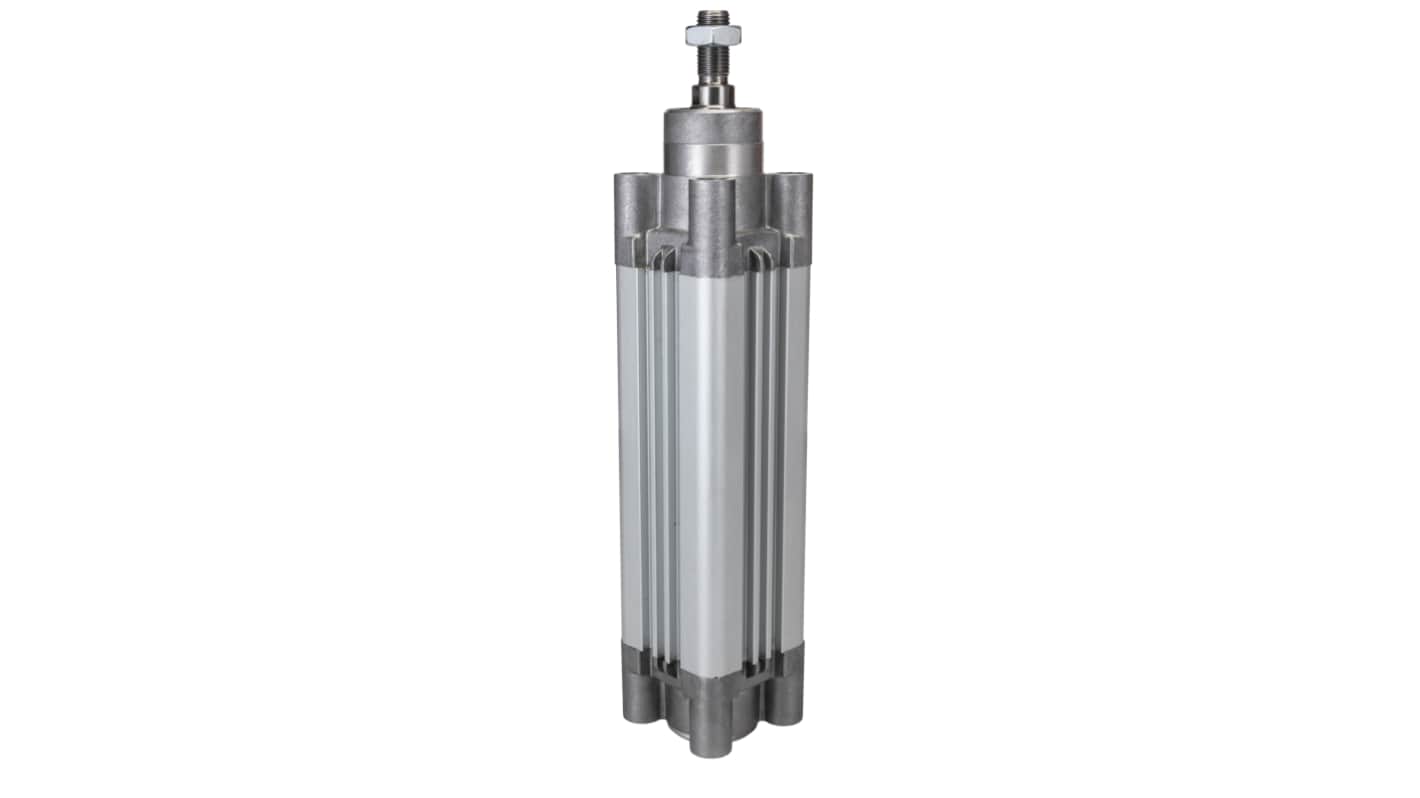

RS Pro double-acting pneumatic cylinders according to ISO 15552 suitable for
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
filtered and lubricated compressed air, as well as non lubricated air.
- Pressure Range: 1 bar (0.1 MPa) to 10 bar (1 MPa)
- Temperature Range: 0 °C (-20 °C with dry air) to + 80 °C
Specifications
Attribute | Value |
---|---|
Stroke | 250mm |
Bore | 40mm |
Action | Double |
Length | 385mm |
Cushioning Type | Cushioned |
Dimensions | 385 x 54 x 54mm |
Width | 54mm |
Maximum Operating Pressure | 10 bar |
Height | 54mm |
VDMA Standard | 6431 |
Minimum Operating Temperature | 0°C |
ISO Standard | 15552 |
Maximum Operating Temperature | +80°C |
