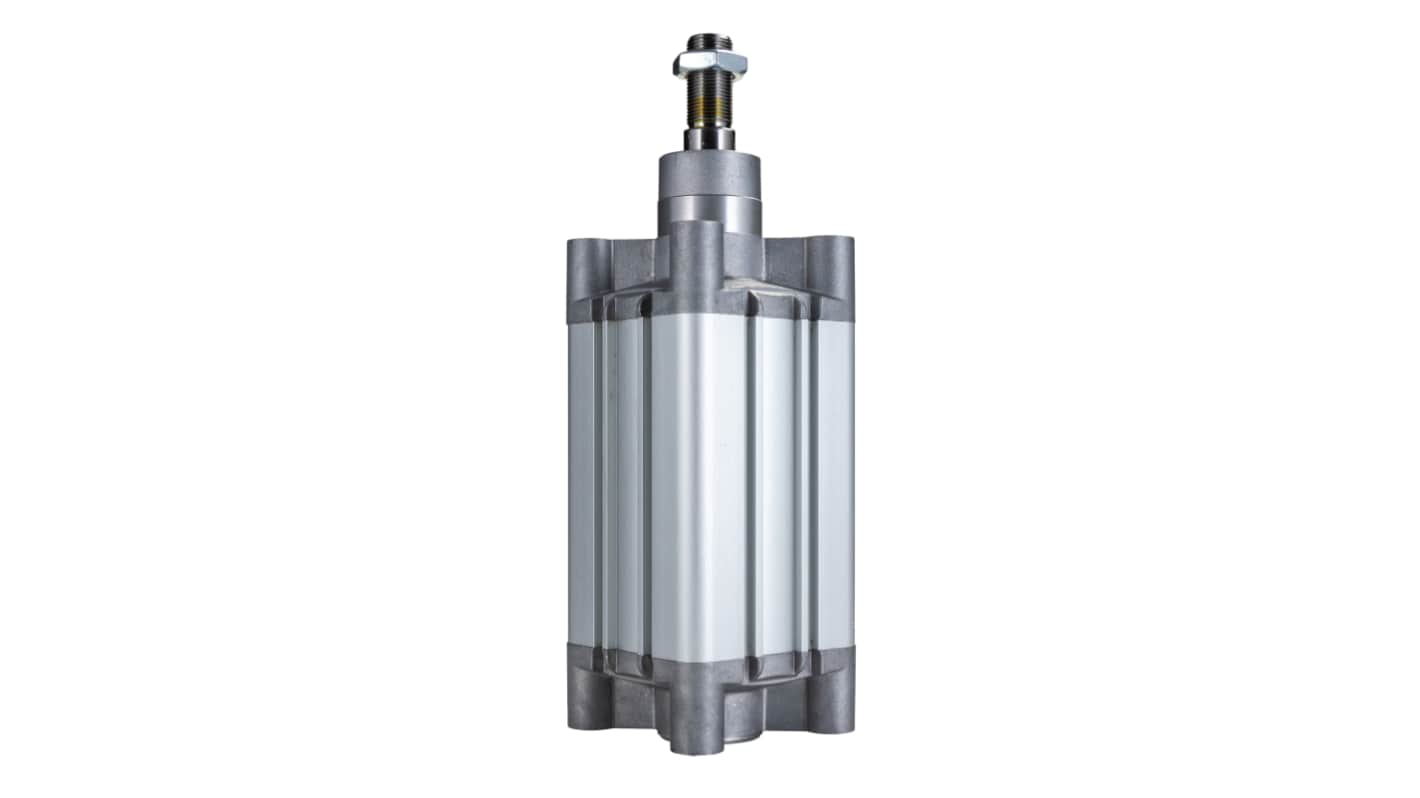

RS PRO Double Acting Cylinder - 80 mm Bore, 80 mm X Series, Double Acting Acting
- RS Stock No.:
- 176-1671
- Brand:
- RS PRO
Subtotal (1 unit)*
£194.67
(exc. VAT)
£233.60
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 2 unit(s) shipping from 11 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £194.67 |
*price indicative
- RS Stock No.:
- 176-1671
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Series | X | |
| Product Type | Double Acting Cylinder | |
| Action Type | Double Acting | |
| Bore Size | 80mm | |
| Mount Type | Both Ends Tapped | |
| Cushioning Type | Cushioned | |
| Body Material | Stainless Steel | |
| Stroke Length | 80mm | |
| Length | 254mm | |
| Maximum Operating Pressure | 10 bar | |
| Rod Type | Double | |
| Minimum Operating Temperature | 0°C | |
| Piston Rod Gender | Female | |
| Piston Rod Thread Standard | Metric | |
| Piston Rod Thread Size | M20 | |
| Maximum Operating Temperature | 80°C | |
| Height | 94mm | |
| Width | 94mm | |
| Standards/Approvals | RS PRO Seal of Approval | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Series X | ||
Product Type Double Acting Cylinder | ||
Action Type Double Acting | ||
Bore Size 80mm | ||
Mount Type Both Ends Tapped | ||
Cushioning Type Cushioned | ||
Body Material Stainless Steel | ||
Stroke Length 80mm | ||
Length 254mm | ||
Maximum Operating Pressure 10 bar | ||
Rod Type Double | ||
Minimum Operating Temperature 0°C | ||
Piston Rod Gender Female | ||
Piston Rod Thread Standard Metric | ||
Piston Rod Thread Size M20 | ||
Maximum Operating Temperature 80°C | ||
Height 94mm | ||
Width 94mm | ||
Standards/Approvals RS PRO Seal of Approval | ||
- COO (Country of Origin):
- IT
RS PRO Pneumatic Actuators - Double Acting Cushioned Magnetic
RS PRO's double-acting pneumatic actuators are designed to provide exceptional precision and durability. These sophisticated actuators transform compressed air into smooth mechanical motion, making them perfect for applications that require precise control and dependable performance.
Why Would You Choose This Actuator?
Our double-acting cylinders utilise air pressure to move the piston in both directions, ensuring efficient and controlled motion. The built-in cushioning reduces impact and noise at the end of the stroke, enhancing the actuator's lifespan and providing smoother operation. Additionally, the integrated magnet allows external magnetic sensors to detect the piston's position, making it ideal for feedback in control systems.
Features and Benefits
Applications
These versatile actuators are commonly used in industrial automation for tasks that demand precision and smooth operation. Whether in manufacturing, assembly lines, or robotics, RS PRO pneumatic actuators deliver exceptional performance and reliability.
