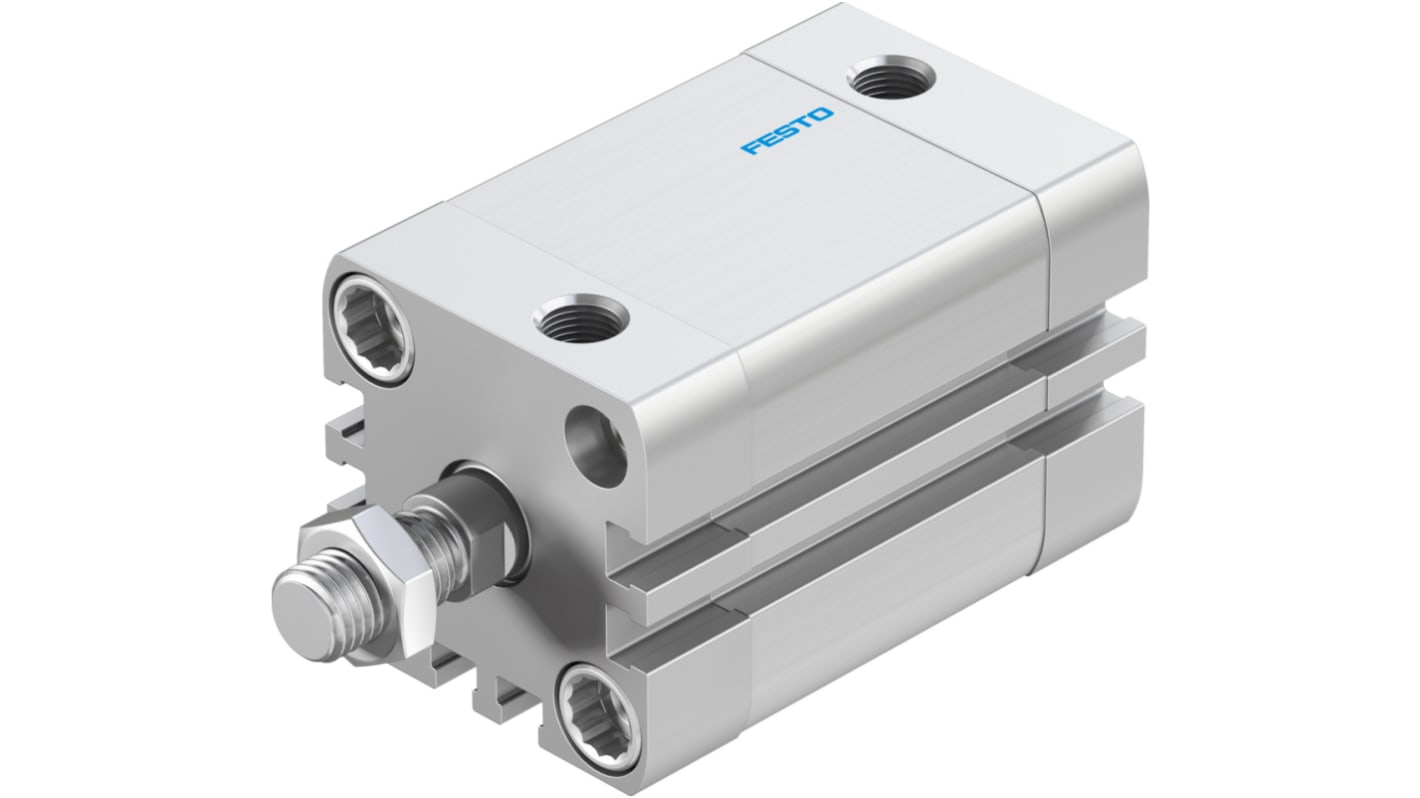

Festo Pneumatic Cylinder - 536273, 32mm Bore, 30mm Stroke, ADN Series, Double Acting
- RS Stock No.:
- 136-6793
- Mfr. Part No.:
- ADN-32-30-A-P-A
- Brand:
- Festo
Subtotal (1 unit)*
£73.69
(exc. VAT)
£88.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £73.69 |
*price indicative
- RS Stock No.:
- 136-6793
- Mfr. Part No.:
- ADN-32-30-A-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | ADN | |
Model Number p | 536273 | |
Action | Double | |
Stroke | 30mm | |
Bore | 32mm | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Dimensions | 47 x 47 x 80mm | |
Width | 47mm | |
Length | 80mm | |
Height | 47mm | |
Maximum Operating Pressure | 10 bar | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series ADN | ||
Model Number p 536273 | ||
Action Double | ||
Stroke 30mm | ||
Bore 32mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Dimensions 47 x 47 x 80mm | ||
Width 47mm | ||
Length 80mm | ||
Height 47mm | ||
Maximum Operating Pressure 10 bar | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo ADN Series Pneumatic Cylinder, 30mm Stroke, 32mm Bore - ADN-32-30-A-P-A, Numeric Part Number: 536273
This pneumatic cylinder transforms compressed air into mechanical force and is suitable for various industrial applications. Operating with a double-acting mechanism, it provides consistent performance. With a stroke length of 30mm and a bore of 32mm, this pneumatic actuator is ideal for tasks requiring precision in actuation. It adheres to ISO standards, making it a vital component in automation and mechanical systems.
Features & Benefits
• Double-acting operation increases versatility for different applications
• Elastic cushioning allows for gentle movement, minimising wear
• G 1/8 pneumatic connection enables simple integration with systems
• Male thread on the piston rod end ensures secure connections
• Suitable operating temperature range of -20 to +80°C accommodates diverse environments
• Lightweight design aids in easy installation and handling
• Elastic cushioning allows for gentle movement, minimising wear
• G 1/8 pneumatic connection enables simple integration with systems
• Male thread on the piston rod end ensures secure connections
• Suitable operating temperature range of -20 to +80°C accommodates diverse environments
• Lightweight design aids in easy installation and handling
Applications
• Ideal for use in automation equipment for controlled actuation
• Employed in packaging machines for accurate movement
• Suitable for assembly lines that require consistent performance
• Applicable in robotics needing quick response times
• Utilised in material handling systems for effective movement
• Employed in packaging machines for accurate movement
• Suitable for assembly lines that require consistent performance
• Applicable in robotics needing quick response times
• Utilised in material handling systems for effective movement
How it can be install it into my existing system?
Ensure you have the appropriate G 1/8 connection and follow standard fittings for pneumatic components.
What operating medium should be used with this?
It is advisable to use compressed air according to ISO 8573-12010 standards for optimal performance.
Can it be used in cleanroom environments?
Yes, it meets Class 6 cleanroom standards per ISO 14644-1, making it fit for such applications.
What are the nominal forces generated at operational pressures?
At 0.6 MPa, it produces a theoretical force of 415 N during the return stroke and 483 N during the advance stroke.
Is lubrication necessary for proper operation?
While lubrication is not mandatory, it is essential for maintaining the efficiency and longevity of the cylinder.
