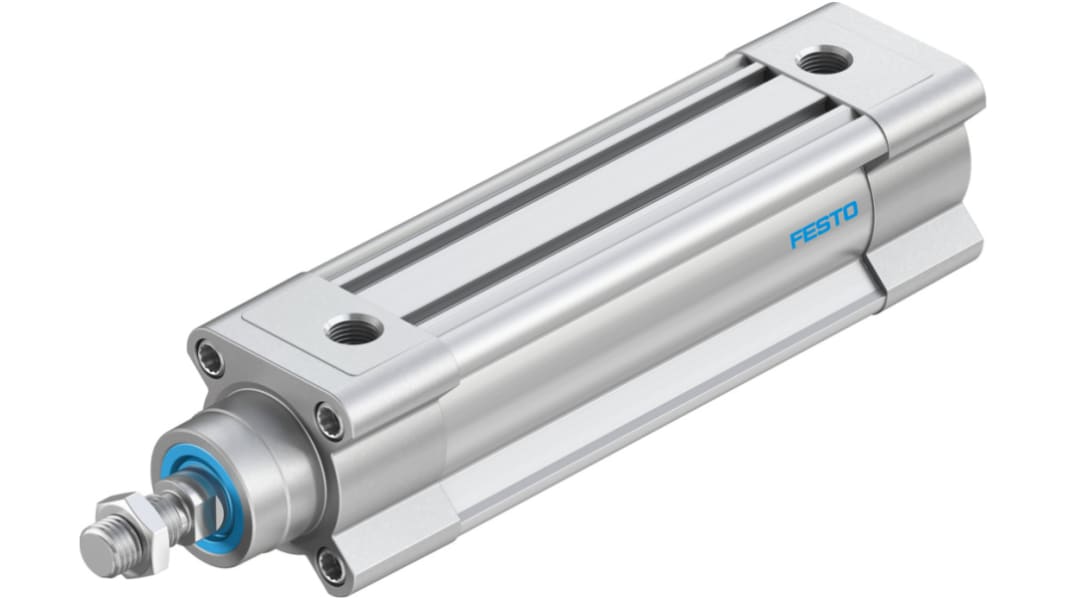

Festo Pneumatic Piston Rod Cylinder - 1376907, 40mm Bore, 100mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5264
- Mfr. Part No.:
- DSBC-40-100-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£146.19
(exc. VAT)
£175.43
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship
- Plus 6 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £146.19 |
*price indicative
- RS Stock No.:
- 121-5264
- Mfr. Part No.:
- DSBC-40-100-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376907 | |
Action | Double | |
Bore | 40mm | |
Stroke | 100mm | |
Pneumatic Connection | G 1/4 | |
Port Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 261.9 x 54 x 54mm | |
Height | 54mm | |
Length | 261.9mm | |
Width | 54mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
VDMA Standard | 24562 | |
Weight | 740g | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Stroke Interval Weight | 37 g @ 10 mm Stroke | |
Test Weight | 740 g @ 0 mm Stroke | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376907 | ||
Action Double | ||
Bore 40mm | ||
Stroke 100mm | ||
Pneumatic Connection G 1/4 | ||
Port Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 261.9 x 54 x 54mm | ||
Height 54mm | ||
Length 261.9mm | ||
Width 54mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
VDMA Standard 24562 | ||
Weight 740g | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Stroke Interval Weight 37 g @ 10 mm Stroke | ||
Test Weight 740 g @ 0 mm Stroke | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, 100mm Stroke, 40mm Bore - DSBC-40-100-PPSA-N3, Numeric Part Number: 1376907
This pneumatic piston rod cylinder is engineered for efficient automation in industrial environments. Its double-acting mechanism offers dependable performance across diverse operating conditions. High pressure tolerance and compliance with ISO 15552 standards enhance its applicability in the automation, electronics, and mechanical engineering sectors.
Features & Benefits
• Self-adjusting pneumatic cushioning ensures smooth operation
• Double-acting mechanism allows effective control in diverse applications
• Robust construction allows use in moderate corrosion environments
• G 1/4 pneumatic connection simplifies integration and installation
• Double-acting mechanism allows effective control in diverse applications
• Robust construction allows use in moderate corrosion environments
• G 1/4 pneumatic connection simplifies integration and installation
Applications
• Used in automated assembly lines for precise actuation
• Ideal for robotic systems requiring consistent motion control
• Suitable for machinery that operates using compressed air
• Employed in handling systems for transporting and manipulating materials
• Ideal for robotic systems requiring consistent motion control
• Suitable for machinery that operates using compressed air
• Employed in handling systems for transporting and manipulating materials
What is the recommended operating pressure range for optimal performance?
The optimal operating pressure is between 0.6 bar and 12 bar, suitable for a variety of applications.
Can this component function effectively in varying temperature conditions?
Yes, it operates efficiently within a temperature range of -20 to +80°C.
What are the benefits of self-adjusting pneumatic cushioning?
This feature minimises wear by softening impacts at the end of strokes, thereby enhancing longevity.
How does the proximity switch aid in position detection?
It detects the piston position, enabling precise control and automation in machinery.
