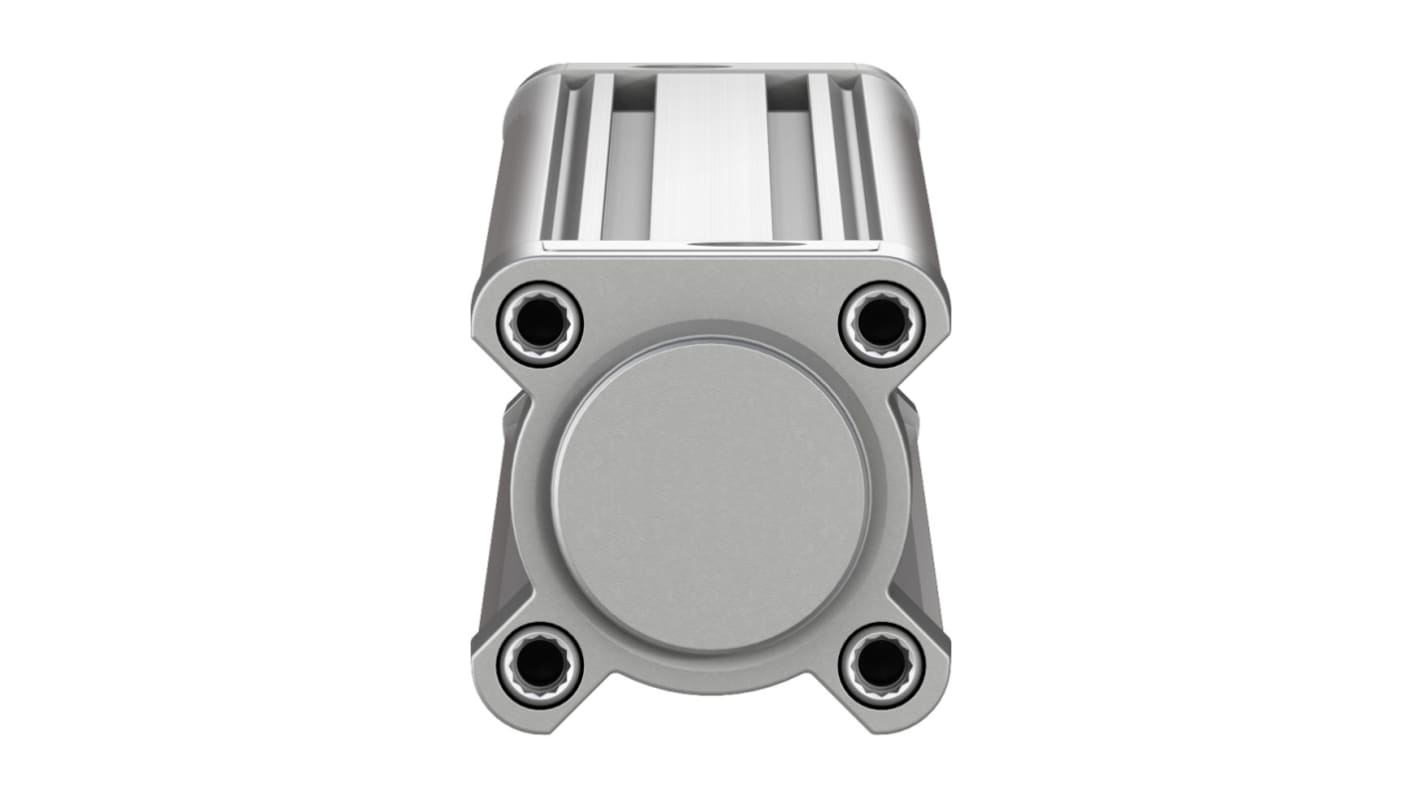

Festo Pneumatic Piston Rod Cylinder - 1376307, 50mm Bore, 100mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5290
- Mfr. Part No.:
- DSBC-50-100-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£171.03
(exc. VAT)
£205.24
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
- Plus 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £171.03 |
*price indicative
- RS Stock No.:
- 121-5290
- Mfr. Part No.:
- DSBC-50-100-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376307 | |
Bore | 50mm | |
Action | Double | |
Stroke | 100mm | |
Pneumatic Connection | G 1/4 | |
Port Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 277.8 x 64 x 64mm | |
Length | 277.8mm | |
Height | 64mm | |
Width | 64mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Test Weight | 1190 g @ 0 mm Stroke | |
Stroke Interval Weight | 56 g @ 10 mm Stroke | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | 24562 | |
Weight | 1.2kg | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376307 | ||
Bore 50mm | ||
Action Double | ||
Stroke 100mm | ||
Pneumatic Connection G 1/4 | ||
Port Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 277.8 x 64 x 64mm | ||
Length 277.8mm | ||
Height 64mm | ||
Width 64mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Test Weight 1190 g @ 0 mm Stroke | ||
Stroke Interval Weight 56 g @ 10 mm Stroke | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard 24562 | ||
Weight 1.2kg | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- CN
Festo DSBC Series Pneumatic Piston Rod Cylinder, 100mm Stroke, 50mm Bore - DSBC-50-100-PPSA-N3, Numeric Part Number: 1376307
This pneumatic piston rod cylinder is designed for efficient performance across various applications within the automation and mechanical sectors. Featuring a dual-action mechanism and a robust structure, it ensures reliable movement and functionality in systems that utilise compressed air. Compliance with ISO 15552 guarantees compatibility with a range of equipment, making it a practical addition to any operational setup.
Features & Benefits
• Self-adjusting pneumatic cushioning for smooth operation
• Versatile installation with optional mounting positions
• High-pressure capability up to 12 bar for varied applications
• G 1/4 pneumatic connection for standard fittings
• Compact design enhances space efficiency in installations
• Conforms to VDMA standards, ensuring quality and durability
• Versatile installation with optional mounting positions
• High-pressure capability up to 12 bar for varied applications
• G 1/4 pneumatic connection for standard fittings
• Compact design enhances space efficiency in installations
• Conforms to VDMA standards, ensuring quality and durability
Applications
• Used in automated machinery for precise movements
• Employed in robotic arms for effective control
• Suitable for packaging and conveyor systems requiring accurate piston action
• Utilised in various assembly lines that integrate pneumatic systems
• Employed in robotic arms for effective control
• Suitable for packaging and conveyor systems requiring accurate piston action
• Utilised in various assembly lines that integrate pneumatic systems
What type of medium can be used for operation?
The cylinder operates with compressed air compliant with ISO 8573-12010 specifications.
What is the impact energy in the end positions?
The impact energy is measured at 1 J, providing controlled operation.
How does this cylinder handle temperature variations?
It operates effectively within an ambient temperature range of -20 to +80°C.
