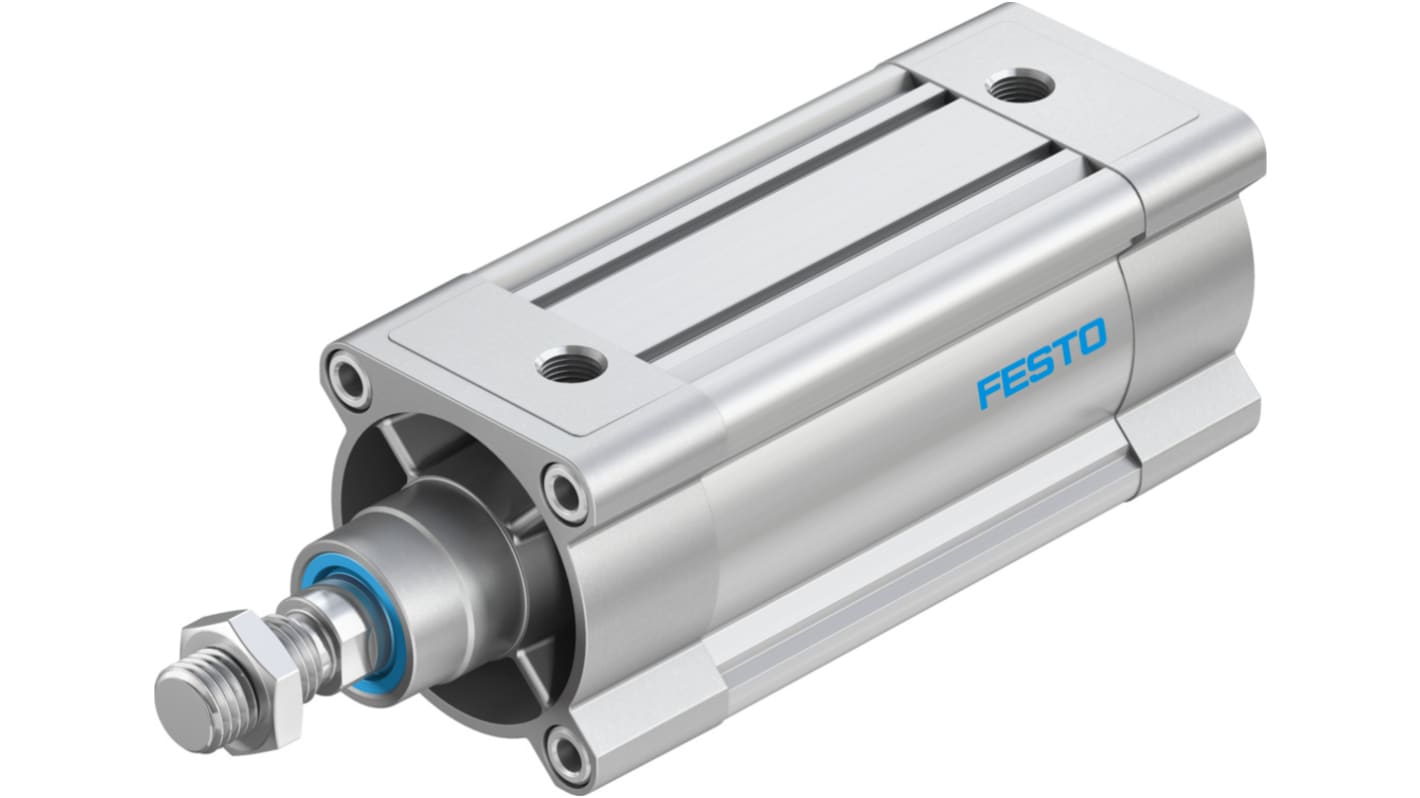

Festo Pneumatic Piston Rod Cylinder - 1383370, 80mm Bore, 100mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5206
- Mfr. Part No.:
- DSBC-80-100-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£266.22
(exc. VAT)
£319.46
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £266.22 |
*price indicative
- RS Stock No.:
- 121-5206
- Mfr. Part No.:
- DSBC-80-100-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1383370 | |
Bore | 80mm | |
Stroke | 100mm | |
Action | Double | |
Pneumatic Connection | G 3/8 | |
Port Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 317.6 x 93 x 93mm | |
Length | 317.6mm | |
Width | 93mm | |
Height | 93mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
VDMA Standard | 24562 | |
Weight | 2.7kg | |
Test Weight | 2660 g @ 0 mm Stroke | |
Stroke Interval Weight | 92 g @ 10 mm Stroke | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1383370 | ||
Bore 80mm | ||
Stroke 100mm | ||
Action Double | ||
Pneumatic Connection G 3/8 | ||
Port Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 317.6 x 93 x 93mm | ||
Length 317.6mm | ||
Width 93mm | ||
Height 93mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
VDMA Standard 24562 | ||
Weight 2.7kg | ||
Test Weight 2660 g @ 0 mm Stroke | ||
Stroke Interval Weight 92 g @ 10 mm Stroke | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, 100mm Stroke, 80mm Bore - DSBC-80-100-PPSA-N3, Numeric Part Number: 1383370
This pneumatic piston rod cylinder is designed for robust performance across various industrial applications. Its double-acting mechanism ensures precise control and dependable operation. Complying with ISO 15552 standards enhances its compatibility and usability in diverse environments.
Features & Benefits
• Self-adjusting pneumatic cushioning for smooth operation
• Double-acting design maximises efficiency in various applications
• High operating pressure of 12 bar for improved performance
• Integrated male thread piston rod for straightforward installation
• G 3/8 pneumatic connection for easy integration into existing systems
• Constructed from RoHS-compliant materials, promoting safety
• Double-acting design maximises efficiency in various applications
• High operating pressure of 12 bar for improved performance
• Integrated male thread piston rod for straightforward installation
• G 3/8 pneumatic connection for easy integration into existing systems
• Constructed from RoHS-compliant materials, promoting safety
Applications
• Utilised in automated assembly lines for efficient processes
• Employed in robotic arms for precise movement control
• Suitable for manufacturing equipment to boost productivity
• Applicable in packaging machinery where reliable actuation is necessary
• Employed in robotic arms for precise movement control
• Suitable for manufacturing equipment to boost productivity
• Applicable in packaging machinery where reliable actuation is necessary
What types of medium are suitable for use with it?
Compressed air that complies with ISO 8573-12010 standards is appropriate for operation.
Is it necessary to adjust the cushioning during installation?
No, the cylinder features self-adjusting pneumatic end-position cushioning for ease of use.
