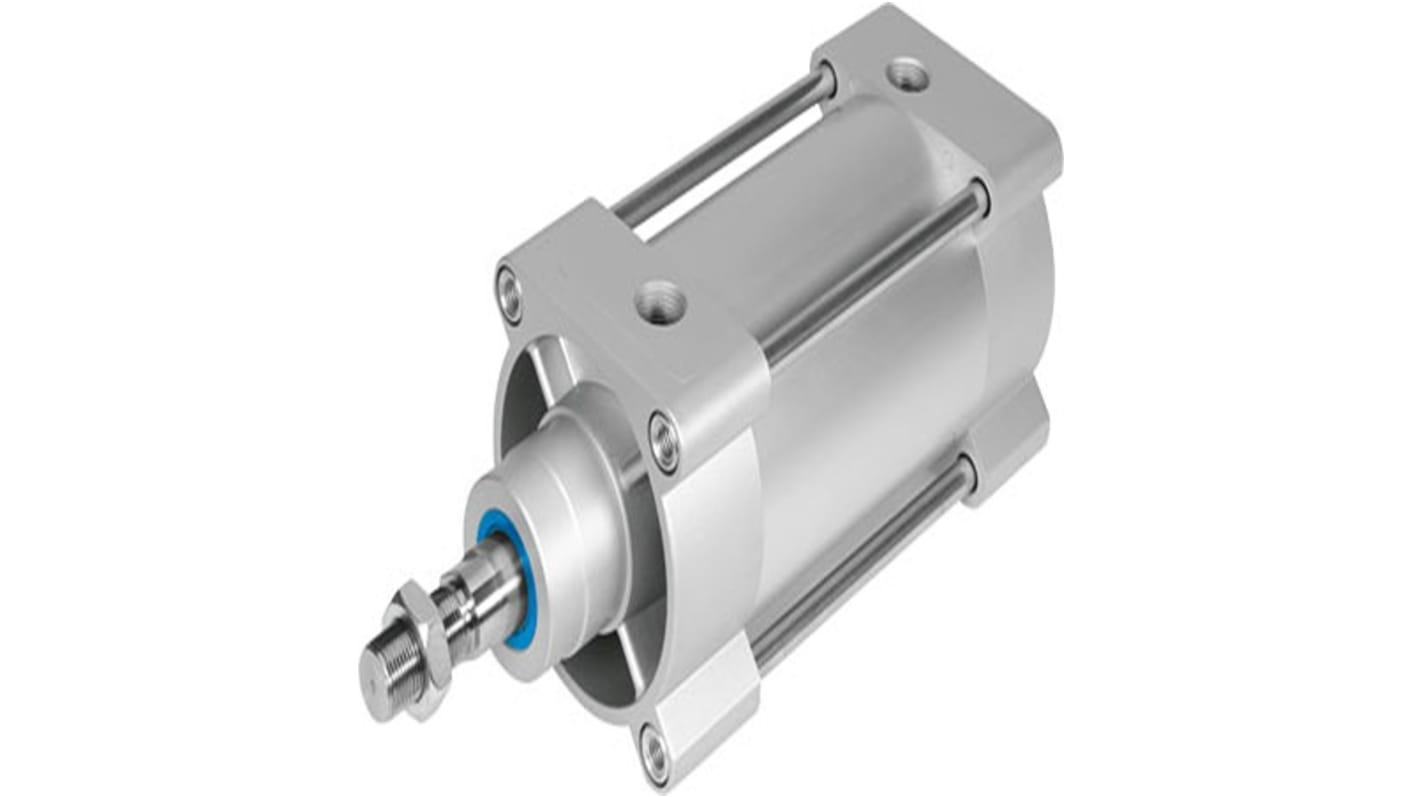

Festo ISO Standard Cylinder - 1646789 80 mm Bore, 100 mm DSBG-80-100-PPSA-N3 Series, Double Acting Acting
- RS Stock No.:
- 273-7635
- Mfr. Part No.:
- DSBG-80-100-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£301.88
(exc. VAT)
£362.26
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 26 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £301.88 |
*price indicative
- RS Stock No.:
- 273-7635
- Mfr. Part No.:
- DSBG-80-100-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Series | DSBG-80-100-PPSA-N3 | |
| Product Type | ISO Standard Cylinder | |
| Model Number | 1646789 | |
| Bore Size | 80mm | |
| Action Type | Double Acting | |
| Mount Type | Female Thread | |
| Cushioning Type | Pneumatic Cushioning Adjustable at Both Ends | |
| Body Material | Die Cast Aluminium | |
| Stroke Length | 100mm | |
| Maximum Operating Pressure | 1.2 Mpa | |
| Piston Rod Gender | Male | |
| Rod Type | Tie | |
| Minimum Operating Temperature | -20°C | |
| Piston Rod Thread Size | M20 x 1.5 | |
| Maximum Operating Temperature | 80°C | |
| Weight | 3510g | |
| Standards/Approvals | ISO 15552 | |
| Select all | ||
|---|---|---|
Brand Festo | ||
Series DSBG-80-100-PPSA-N3 | ||
Product Type ISO Standard Cylinder | ||
Model Number 1646789 | ||
Bore Size 80mm | ||
Action Type Double Acting | ||
Mount Type Female Thread | ||
Cushioning Type Pneumatic Cushioning Adjustable at Both Ends | ||
Body Material Die Cast Aluminium | ||
Stroke Length 100mm | ||
Maximum Operating Pressure 1.2 Mpa | ||
Piston Rod Gender Male | ||
Rod Type Tie | ||
Minimum Operating Temperature -20°C | ||
Piston Rod Thread Size M20 x 1.5 | ||
Maximum Operating Temperature 80°C | ||
Weight 3510g | ||
Standards/Approvals ISO 15552 | ||
- COO (Country of Origin):
- HU
The Festo ISO cylinder comply with or are based on the ISO 15552 standard. This device has position sensing using proximity switches and self adjusting pneumatic end position cushioning. This device has piston, piston rod, tie rod and cylinder barrel design and it supports class 2 corrosion resistance class CRC.
RoHS compliant
No adjustment required
Moderate corrosion stress
Lubricated operation possible
VDMA24364 B1B2 L LABS conformity
