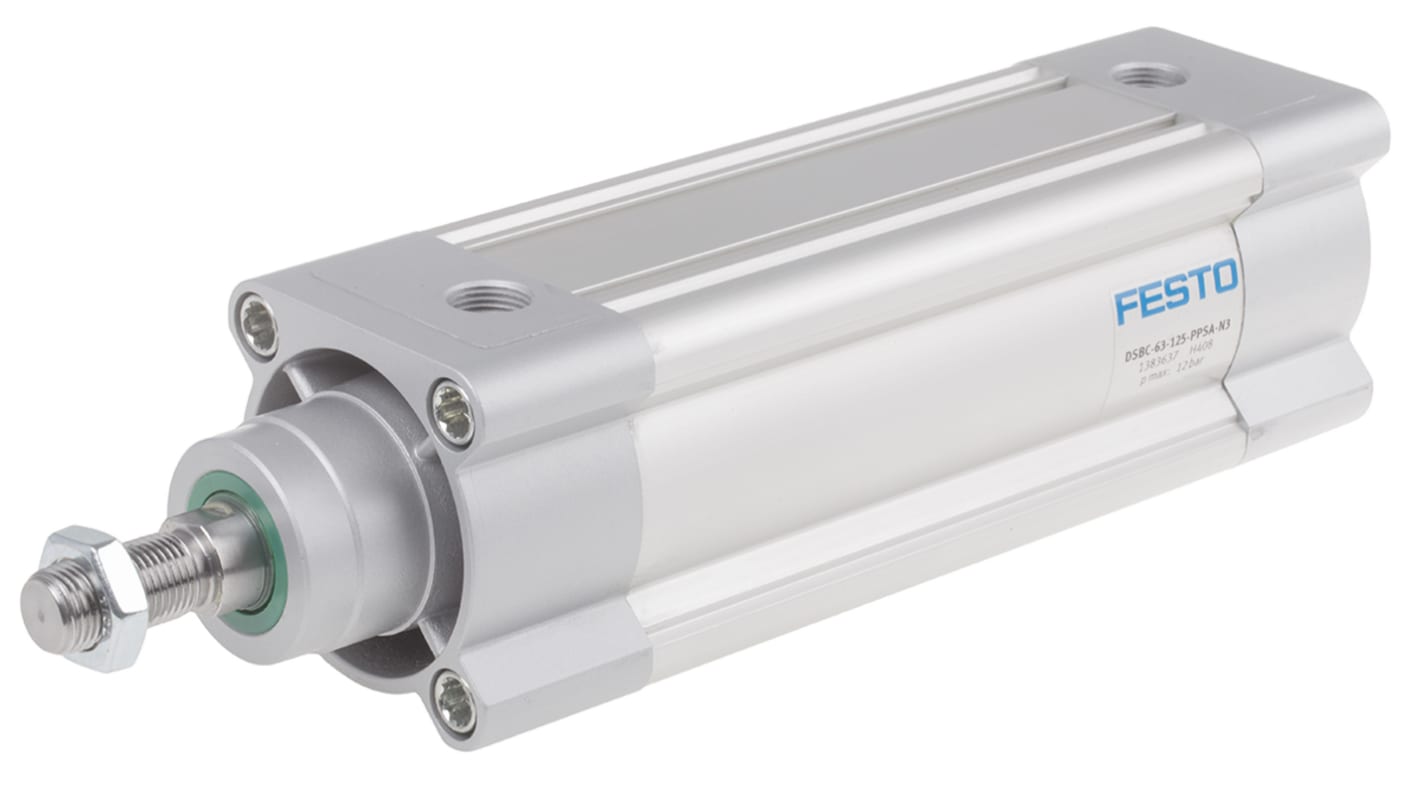

Festo Pneumatic Piston Rod Cylinder - 1383636, 63mm Bore, 100mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5186
- Mfr. Part No.:
- DSBC-63-100-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£200.73
(exc. VAT)
£240.88
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 27 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £200.73 |
*price indicative
- RS Stock No.:
- 121-5186
- Mfr. Part No.:
- DSBC-63-100-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1383636 | |
Action | Double | |
Bore | 63mm | |
Stroke | 100mm | |
Port Connection | G 3/8 | |
Pneumatic Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 293.1 x 75 x 75mm | |
Width | 75mm | |
Length | 293.1mm | |
Height | 75mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Stroke Interval Weight | 62 g @ 10 mm Stroke | |
Minimum Operating Temperature | -20°C | |
Test Weight | 1740 g @ 0 mm Stroke | |
Weight | 1.7kg | |
Maximum Operating Temperature | +80°C | |
VDMA Standard | 24562 | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1383636 | ||
Action Double | ||
Bore 63mm | ||
Stroke 100mm | ||
Port Connection G 3/8 | ||
Pneumatic Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 293.1 x 75 x 75mm | ||
Width 75mm | ||
Length 293.1mm | ||
Height 75mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Stroke Interval Weight 62 g @ 10 mm Stroke | ||
Minimum Operating Temperature -20°C | ||
Test Weight 1740 g @ 0 mm Stroke | ||
Weight 1.7kg | ||
Maximum Operating Temperature +80°C | ||
VDMA Standard 24562 | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, 100mm Stroke, 63mm Bore - DSBC-63-100-PPSA-N3, Numeric Part Number: 1383636
This pneumatic piston rod cylinder is ideal for automation applications where precise and powerful motion is essential. Designed with a stroke length of 100mm and a bore diameter of 63mm, it conforms to ISO 15552 standards, ensuring compatibility with various setups. The cylinder features a robust construction, measuring 293.1 x 75 x 75mm, allowing for efficient integration into industrial systems.
Features & Benefits
• Double-acting operation for enhanced performance
• Self-adjusting pneumatic cushioning for soft landings
• Optional mounting position facilitates diverse setups
• Operating pressure ranges from 0.4 bar to 12 bar
• Durable materials withstand moderate corrosion stress
• Proximity switch compatibility enables position detection
• Self-adjusting pneumatic cushioning for soft landings
• Optional mounting position facilitates diverse setups
• Operating pressure ranges from 0.4 bar to 12 bar
• Durable materials withstand moderate corrosion stress
• Proximity switch compatibility enables position detection
Applications
• Used for automated assembly lines requiring precise movement
• Employed in packaging machines for controlled actuation
• Suitable for robotics where exact positioning is necessary
• Utilised in production equipment for reliable performance
• Employed in packaging machines for controlled actuation
• Suitable for robotics where exact positioning is necessary
• Utilised in production equipment for reliable performance
What is the maximum and minimum temperature range this cylinder can operate within?
It can function optimally in ambient temperatures ranging from -20 °C to +80 °C, making it suitable for various environments.
Can this unit work with lubricated compressed air?
Yes, lubricated operation is possible, but it must be consistently applied to maintain performance.
What is the theoretical force generated at a pressure of 6 bar for both strokes?
At 6 bar, it produces a theoretical force of 1682 N during the return stroke and 1870 N during the advance stroke.
How does the cushioning mechanism contribute to cylinder performance?
The self-adjusting pneumatic end-position cushioning significantly reduces impact energy in end positions to 1.3 J, enhancing safety and longevity.
What material components ensure this cylinder's durability?
It features die-cast aluminium for the cover, high-alloy steel for the piston rod, and TPE-U(PU) for the seals, ensuring robust operation under various conditions.
