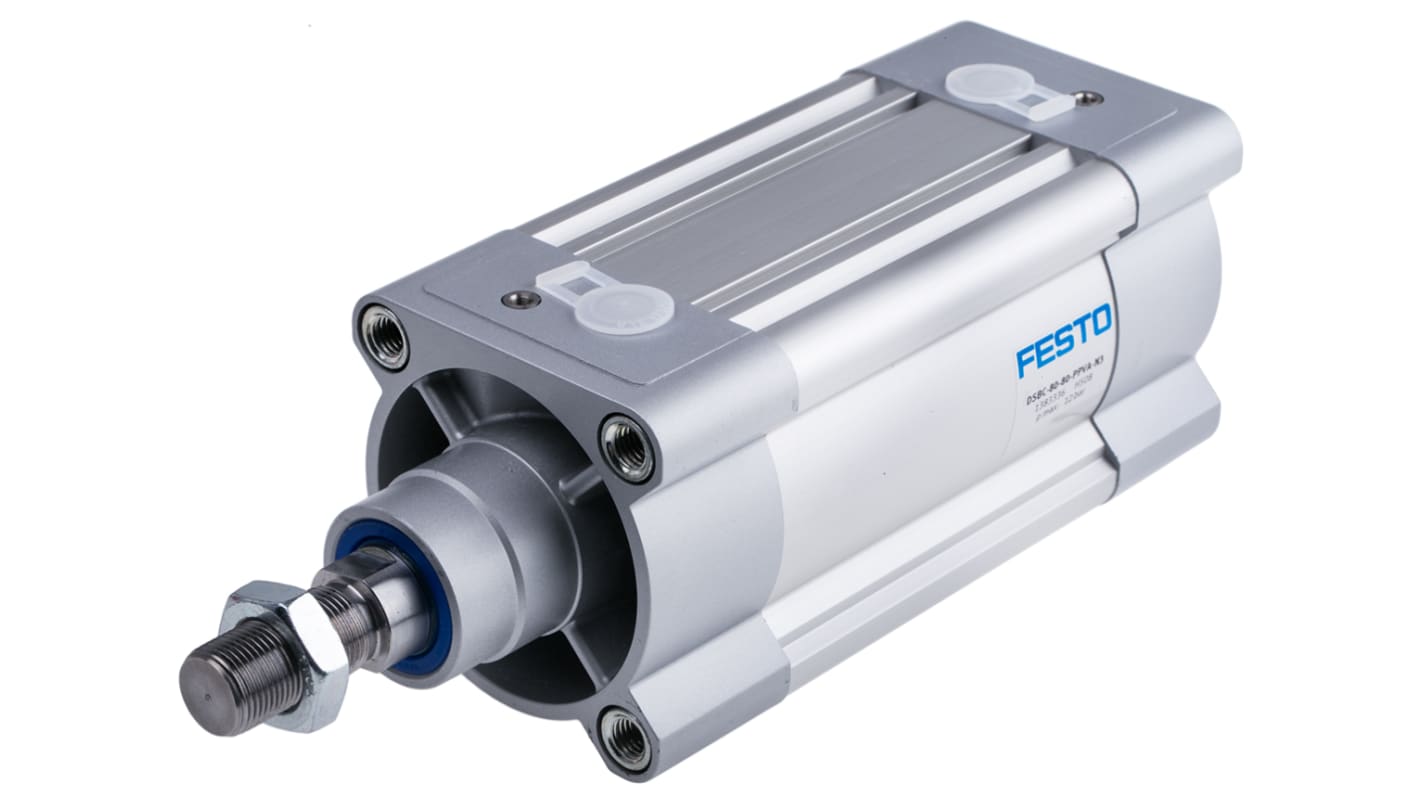

Festo Pneumatic Piston Rod Cylinder - 1383336, 80mm Bore, 80mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5229
- Mfr. Part No.:
- DSBC-80-80-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£269.19
(exc. VAT)
£323.03
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 25 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £269.19 |
*price indicative
- RS Stock No.:
- 121-5229
- Mfr. Part No.:
- DSBC-80-80-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSBC | |
| Model Number p | 1383336 | |
| Action | Double | |
| Bore | 80mm | |
| Stroke | 80mm | |
| Port Connection | G 3/8 | |
| Pneumatic Connection | G 3/8 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Pneumatic Cushioning | |
| Dimensions | 297.6 x 93 x 93mm | |
| Width | 93mm | |
| Height | 93mm | |
| Length | 297.6mm | |
| Maximum Operating Pressure | 12 bar | |
| ISO Standard | 15552 | |
| Minimum Operating Temperature | -20°C | |
| Weight | 2.7kg | |
| Test Weight | 2660 g @ 0 mm Stroke | |
| VDMA Standard | 24562 | |
| Stroke Interval Weight | 92 g @ 10 mm Stroke | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1383336 | ||
Action Double | ||
Bore 80mm | ||
Stroke 80mm | ||
Port Connection G 3/8 | ||
Pneumatic Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Cushioning | ||
Dimensions 297.6 x 93 x 93mm | ||
Width 93mm | ||
Height 93mm | ||
Length 297.6mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Minimum Operating Temperature -20°C | ||
Weight 2.7kg | ||
Test Weight 2660 g @ 0 mm Stroke | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 92 g @ 10 mm Stroke | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- CN
Festo Pneumatic Piston Rod Cylinder, 0.4 to 12 Bar Operating Pressure Range, G3/8 Pneumatic Connection - DSBC-80-80-PPVA-N3
Get the benefit of precise positioning with this pneumatic piston rod cylinder from Festo. By delivering force up to 3016N at 6 bar on the outstroke, it packs enough punch to get heavy loads moving. With its handy double-acting function, it uses air to move the piston in both directions to achieve accurate machine movements. Damp conditions are no match for this product, thanks to its corrosion-resistant aluminium casing. Air cushioning is on hand to absorb impact, minimise wear and keep your system ticking along without a hiccup.
Features & Benefits
• Standard G3/8 thread pneumatic connection for wide compatibility
• Body measurements of 93 (W) x 93 (H) x 297.6mm (L) mean it slips easily into busy setups
• PU seals stop air from escaping, maintaining system pressure
• Works safely in operating temperatures between -20°C and +80°C
• Body measurements of 93 (W) x 93 (H) x 297.6mm (L) mean it slips easily into busy setups
• PU seals stop air from escaping, maintaining system pressure
• Works safely in operating temperatures between -20°C and +80°C
Applications
• Mining industry
• Plastic processing
• Manufacturing plants
• Plastic processing
• Manufacturing plants
What air supplies can I use this pneumatic cylinder with?
This product works with either clean or lubricated compressed air supplies, so it's a versatile option.
