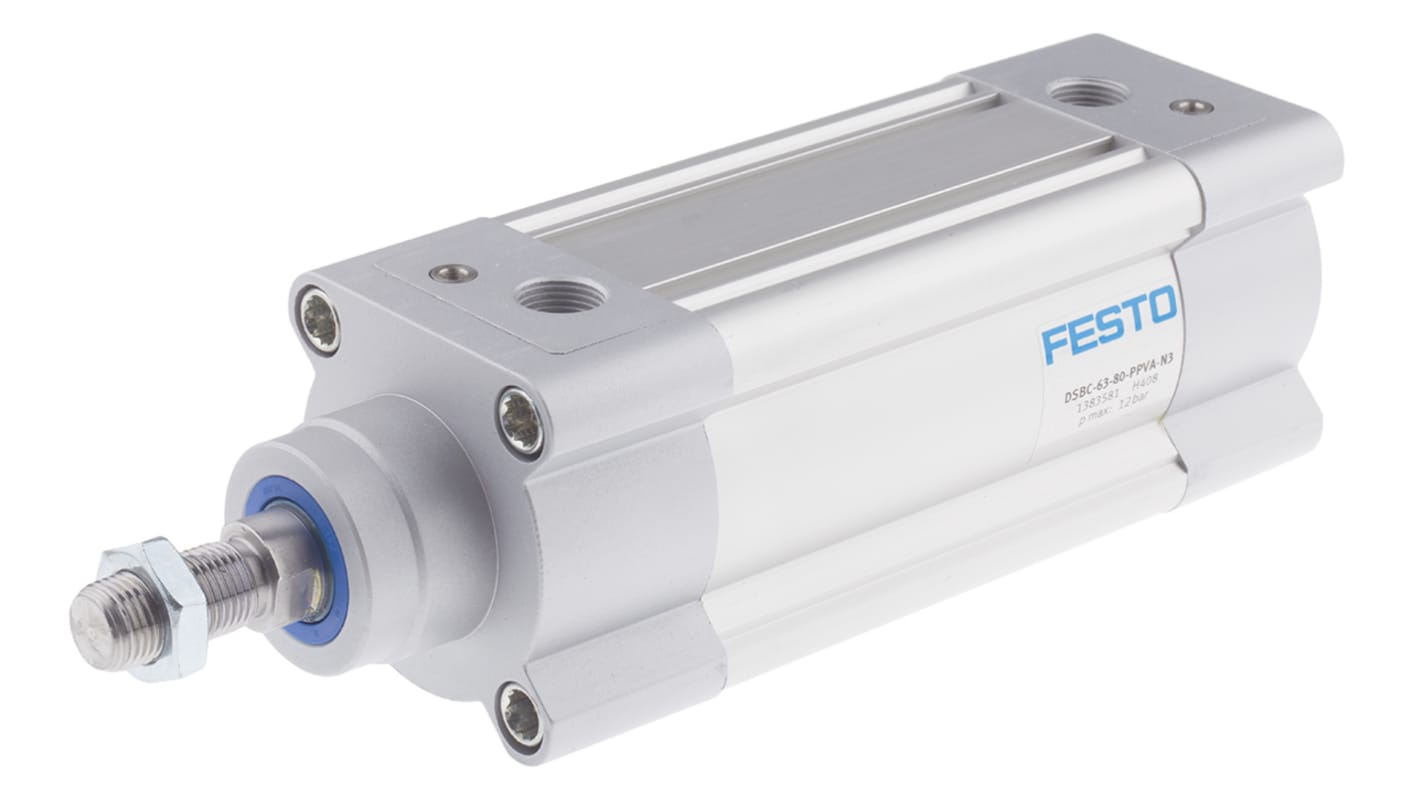

Festo Pneumatic Piston Rod Cylinder - 1383581, 63mm Bore, 80mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5205
- Mfr. Part No.:
- DSBC-63-80-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£203.11
(exc. VAT)
£243.73
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 1 unit(s) shipping from 13 October 2025
- Plus 4 unit(s) shipping from 23 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £203.11 |
*price indicative
- RS Stock No.:
- 121-5205
- Mfr. Part No.:
- DSBC-63-80-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1383581 | |
Action | Double | |
Stroke | 80mm | |
Bore | 63mm | |
Port Connection | G 3/8 | |
Pneumatic Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 273.1 x 75 x 75mm | |
Length | 273.1mm | |
Width | 75mm | |
Height | 75mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Stroke Interval Weight | 62 g @ 10 mm Stroke | |
Test Weight | 1740 g @ 0 mm Stroke | |
VDMA Standard | 24562 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Weight | 1.7kg | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1383581 | ||
Action Double | ||
Stroke 80mm | ||
Bore 63mm | ||
Port Connection G 3/8 | ||
Pneumatic Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 273.1 x 75 x 75mm | ||
Length 273.1mm | ||
Width 75mm | ||
Height 75mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Stroke Interval Weight 62 g @ 10 mm Stroke | ||
Test Weight 1740 g @ 0 mm Stroke | ||
VDMA Standard 24562 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Weight 1.7kg | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, 22mm Cushioning Length, 0.4 to 12 Bar Operating Pressure Range - DSBC-63-80-PPVA-N3
Set your machinery in motion with this pneumatic piston rod cylinder from Festo. It's a double-acting type, meaning the piston rod can extend or retract in response to compressed air entering one of its two ports. This unit beats the rigours of harsh conditions thanks to its wide operating temperature range between -20°C and +80°C. Adjustable cushioning on each end stops noise and wear in their tracks for quiet and reliable performance. For flexible installation, you can assemble this cylinder in any position.
Features & Benefits
• Broad operating pressure range between 0.4 and 12 bar for use in low and high-pressure applications
• Accommodates non-lubricated and lubricated compressed air for versatility
• TPE-U seals prevent air leakage for optimal performance
• Threaded design for ease of integration into your setup
• Accommodates non-lubricated and lubricated compressed air for versatility
• TPE-U seals prevent air leakage for optimal performance
• Threaded design for ease of integration into your setup
Applications
• Hydraulic equipment
• Construction sites
• Marine engineering
• Construction sites
• Marine engineering
What material is the piston rod of this cylinder made from?
The piston rod is made from tough high-alloy steel for resistance to impact and corrosion, so it packs a punch in demanding environments.
