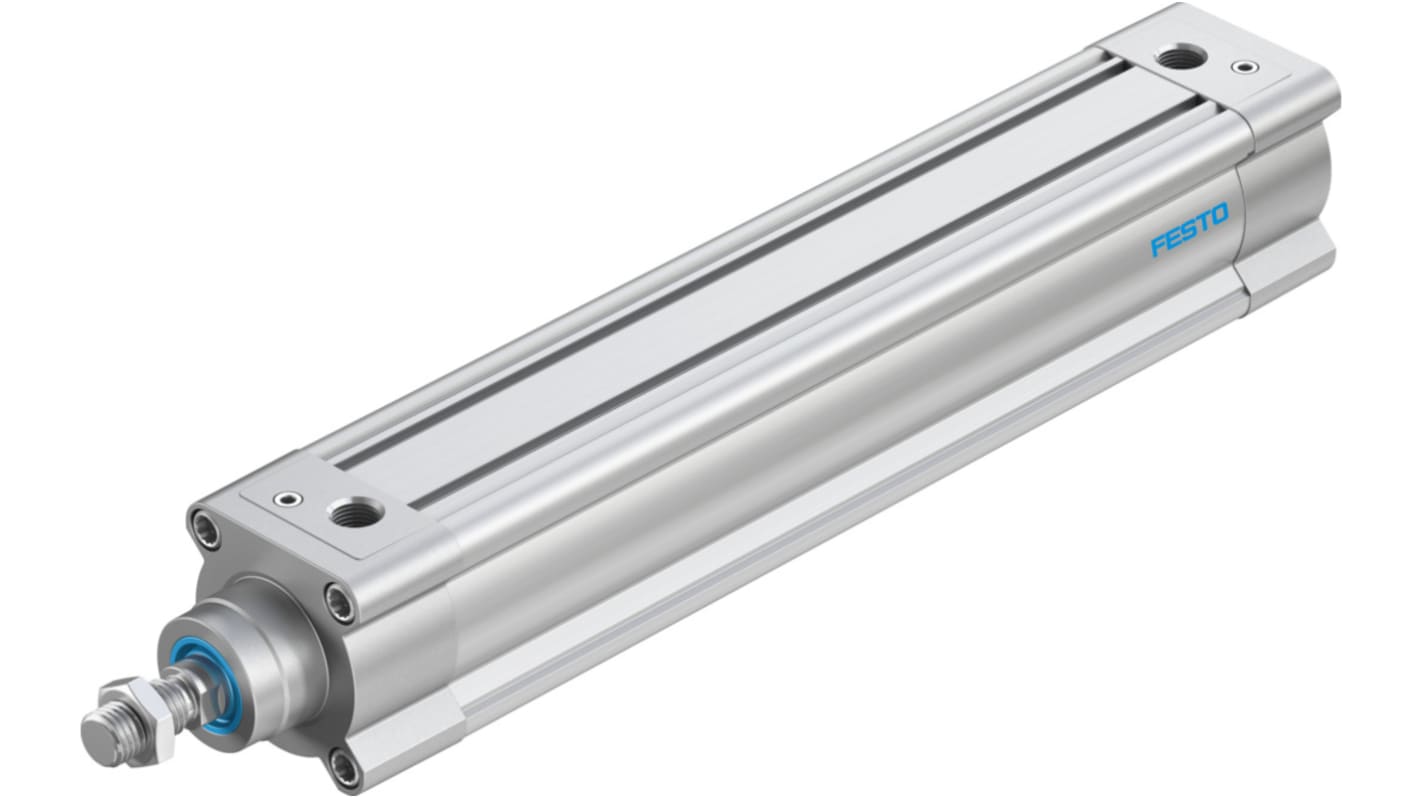

Festo Pneumatic Piston Rod Cylinder - 2125495, 63mm Bore, 300mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 136-6680
- Mfr. Part No.:
- DSBC-63-300-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£230.17
(exc. VAT)
£276.20
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £230.17 |
*price indicative
- RS Stock No.:
- 136-6680
- Mfr. Part No.:
- DSBC-63-300-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 2125495 | |
Bore | 63mm | |
Stroke | 300mm | |
Action | Double | |
Port Connection | G 3/8 | |
Pneumatic Connection | G 3/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 493.1 x 75 x 75mm | |
Height | 75mm | |
Length | 493.1mm | |
Width | 75mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Maximum Operating Temperature | +80°C | |
Test Weight | 1740 g @ 0 mm Stroke | |
Stroke Interval Weight | 62 g @ 10 mm Stroke | |
Weight | 1.7kg | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | 24562 | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 2125495 | ||
Bore 63mm | ||
Stroke 300mm | ||
Action Double | ||
Port Connection G 3/8 | ||
Pneumatic Connection G 3/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 493.1 x 75 x 75mm | ||
Height 75mm | ||
Length 493.1mm | ||
Width 75mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Maximum Operating Temperature +80°C | ||
Test Weight 1740 g @ 0 mm Stroke | ||
Stroke Interval Weight 62 g @ 10 mm Stroke | ||
Weight 1.7kg | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard 24562 | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, 300mm Stroke, 63mm Bore - DSBC-63-300-PPVA-N3, Numeric Part Number: 2125495
This pneumatic piston rod cylinder is designed for various industrial automation applications and operates effectively across a range of conditions. Its double-acting mechanism ensures efficient operation, delivering significant force during both the advance and return strokes.
Features & Benefits
• Adjustable pneumatic cushioning enhances operational efficiency
• Complies with ISO 15552 standards for compatibility and reliability
• Robust construction with moderate corrosion resistance
• Lightweight design facilitates easy installation and handling
• Male thread on the piston rod streamlines mounting requirements
• Complies with ISO 15552 standards for compatibility and reliability
• Robust construction with moderate corrosion resistance
• Lightweight design facilitates easy installation and handling
• Male thread on the piston rod streamlines mounting requirements
Applications
• Utilised in machine tools for precise positioning
• Commonly found in packaging technology for efficient movement
• Suitable for robotic arms requiring reliable actuation
• Employed in assembly lines needing rapid cycle times
• Commonly found in packaging technology for efficient movement
• Suitable for robotic arms requiring reliable actuation
• Employed in assembly lines needing rapid cycle times
What is the maximum load this cylinder can handle?
The theoretical force during the advance stroke is 1870N at optimal pressure.
Can this cylinder be mounted in any position?
Yes, it allows for flexible mounting positions based on system requirements.
What materials are used in its construction?
It comprises die-cast aluminium, high-alloy steel, and robust polymers.
How does the impact energy affect performance?
The cushioning length of 22 mm ensures controlled impact energy of 1.3 J during operation.
