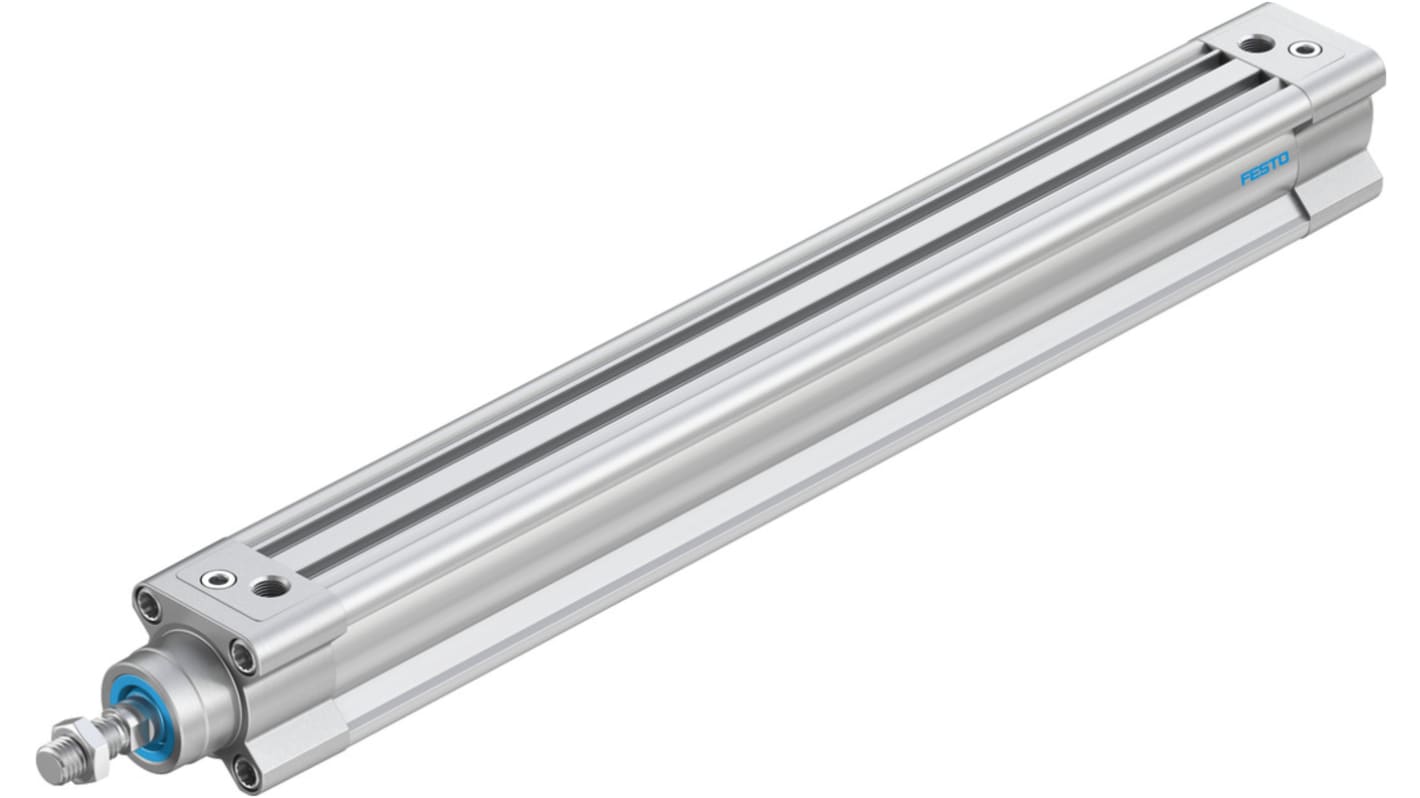

Festo Pneumatic Piston Rod Cylinder - 2123074, 32mm Bore, 300mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5247
- Mfr. Part No.:
- DSBC-32-300-PPVA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£144.30
(exc. VAT)
£173.16
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 3 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £144.30 |
*price indicative
- RS Stock No.:
- 121-5247
- Mfr. Part No.:
- DSBC-32-300-PPVA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSBC | |
| Model Number p | 2123074 | |
| Stroke | 300mm | |
| Bore | 32mm | |
| Action | Double | |
| Pneumatic Connection | G 1/8 | |
| Port Connection | G 1/8 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Air | |
| Dimensions | 445.1 x 45 x 45mm | |
| Width | 45mm | |
| Length | 445.1mm | |
| Height | 45mm | |
| Maximum Operating Pressure | 12 bar | |
| ISO Standard | 15552 | |
| VDMA Standard | 24562 | |
| Stroke Interval Weight | 27 g @ 10 mm Stroke | |
| Test Weight | 465 g @ 0 mm Stroke | |
| Minimum Operating Temperature | -20°C | |
| Weight | 465g | |
| Maximum Operating Temperature | +80°C | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 2123074 | ||
Stroke 300mm | ||
Bore 32mm | ||
Action Double | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 445.1 x 45 x 45mm | ||
Width 45mm | ||
Length 445.1mm | ||
Height 45mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
VDMA Standard 24562 | ||
Stroke Interval Weight 27 g @ 10 mm Stroke | ||
Test Weight 465 g @ 0 mm Stroke | ||
Minimum Operating Temperature -20°C | ||
Weight 465g | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, G1/8 Pneumatic Connection, 32mm Piston Diameter - DSBC-32-300-PPVA-N3, Numeric Part Number: 2123074
This ISO cylinder from the DSBC series features a 300mm stroke and a 32mm bore diameter. It supports double-acting operation with an adjustable pressure range of 0.06 MPa to 1.2 MPa. The versatile design accommodates various mounting positions, making it suitable for a range of assembly processes.
Features & Benefits
• Double-acting for enhanced efficiency and responsiveness
• Pneumatic cushioning for smooth, controlled movement
• G 1/8 pneumatic connection for easy system integration
• Male thread at piston rod end for secure mounting
• Versatile operating pressure range
• Corrosion resistance class 2 for durability in moderate conditions
• Pneumatic cushioning for smooth, controlled movement
• G 1/8 pneumatic connection for easy system integration
• Male thread at piston rod end for secure mounting
• Versatile operating pressure range
• Corrosion resistance class 2 for durability in moderate conditions
Applications
• Automated assembly lines
• Material handling systems
• Packaging machines
• Robotics
• Material handling systems
• Packaging machines
• Robotics
Can it operate under varying ambient temperatures?
Yes, it functions between -20°C and +80°C.
Can proximity switches be used for position detection?
Yes, it is compatible with proximity switches.
