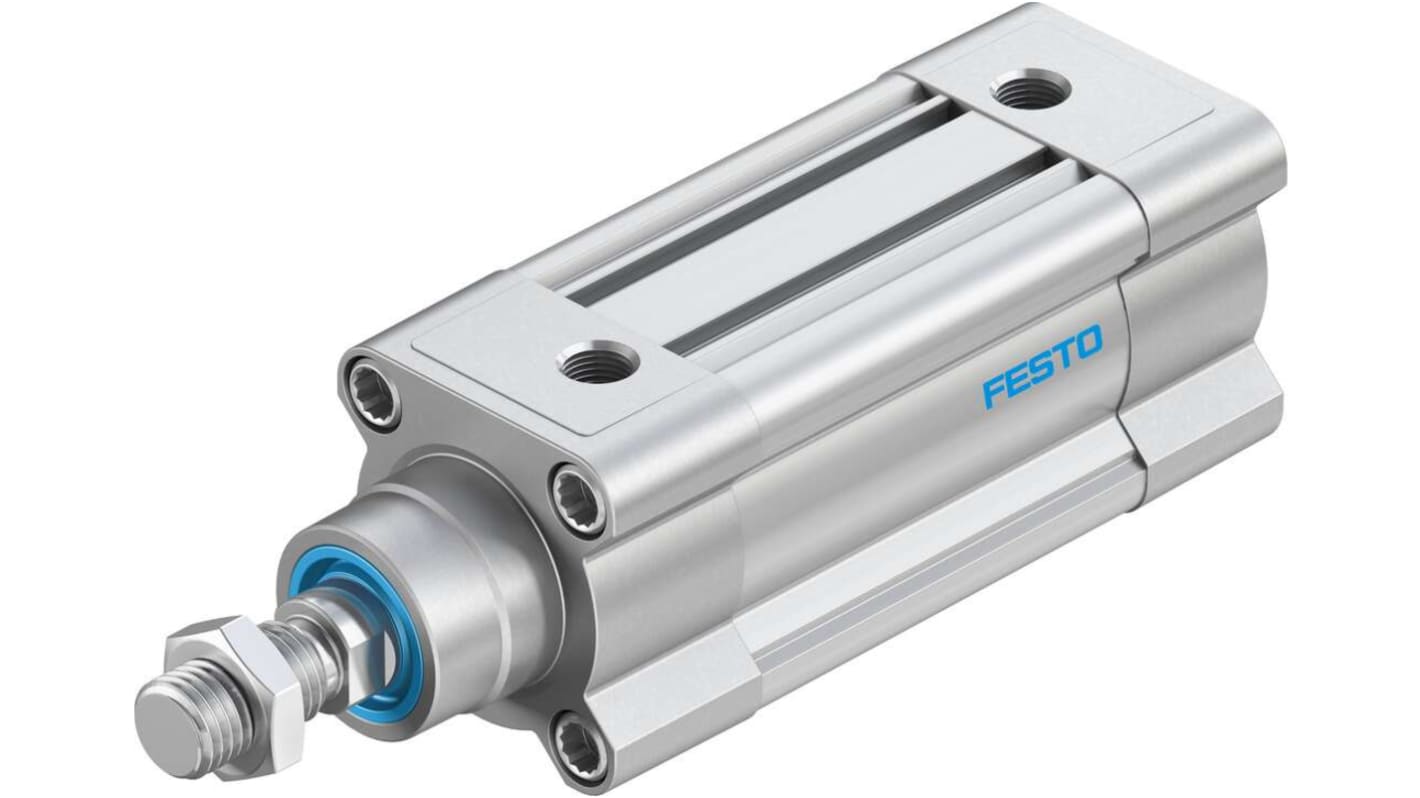

Festo Pneumatic Piston Rod Cylinder - 1376305, 50mm Bore, 50mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5029
- Mfr. Part No.:
- DSBC-50-50-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£163.47
(exc. VAT)
£196.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 3 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £163.47 |
*price indicative
- RS Stock No.:
- 121-5029
- Mfr. Part No.:
- DSBC-50-50-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376305 | |
Stroke | 50mm | |
Bore | 50mm | |
Action | Double | |
Pneumatic Connection | G 1/4 | |
Port Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 227.8 x 64 x 64mm | |
Height | 64mm | |
Length | 227.8mm | |
Width | 64mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Maximum Operating Temperature | +80°C | |
Weight | 1.2kg | |
Stroke Interval Weight | 56 g @ 10 mm Stroke | |
VDMA Standard | 24562 | |
Test Weight | 1190 g @ 0 mm Stroke | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376305 | ||
Stroke 50mm | ||
Bore 50mm | ||
Action Double | ||
Pneumatic Connection G 1/4 | ||
Port Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 227.8 x 64 x 64mm | ||
Height 64mm | ||
Length 227.8mm | ||
Width 64mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Maximum Operating Temperature +80°C | ||
Weight 1.2kg | ||
Stroke Interval Weight 56 g @ 10 mm Stroke | ||
VDMA Standard 24562 | ||
Test Weight 1190 g @ 0 mm Stroke | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, 1.2kg Weight, G1/4 Pneumatic Connection - DSBC-50-50-PPSA-N3
Need reliable repeated movement in your industrial equipment? Count on this piston rod cylinder from Festo to do the heavy lifting. It uses compressed air alternating between its two ports to push its piston backwards and forwards, taking care of repetitive tasks on a production line. Thanks to a stroke length of 50mm, it's the right choice for short-range operations that need control and precision. PPS cushioning on both piston ends absorbs shock, preventing noise and vibration for optimal performance.
Features & Benefits
• Safe to use in challenging settings, thanks to an operating temperature range between -20°C and +80°C
• Wrought aluminium alloy barrel resists corrosion and impact, making it fit for harsh environments
• Slots on the cylinder body let you mount a proximity sensor for automated operation
• TPE-U(PU) seals keep contaminants out and prevent leakages to ensure smooth operation
• Works reliably in a wide operating pressure range between 0.4 and 12 bar
• Wrought aluminium alloy barrel resists corrosion and impact, making it fit for harsh environments
• Slots on the cylinder body let you mount a proximity sensor for automated operation
• TPE-U(PU) seals keep contaminants out and prevent leakages to ensure smooth operation
• Works reliably in a wide operating pressure range between 0.4 and 12 bar
Applications
• Robotics systems
• Packaging facilities
• Marine engineering
• Packaging facilities
• Marine engineering
What operating force does this piston rod cylinder deliver?
At 6 bar operating pressure, this unit delivers an advance force of 1178N and return force of 990N, so you can rely on it to handle heavy-duty applications.
