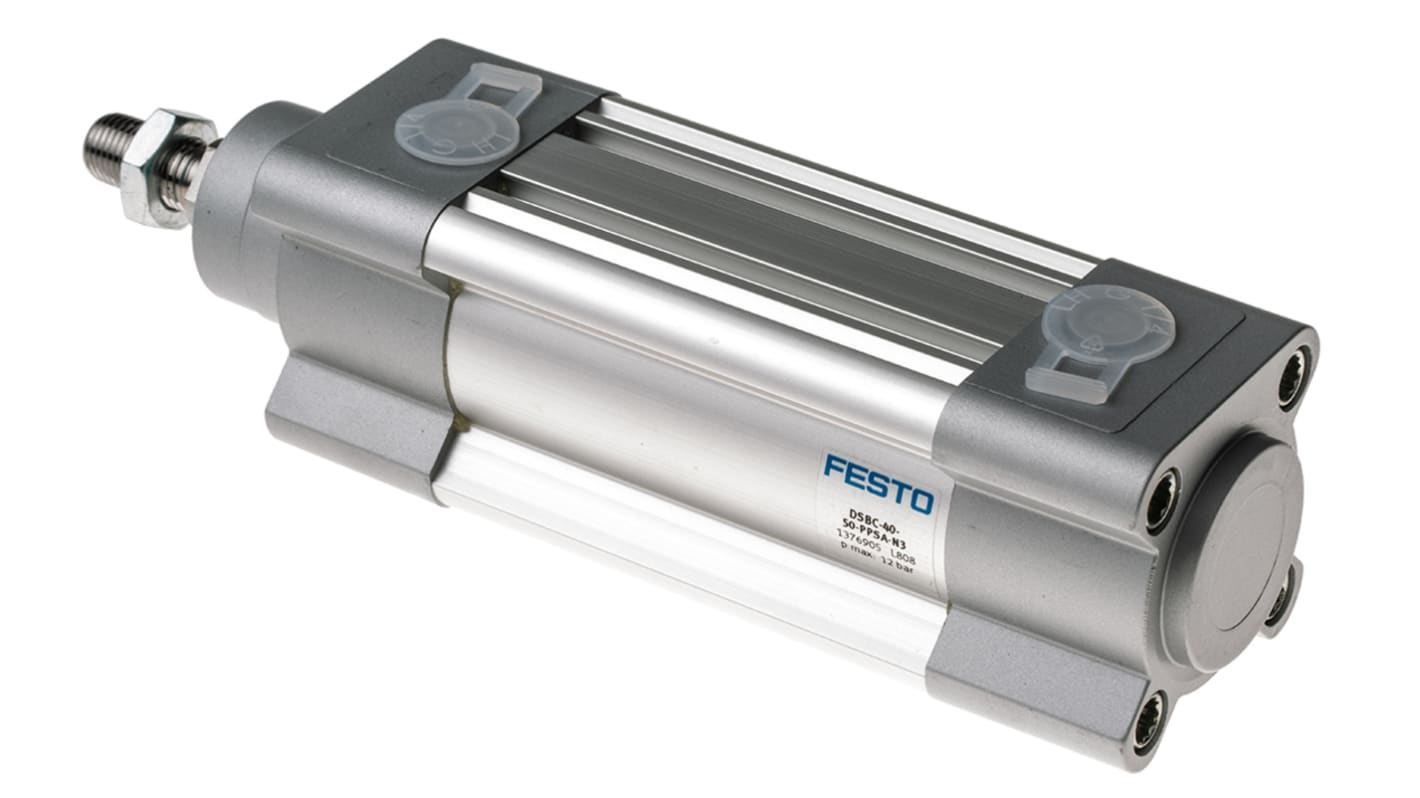

Festo Pneumatic Piston Rod Cylinder - 1376905, 40mm Bore, 50mm Stroke, DSBC Series, Double Acting

RS Stock No.:: 121-5286
Mfr. Part No.:: DSBC-40-50-PPSA-N3
Brand:: Festo

Festo Pneumatic Piston Rod Cylinder - 1376905, 40mm Bore, 50mm Stroke, DSBC Series, Double Acting

Subtotal (1 unit)*

£142.03

(exc. VAT)

£170.44

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

24 unit(s) ready to ship
Plus 8 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£142.03

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Festo Pneumatic Cylinder - 1376658, 40mm Bore, 50mm Stroke, DSBC Series, Double Acting

RS Stock No.: 121-5287

Each

£145.59

(exc. VAT)

£174.71

(inc. VAT)

RS Stock No.:: 121-5286
Mfr. Part No.:: DSBC-40-50-PPSA-N3
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Manufacturer Series	DSBC
	Model Number p	1376905
	Stroke	50mm
	Action	Double
	Bore	40mm
	Pneumatic Connection	G 1/4
	Port Connection	G 1/4
	Piston Rod Thread Gender	Male
	Cushioning Type	Air
	Dimensions	211.9 x 54 x 54mm
	Diameter	ISO8573-1:2010
	Height	54mm
	Length	211.9mm
	Width	54mm
	Absolute Maximum Pressure	ISO8573-1:2010
	Maximum Operating Pressure	12 bar
	ISO Standard	15552
	VDMA Standard	24562
	Minimum Operating Temperature	ISO8573-1:2010°C
	Test Weight	740 g @ 0 mm Stroke
	Piston Speed	ISO8573-1:2010
	Stroke Interval Weight	37 g @ 10 mm Stroke
	Maximum Operating Temperature	ISO8573-1:2010°C
	Weight	740g

	Select all
	Brand Festo
	Manufacturer Series DSBC
	Model Number p 1376905
	Stroke 50mm
	Action Double
	Bore 40mm
	Pneumatic Connection G 1/4
	Port Connection G 1/4
	Piston Rod Thread Gender Male
	Cushioning Type Air
	Dimensions 211.9 x 54 x 54mm
	Diameter ISO8573-1:2010
	Height 54mm
	Length 211.9mm
	Width 54mm
	Absolute Maximum Pressure ISO8573-1:2010
	Maximum Operating Pressure 12 bar
	ISO Standard 15552
	VDMA Standard 24562
	Minimum Operating Temperature ISO8573-1:2010°C
	Test Weight 740 g @ 0 mm Stroke
	Piston Speed ISO8573-1:2010
	Stroke Interval Weight 37 g @ 10 mm Stroke
	Maximum Operating Temperature ISO8573-1:2010°C
	Weight 740g

COO (Country of Origin):: DE

Festo Pneumatic Cylinder, 40mm Bore, 50mm Stroke - DSBC Series - DSBC-40-50-PPSA-N3

This double-acting cylinder from Festo is an essential component of industrial process control systems. It comprises a piston made of high-alloy steel for optimal performance and long service life. This piston is housed in a protective cover made of die-cast aluminium that's both durable and lightweight. It works by reacting to the pressure difference in its air port, which cause the piston to extend and retract as required. There are also mounting slots for proximity sensors that adjust its movement based on the specific job at hand.

• Polyphenylene sulphide (PPS) cushioning to reduce noise and vibration and increase service life
• Wide stroke length range for versatility in application
• High advancing force of 754N (newtons) at 6 bars of pressure for heavy-duty applications
• Thermoplastic elastomer (TPE) seals to prevent air leakage

Application Information

• Process control systems
• Assembly lines
• Drinks production

What's the function of cushioning in cylinders?

Cushioning prevents damage to the cylinder head from the return force of the piston. It absorbs the shock that would result from the full inertia of the returning piston.
