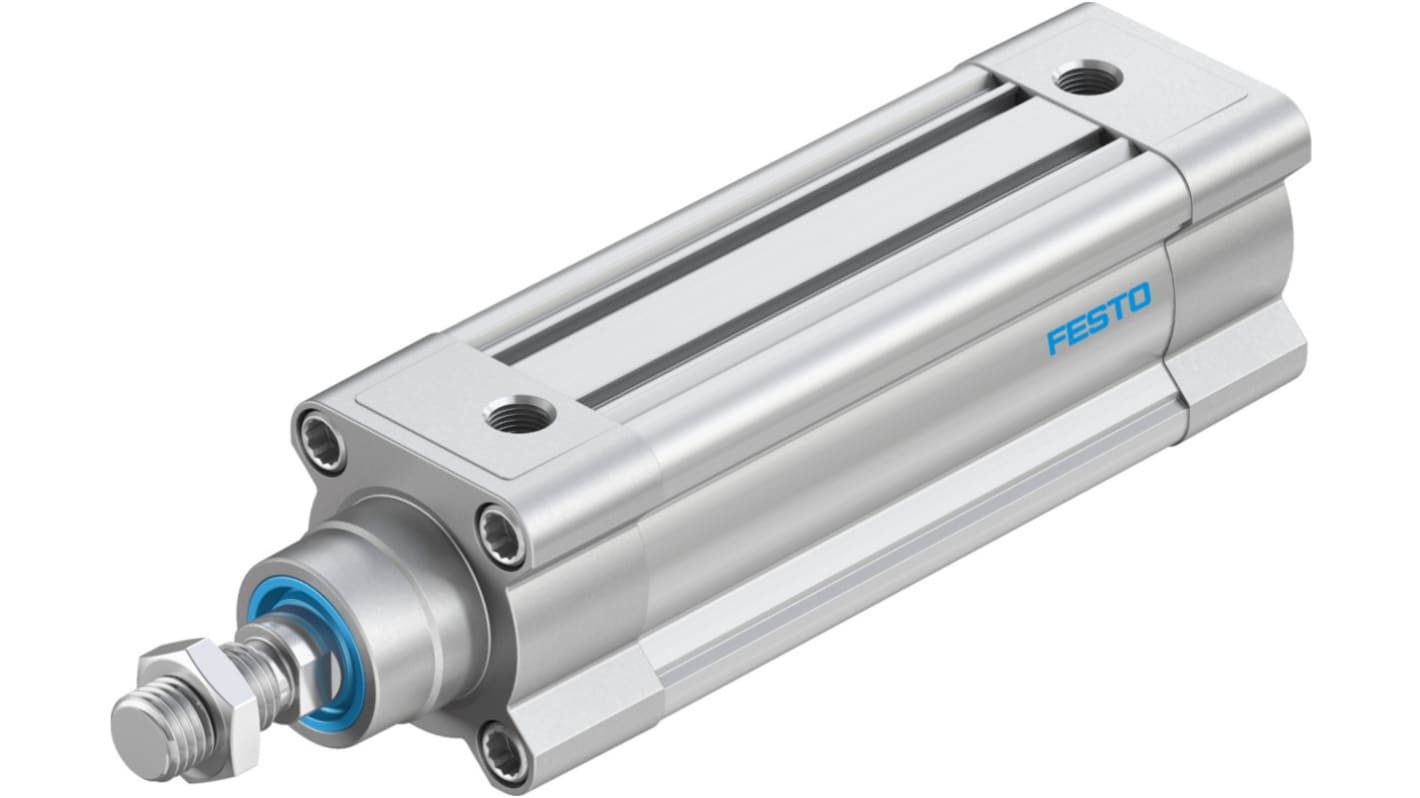

Festo Pneumatic Piston Rod Cylinder - 1376469, 32mm Bore, 50mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-5256
- Mfr. Part No.:
- DSBC-32-50-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£125.46
(exc. VAT)
£150.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 6 unit(s) ready to ship
- Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £125.46 |
*price indicative
- RS Stock No.:
- 121-5256
- Mfr. Part No.:
- DSBC-32-50-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376469 | |
Stroke | 50mm | |
Action | Double | |
Bore | 32mm | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 195.1 x 45 x 45mm | |
Width | 45mm | |
Height | 45mm | |
Length | 195.1mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
VDMA Standard | 24562 | |
Test Weight | 465 g @ 0 mm Stroke | |
Maximum Operating Temperature | +80°C | |
Weight | 465g | |
Minimum Operating Temperature | -20°C | |
Stroke Interval Weight | 27 g @ 10 mm Stroke | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376469 | ||
Stroke 50mm | ||
Action Double | ||
Bore 32mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 195.1 x 45 x 45mm | ||
Width 45mm | ||
Height 45mm | ||
Length 195.1mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
VDMA Standard 24562 | ||
Test Weight 465 g @ 0 mm Stroke | ||
Maximum Operating Temperature +80°C | ||
Weight 465g | ||
Minimum Operating Temperature -20°C | ||
Stroke Interval Weight 27 g @ 10 mm Stroke | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, 50mm Stroke, 32mm Bore - DSBC-32-50-PPSA-N3, Numeric Part Number: 1376469
This pneumatic piston rod cylinder efficiently converts compressed air into mechanical energy, making it suitable for various applications in industrial automation. With robust construction that complies with ISO 15552 standards, it ensures durability in diverse work environments. Its dual-acting mechanism allows for versatile operation across a range of tasks in both electrical and mechanical sectors.
Features & Benefits
• Self-adjusting pneumatic cushioning ensures smooth operation
• Compliant with ISO 15552 and VDMA 24562 for dependable performance
• Compact design optimises installation space
• Male thread on the piston rod simplifies mounting
• Lubricated operation enhances lifespan under specific conditions
• Compliant with ISO 15552 and VDMA 24562 for dependable performance
• Compact design optimises installation space
• Male thread on the piston rod simplifies mounting
• Lubricated operation enhances lifespan under specific conditions
Applications
• Used in robotic arms for precise movement
• Suitable for assembly lines requiring effective actuation
• Employed in material handling equipment for automation
• Utilised in clamping mechanisms for security
• Ideal for transporting goods within conveyor systems
• Suitable for assembly lines requiring effective actuation
• Employed in material handling equipment for automation
• Utilised in clamping mechanisms for security
• Ideal for transporting goods within conveyor systems
What type of medium is required for optimal operation?
It operates effectively with compressed air in accordance with ISO 8573-12010 standards.
Can this cylinder be installed in any orientation?
Yes, it supports optional mounting positions for flexibility.
What is the impact energy at the end positions?
The impact energy measures at 0.4 J in the end positions.
How does this product perform in varying temperatures?
It operates reliably within a temperature range of -20 to +80 °C.
