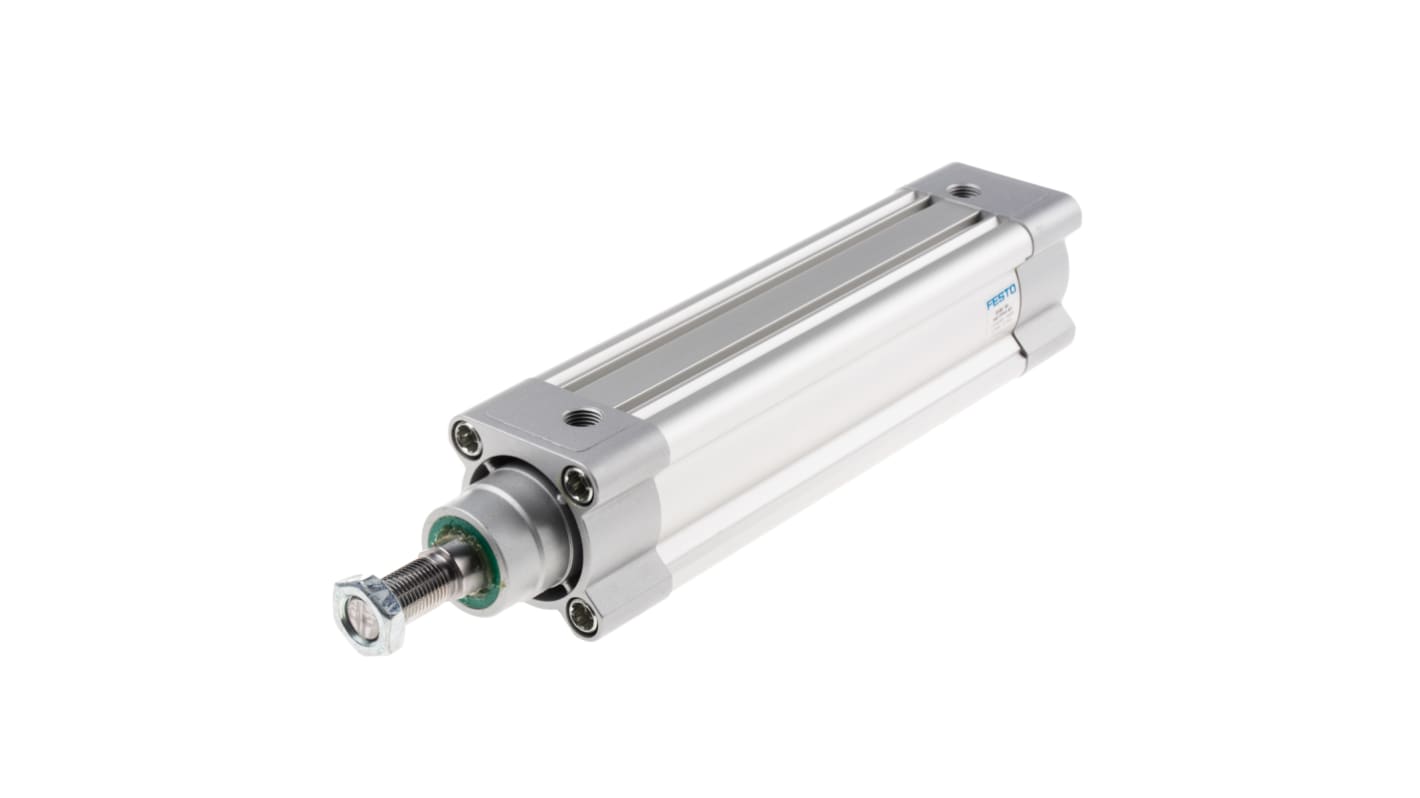

Festo Pneumatic Piston Rod Cylinder - 1376309, 50mm Bore, 160mm Stroke, DSBC Series, Double Acting
- RS Stock No.:
- 121-4767
- Mfr. Part No.:
- DSBC-50-160-PPSA-N3
- Brand:
- Festo
Subtotal (1 unit)*
£177.51
(exc. VAT)
£213.01
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 4 unit(s) shipping from 16 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £177.51 |
*price indicative
- RS Stock No.:
- 121-4767
- Mfr. Part No.:
- DSBC-50-160-PPSA-N3
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSBC | |
Model Number p | 1376309 | |
Action | Double | |
Bore | 50mm | |
Stroke | 160mm | |
Port Connection | G 1/4 | |
Pneumatic Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 337.8 x 64 x 64mm | |
Height | 64mm | |
Width | 64mm | |
Length | 337.8mm | |
Maximum Operating Pressure | 12 bar | |
ISO Standard | 15552 | |
Stroke Interval Weight | 56 g @ 10 mm Stroke | |
Weight | 2.1kg | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Test Weight | 1190 g @ 0 mm Stroke | |
VDMA Standard | 24562 | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSBC | ||
Model Number p 1376309 | ||
Action Double | ||
Bore 50mm | ||
Stroke 160mm | ||
Port Connection G 1/4 | ||
Pneumatic Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 337.8 x 64 x 64mm | ||
Height 64mm | ||
Width 64mm | ||
Length 337.8mm | ||
Maximum Operating Pressure 12 bar | ||
ISO Standard 15552 | ||
Stroke Interval Weight 56 g @ 10 mm Stroke | ||
Weight 2.1kg | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Test Weight 1190 g @ 0 mm Stroke | ||
VDMA Standard 24562 | ||
- COO (Country of Origin):
- DE
Festo DSBC Series Pneumatic Piston Rod Cylinder, 50mm Bore, 160mm Stroke - DSBC-50-160-PPSA-N3, Numeric Part Number: 1376309
This pneumatic piston rod cylinder is designed for precision in industrial applications. With a bore of 50mm and a stroke length of 160mm, this air cylinder operates effectively within a range of -20 °C to +80 °C. Constructed to conform to ISO 15552 standards, it ensures compatibility across a variety of pneumatic systems, making it a reliable choice for professionals.
Features & Benefits
• Double-acting design allows movement in both directions
• Self-adjusting pneumatic cushioning for smooth operation
• High maximum operating pressure of 12 bar for robustness
• Corrosion-resistant materials extend service life
• Various mounting options provide installation flexibility
• Cleanroom class 6 compliance ensures suitability for sensitive environments
• Self-adjusting pneumatic cushioning for smooth operation
• High maximum operating pressure of 12 bar for robustness
• Corrosion-resistant materials extend service life
• Various mounting options provide installation flexibility
• Cleanroom class 6 compliance ensures suitability for sensitive environments
Applications
• Utilised in automation systems for precise handling tasks
• Employed in packaging machinery for efficient operation
• Integrated into robotics for accurate movement control
• Used in assembly lines for reliable product manipulation
• Employed in packaging machinery for efficient operation
• Integrated into robotics for accurate movement control
• Used in assembly lines for reliable product manipulation
What are the advantages of using this cylinder's self-adjusting cushioning?
The self-adjusting cushioning enhances operational smoothness by absorbing shock during end positions, reducing wear on components and preventing damage to the system. This feature ensures consistent performance and longevity during high-frequency cycling operations.
What materials are used in its construction, and how do they affect performance?
The cylinder is made from components such as coated die-cast aluminium and high-alloy steel, which provide durability and corrosion resistance. Additionally, the use of TPE seals ensures reliable performance in various operating conditions, including lubricated environments.
How does the design influence usability across different mounting positions?
The versatile design accommodates various mounting options, whether via female threads or accessories, allowing for quick and easy installation in diverse setups. This adaptability caters to the specific needs of any project or task.
