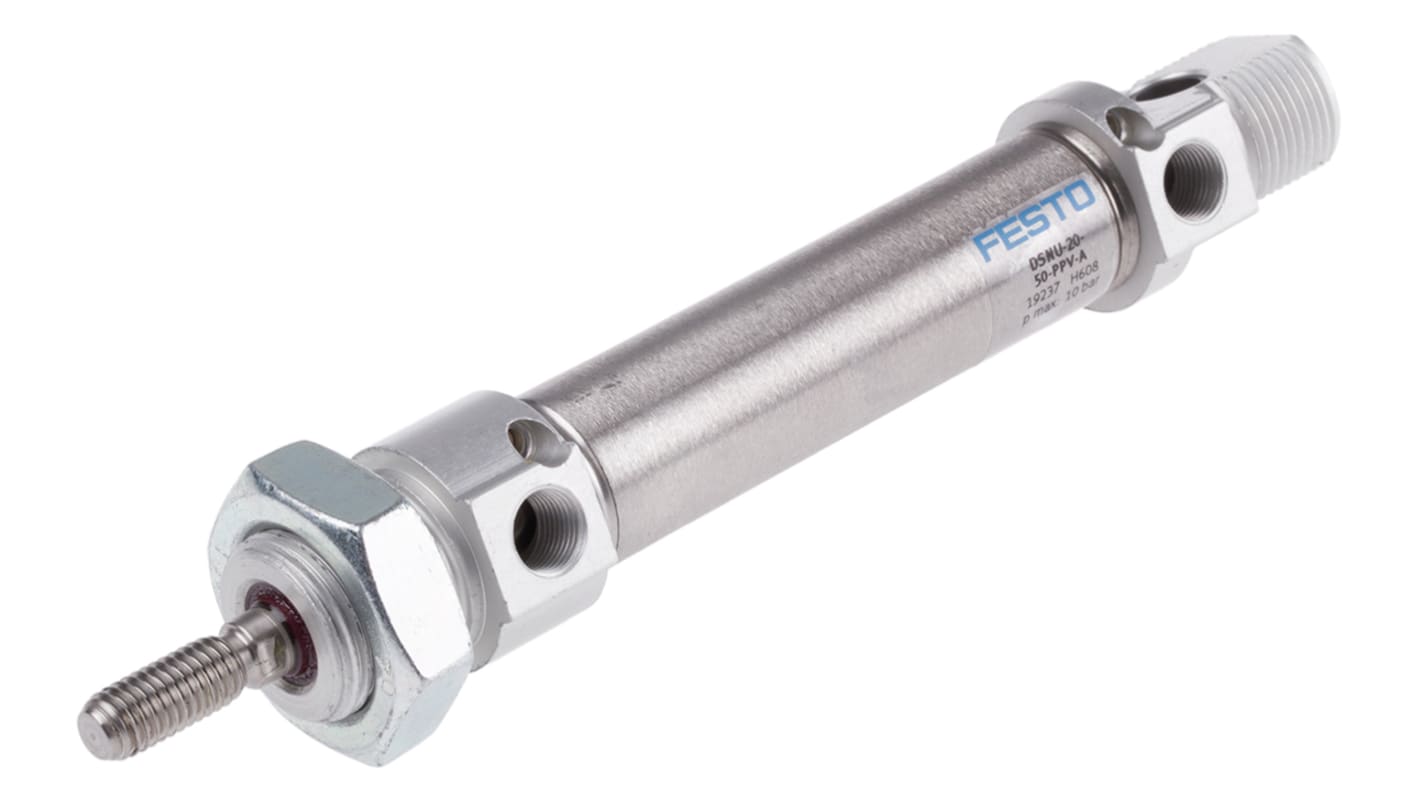

Festo Pneumatic Cylinder - 19237, 20mm Bore, 50mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4644
- Mfr. Part No.:
- DSNU-20-50-PPV-A
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£64.11
(exc. VAT)
£76.93
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 29 unit(s) ready to ship
- Plus 15 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £64.11 |
| 5 - 9 | £61.55 |
| 10 + | £58.99 |
*price indicative
- RS Stock No.:
- 121-4644
- Mfr. Part No.:
- DSNU-20-50-PPV-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Festo | |
| Manufacturer Series | DSNU | |
| Model Number p | 19237 | |
| Action | Double | |
| Stroke | 50mm | |
| Bore | 20mm | |
| Port Connection | G 1/8 | |
| Pneumatic Connection | G 1/8 | |
| Piston Rod Thread Gender | Male | |
| Cushioning Type | Air | |
| Dimensions | 27 x 182mm | |
| Diameter | 27mm | |
| Length | 182mm | |
| Maximum Operating Pressure | 10 bar | |
| ISO Standard | ISO 6432 | |
| VDMA Standard | VDMA24364-B1/B2-L | |
| Maximum Operating Temperature | +80°C | |
| Minimum Operating Temperature | -20°C | |
| Weight | 222.8g | |
Select all | ||
|---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 19237 | ||
Action Double | ||
Stroke 50mm | ||
Bore 20mm | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 27 x 182mm | ||
Diameter 27mm | ||
Length 182mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Weight 222.8g | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Cylinder, Air Cushioning Type, 222.8g Weight - DSNU-20-50-PPV-A
Eject, position or clamp small components using this pneumatic cylinder from Festo. As it's a double-acting device, it gives you control over the stroke in both directions, boosting accuracy. Air cushioning is on hand to keep your system running smoothly and quietly with minimal shock or vibration. The cylinder has industry-standard G1/8 connections, making it simple to connect to your pneumatic setup. A broad operating pressure range between 1 and 10 bar means you can rely on it for use in heavy-duty applications.
Features & Benefits
• Wide operating temperature of -20°C to +80°C makes it suitable for harsh industrial environments
• Stainless steel material resists corrosion to help keep your system clean
• Wrought aluminium alloy bearing and end caps combine strength with a light weight of 222.8g to minimise strain on your system
• Stainless steel material resists corrosion to help keep your system clean
• Wrought aluminium alloy bearing and end caps combine strength with a light weight of 222.8g to minimise strain on your system
Applications
• Factory automation
• Transport
• Packaging plants
• Transport
• Packaging plants
What's a double-acting cylinder?
A double-acting pneumatic cylinder has two ports – one on each end – that allow compressed air to flow through it and power up the stroke in both directions. This gives you more accuracy than a single-acting cylinder with a single port as that has to use a spring for the return stroke.
