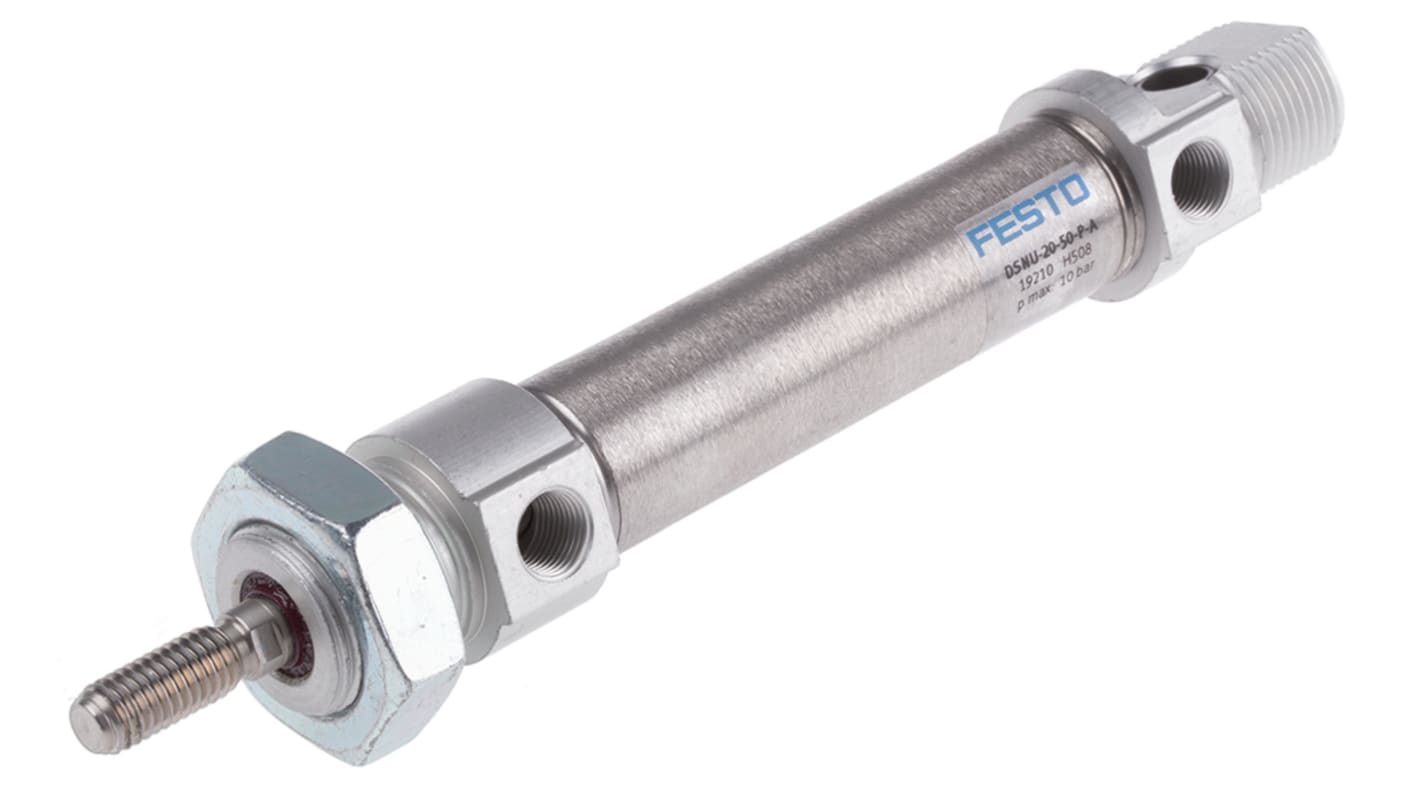

Festo Pneumatic Cylinder - 19210, 20mm Bore, 50mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4642
- Mfr. Part No.:
- DSNU-20-50-P-A
- Brand:
- Festo
Save 8% when you buy 10 units
Subtotal (1 unit)*
£55.25
(exc. VAT)
£66.30
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 15 unit(s) ready to ship
- Plus 23 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £55.25 |
5 - 9 | £53.04 |
10 + | £50.83 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£64.11
(exc. VAT)
£76.93
(inc. VAT)
- RS Stock No.:
- 121-4642
- Mfr. Part No.:
- DSNU-20-50-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 19210 | |
Action | Double | |
Bore | 20mm | |
Stroke | 50mm | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Dimensions | 27 x 182mm | |
Length | 182mm | |
Diameter | 27mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | 6432 | |
Minimum Operating Temperature | -20°C | |
Weight | 222.8g | |
Maximum Operating Temperature | +80°C | |
VDMA Standard | 24364 | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 19210 | ||
Action Double | ||
Bore 20mm | ||
Stroke 50mm | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Dimensions 27 x 182mm | ||
Length 182mm | ||
Diameter 27mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard 6432 | ||
Minimum Operating Temperature -20°C | ||
Weight 222.8g | ||
Maximum Operating Temperature +80°C | ||
VDMA Standard 24364 | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Cylinder, 222.8g Weight, G1/8 Port Connection - DSNU-20-50-P-A
Pair up this pneumatic cylinder from Festo with a proximity sensor (such as 253-9247) for spot-on positioning tasks. It's ideal for automated industrial equipment as it's designed to precisely and repeatedly place small components. To keep equipment running efficiently, the device's cushioning minimises vibration, shock and oscillation. The double-acting unit uses compressed air to extend and retract its piston, giving you the benefit of complete control over its movement. With flexible cushioning rings, this pneumatic cylinder is ideally suited to low-speed applications and small loads.
Features & Benefits
• Standard metric mounting dimensions, so you can assemble it in any position
• Wide operating pressure range between 1 and 10 bar for versatility
• Compact length of 182mm and diameter of 27mm to keep the design of equipment compact and efficient
• High-alloy steel rod and barrel resists corrosion and chemicals for longevity
• Wide operating pressure range between 1 and 10 bar for versatility
• Compact length of 182mm and diameter of 27mm to keep the design of equipment compact and efficient
• High-alloy steel rod and barrel resists corrosion and chemicals for longevity
Applications
• Paper and pulp mills
• Automated assembly lines
• Oil and gas industries
• Automated assembly lines
• Oil and gas industries
How does this pneumatic cylinder retract?
The component is double acting with dual connection ports, so it uses compressed air to move both forwards and backwards. As there are no mechanical parts such as springs, there's hardly any need for maintenance.
