Festo Pneumatic Piston Rod Cylinder - 19221, 25mm Bore, 50mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4687
- Mfr. Part No.:
- DSNU-25-50-P-A
- Brand:
- Festo
Save 8% when you buy 10 units
Subtotal (1 unit)*
£58.70
(exc. VAT)
£70.44
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 14 unit(s) ready to ship
- Plus 37 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £58.70 |
5 - 9 | £56.36 |
10 + | £54.00 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£50.88
(exc. VAT)
£61.06
(inc. VAT)
- RS Stock No.:
- 121-4687
- Mfr. Part No.:
- DSNU-25-50-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 19221 | |
Bore | 25mm | |
Stroke | 50mm | |
Action | Double | |
Port Connection | G 1/8 | |
Pneumatic Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastomer | |
Dimensions | 27 x 191.5mm | |
Length | 191.5mm | |
Diameter | 27mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
VDMA Standard | VDMA24364-B1/B2-L | |
Maximum Operating Temperature | +80°C | |
Weight | 293g | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 19221 | ||
Bore 25mm | ||
Stroke 50mm | ||
Action Double | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastomer | ||
Dimensions 27 x 191.5mm | ||
Length 191.5mm | ||
Diameter 27mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Maximum Operating Temperature +80°C | ||
Weight 293g | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE

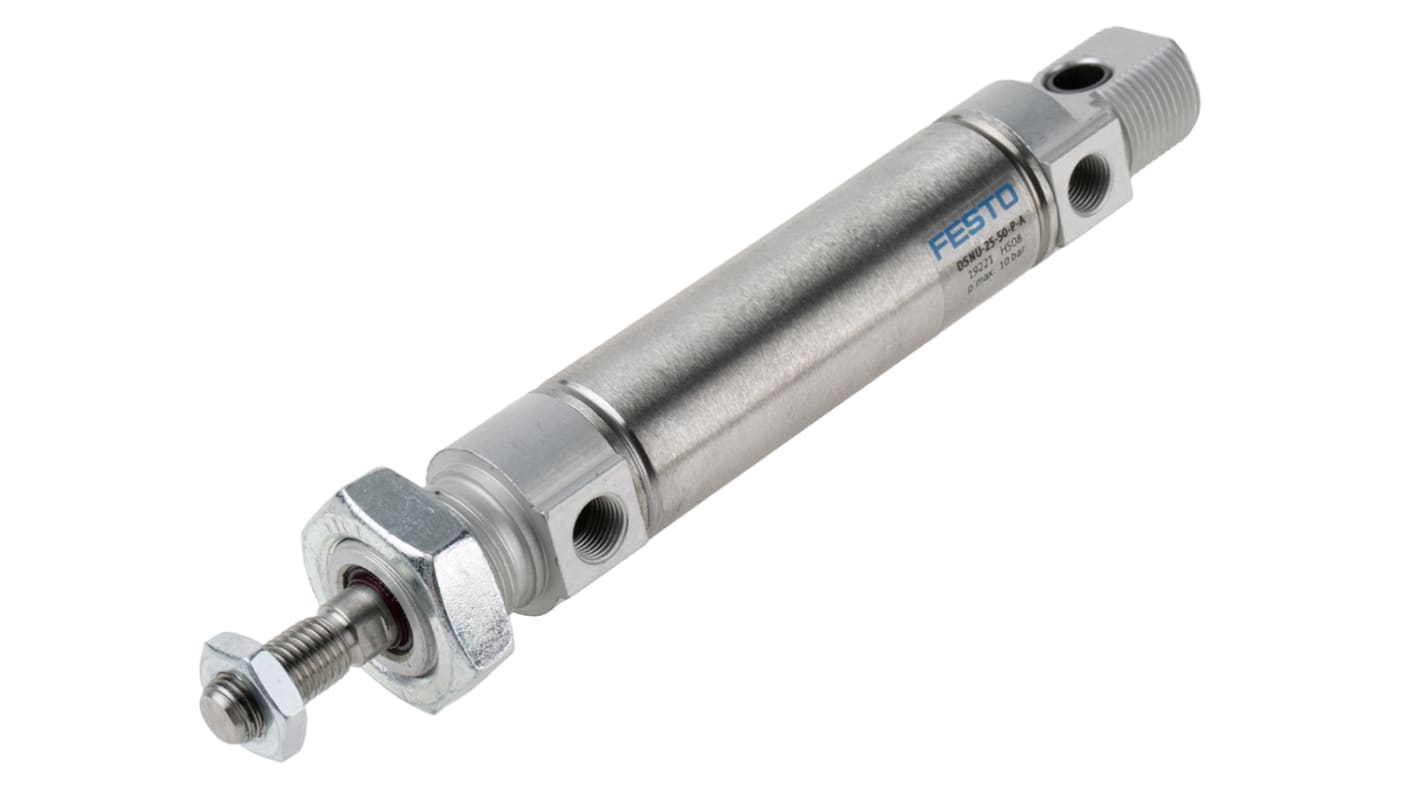

Festo Pneumatic Piston Rod Cylinder, G1/8 Port Connection, 293g Weight - DSNU-25-50-P-A
To keep your positioning equipment running without a hitch, use this pneumatic piston rod cylinder from Festo. Its short stroke length of 50mm makes it just what you need to fine-tune the positioning or clamping of small components. As the rod is made from corrosion-resistant high-alloy steel, you can count on its longevity in harsh or humid operating conditions. Flexible cushioning rings give it a soft touch, which cuts down on vibration and noise. Low vibration also allows for spot-on accuracy in your positioning tasks.
Features & Benefits
• Nitrile rubber seals withstand high pressure with minimal risk of cracking
• Wide ambient temperature range of -20°C to +80°C means it's suitable to use in extreme settings
• Extended service life, thanks to its cushioning rings that reduce wear
• Wide ambient temperature range of -20°C to +80°C means it's suitable to use in extreme settings
• Extended service life, thanks to its cushioning rings that reduce wear
Applications
• Packaging facilities
• Breweries
• Pharmaceutical industry
• Component manufacturing
• Breweries
• Pharmaceutical industry
• Component manufacturing
In which position can I mount this pneumatic piston rod cylinder?
You can mount this versatile component in any position that suits your setup. Festo's wide range of mounting accessories lets you choose the best spot to install the device.
