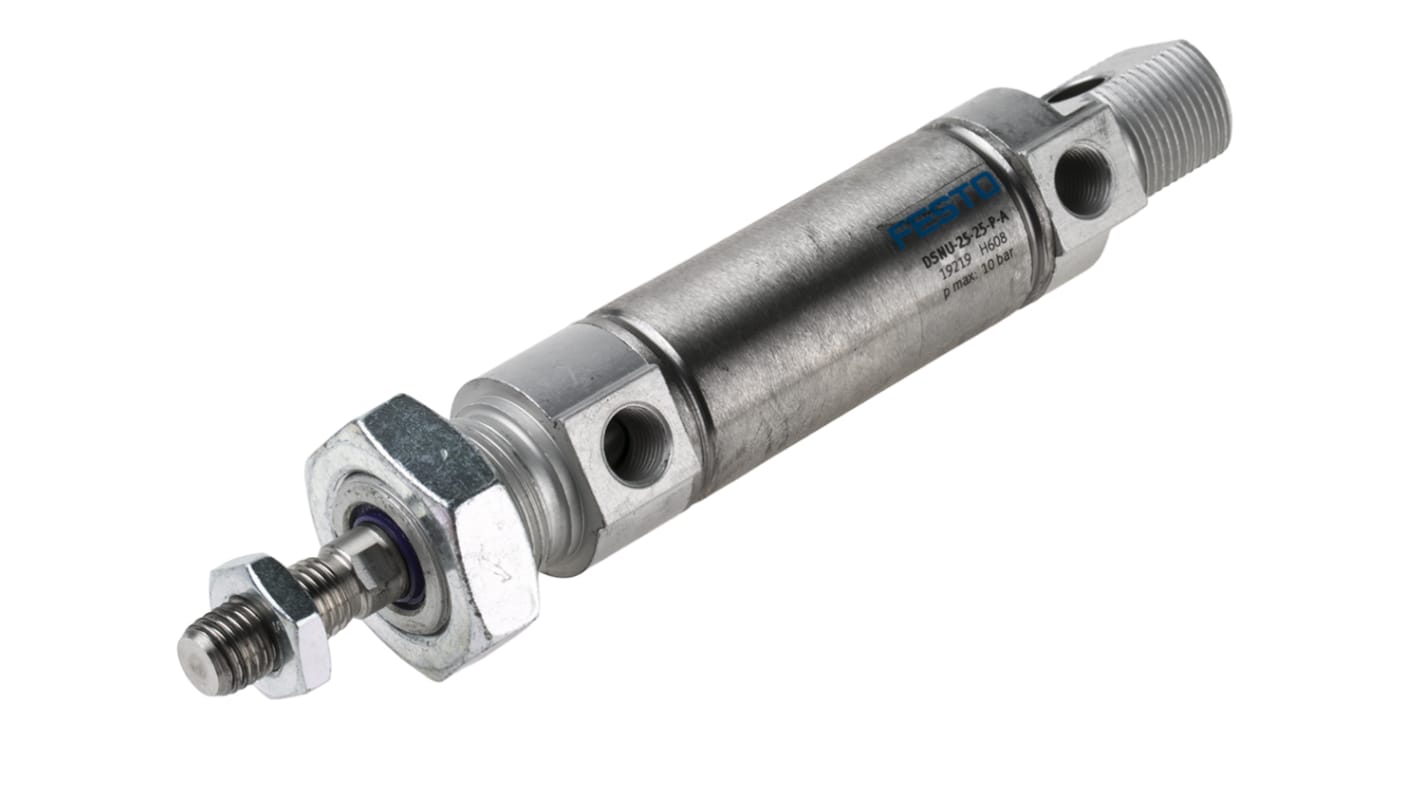

Festo Pneumatic Piston Rod Cylinder - 19219, 25mm Bore, 25mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4677
- Mfr. Part No.:
- DSNU-25-25-P-A
- Brand:
- Festo
Save 7% when you buy 10 units
Subtotal (1 unit)*
£57.97
(exc. VAT)
£69.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 27 unit(s) ready to ship
- Plus 30 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £57.97 |
5 - 9 | £55.62 |
10 + | £53.34 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£49.29
(exc. VAT)
£59.15
(inc. VAT)
- RS Stock No.:
- 121-4677
- Mfr. Part No.:
- DSNU-25-25-P-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 19219 | |
Action | Double | |
Stroke | 25mm | |
Bore | 25mm | |
Port Connection | G 1/8 | |
Pneumatic Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Elastic | |
Dimensions | 27 x 166.5mm | |
Length | 166.5mm | |
Diameter | 27mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | 6432 | |
VDMA Standard | 24364 | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Weight | 265.5g | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 19219 | ||
Action Double | ||
Stroke 25mm | ||
Bore 25mm | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Elastic | ||
Dimensions 27 x 166.5mm | ||
Length 166.5mm | ||
Diameter 27mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard 6432 | ||
VDMA Standard 24364 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Weight 265.5g | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Piston Rod Cylinder, Stainless Steel Piston Rod, 1 to 10 Bar Operating Pressure - DSNU-25-25-P-A
Want help pushing loads around in your industrial system? Give things a nudge with this pneumatic piston rod cylinder from Festo. Compressed air drives it in both directions, for accuracy and efficiency. A durable wrought aluminium alloy body is on hand to shrug off corrosion and impact. As the unit's compact, with a length of 166.5mm and a diameter of 27mm, it's suitable for tight setups. To save time and hassle, this cylinder has a widely compatible G1/8 threaded port, meaning you don't need complex tools for installation.
Features & Benefits
• Flexible cushioning rings and plates at both ends prevent noise and vibration
• Light weight of 238g for easy handling during installation
• Operating temperature range between -20°C and +80°C, for safe use in challenging settings
• Stroke length of 25mm supports short-range movement
• Compatible with proximity sensors for automated control
• Light weight of 238g for easy handling during installation
• Operating temperature range between -20°C and +80°C, for safe use in challenging settings
• Stroke length of 25mm supports short-range movement
• Compatible with proximity sensors for automated control
Applications
• Pharmaceutical production plants
• Medical equipment
• Automotive industry
• Medical equipment
• Automotive industry
What do the seals on this pneumatic piston rod cylinder do?
The unit's NBR and TPE-U(PU) seals stop dust from contaminating the attached pneumatic system, ensuring everything ticks along smoothly.
