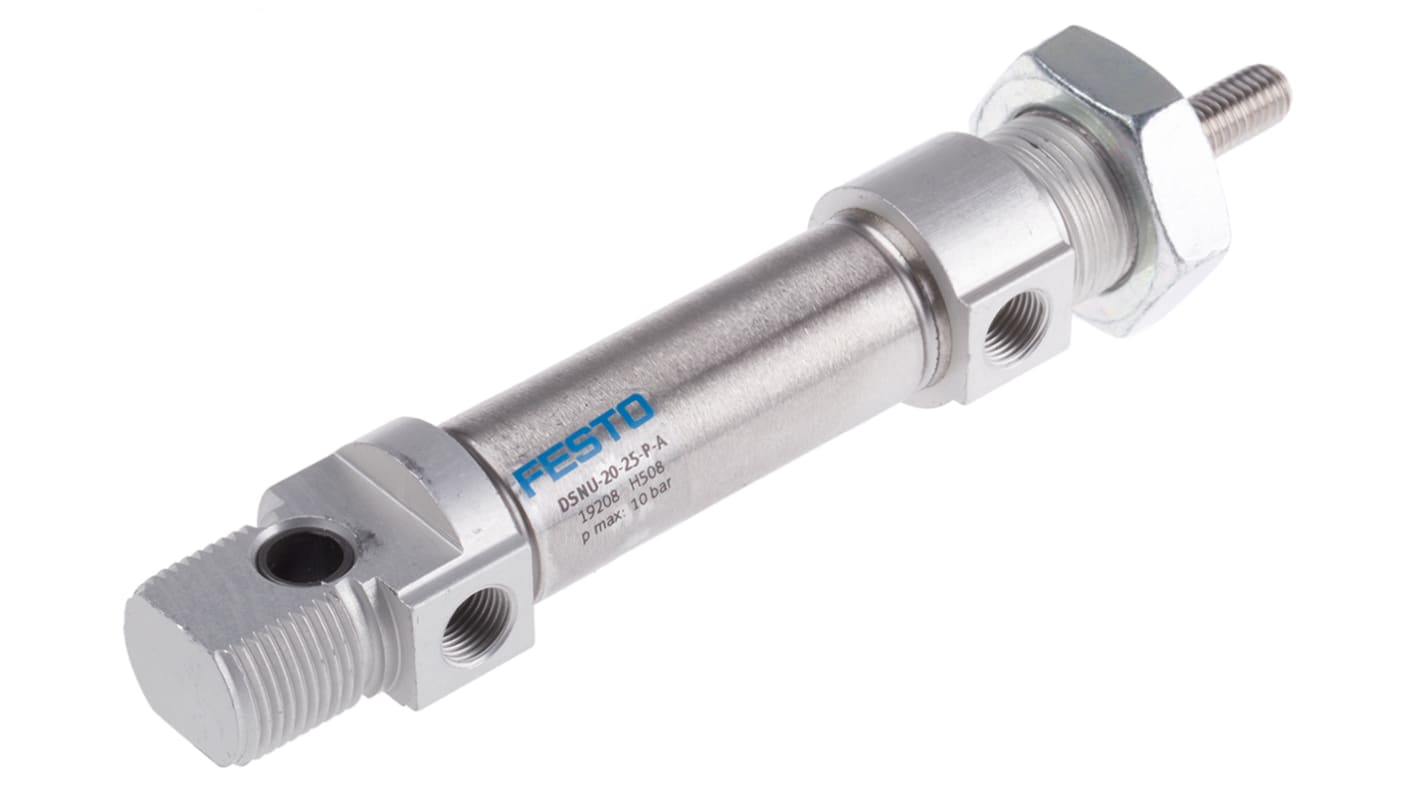

Festo Pneumatic Cylinder - 19208, 20mm Bore, 25mm Stroke, DSNU Series, Double Acting

View this category
Save 8% when you buy 10 units

Subtotal (1 unit)*

£54.62

(exc. VAT)

£65.54

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 3 unit(s) ready to ship
  • Plus 15 unit(s) ready to ship from another location
  • Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 4£54.62
5 - 9£52.44
10 +£50.24

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

presentation
RS PRO Pneumatic Piston Rod Cylinder - 20mm Bore, 25mm Stroke, ISO 6432 Series, Double Acting
RS Stock No.
304-3791

Each

£49.84

(exc. VAT)

£59.81

(inc. VAT)

RS Stock No.:
121-4631
Mfr. Part No.:
DSNU-20-25-P-A
Brand:
Festo
Find similar products by selecting one or more attributes.
Select all

Brand

Festo

Manufacturer Series

DSNU

Model Number p

19208

Action

Double

Stroke

25mm

Bore

20mm

Port Connection

G 1/8

Pneumatic Connection

G 1/8

Piston Rod Thread Gender

Male

Cushioning Type

Elastomer

Dimensions

27 x 157mm

Length

157mm

Diameter

27mm

Maximum Operating Pressure

10 bar

ISO Standard

ISO 6432

VDMA Standard

VDMA24364-B1/B2-L

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+80°C

Weight

204.8g

COO (Country of Origin):
DE

Festo Pneumatic Cylinder, 1 to 10 Bar Operating Pressure, Elastomer Cushioning Pads Included - DSNU-20-25-P-A


Looking for a piston rod to give you linear movements in harsh settings? Head straight for this pneumatic cylinder from Festo. Its 20mm piston moves up to 25mm with close to 200N of force on its return and advance strokes, so it's a good shout for shifting heavy industrial machinery. There are flexible elastomer cushioning pads at both ends that combine with a built-in proximity sensor to prevent wear or damage in the cylinder's end range. This also makes it safe for double-action tasks, meaning it can drive motion efficiently in both directions.

Features & Benefits


• Rod and barrel made of hardwearing steel for a long service life
• Can be mounted in any position for versatility
• NBR and TPE seals work to prevent compressed air leaks
• Anodised aluminium alloy cover protects against corrosion

Applications


• Chemical processing
• Food manufacturing
• Pharmaceutical production
• Transportation

What temperatures can I use this pneumatic cylinder in?


A broad operating temperature range of -20°C to +80°C means you can trust this component is safe to use in challenging conditions.
