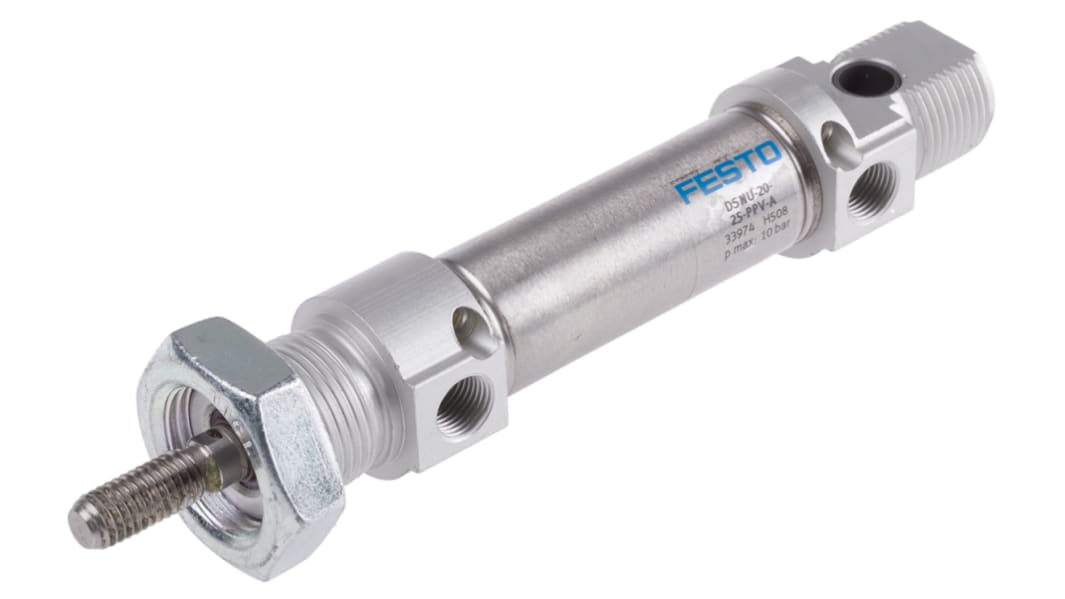

Festo Pneumatic Cylinder - 33974, 20mm Bore, 25mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4634
- Mfr. Part No.:
- DSNU-20-25-PPV-A
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£63.47
(exc. VAT)
£76.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 30 unit(s) ready to ship
- Plus 18 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £63.47 |
5 - 9 | £60.93 |
10 + | £58.40 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£61.61
(exc. VAT)
£73.93
(inc. VAT)
- RS Stock No.:
- 121-4634
- Mfr. Part No.:
- DSNU-20-25-PPV-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 33974 | |
Action | Double | |
Stroke | 25mm | |
Bore | 20mm | |
Port Connection | G 1/8 | |
Pneumatic Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Pneumatic Cushioning | |
Dimensions | 27 x 157mm | |
Length | 157mm | |
Diameter | 27mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | 6432 | |
VDMA Standard | 24364 | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Weight | 204.8g | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 33974 | ||
Action Double | ||
Stroke 25mm | ||
Bore 20mm | ||
Port Connection G 1/8 | ||
Pneumatic Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Cushioning | ||
Dimensions 27 x 157mm | ||
Length 157mm | ||
Diameter 27mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard 6432 | ||
VDMA Standard 24364 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Weight 204.8g | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Cylinder, Adjustable Cushioning, 1 to 10 Bar Operating Pressure - DSNU-20-25-PPV-A
This pneumatic cylinder from Festo is just what you need to keep your robotic setup running at full steam. It helps automated equipment achieve precise and repeatable linear motion, so it's ideal for accurate positioning on production lines. To quickly match the needs of changing loads and speeds, the unit features self-adjusting end cushioning. This saves you time during commissioning, as there's no need for manual resetting. Thanks to the robust wrought aluminium material used for the bearing and end caps, you can count on this cylinder to go the extra mile in demanding environments.
Features & Benefits
• Corrosion-resistant stainless steel barrel for compatibility with humid settings
• Wide operating pressure range between 1 and 10 bar, so it's a versatile option
• Air-cushioning absorbs the impact of high energy without damaging components
• Nitrile rubber seals retain their shape, even when put under high pressure
• Wide operating pressure range between 1 and 10 bar, so it's a versatile option
• Air-cushioning absorbs the impact of high energy without damaging components
• Nitrile rubber seals retain their shape, even when put under high pressure
Applications
• Automotive manufacturing
• Printing industry
• Food and beverage processing
• Lifting and hoisting equipment
• Printing industry
• Food and beverage processing
• Lifting and hoisting equipment
Does this pneumatic cylinder move in a forward or backward direction?
This versatile device is double-acting, giving you the benefit of controlled linear motion in both a forward and backward direction.
