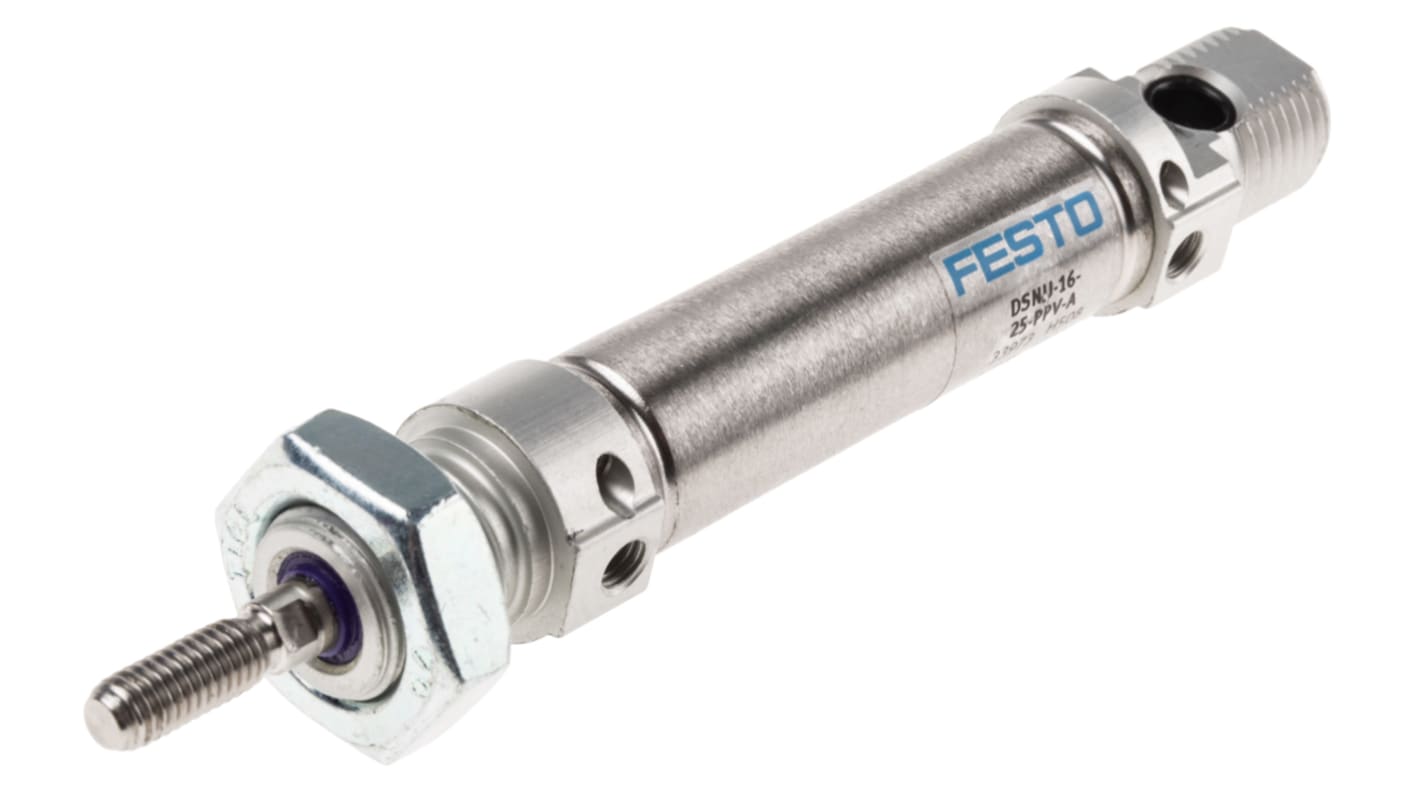

Festo Pneumatic Cylinder - 33973, 16mm Bore, 25mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4730
- Mfr. Part No.:
- DSNU-16-25-PPV-A
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£57.63
(exc. VAT)
£69.16
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £57.63 |
5 - 9 | £55.32 |
10 + | £53.00 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£56.16
(exc. VAT)
£67.39
(inc. VAT)
- RS Stock No.:
- 121-4730
- Mfr. Part No.:
- DSNU-16-25-PPV-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 33973 | |
Action | Double | |
Stroke | 25mm | |
Bore | 16mm | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Pneumatic Cushioning | |
Dimensions | 20 x 136mm | |
Length | 136mm | |
Diameter | 20mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | 6432 | |
VDMA Standard | 24364 | |
Maximum Operating Temperature | +80°C | |
Minimum Operating Temperature | -20°C | |
Weight | 101.4g | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 33973 | ||
Action Double | ||
Stroke 25mm | ||
Bore 16mm | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Cushioning | ||
Dimensions 20 x 136mm | ||
Length 136mm | ||
Diameter 20mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard 6432 | ||
VDMA Standard 24364 | ||
Maximum Operating Temperature +80°C | ||
Minimum Operating Temperature -20°C | ||
Weight 101.4g | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Cylinder, 16mm Piston Diameter, 1 to 10 Bar Operating Pressure - DSNU-16-25-PPV-A
Up, down, left or right – keep your operation on a precise track with this pneumatic piston rod cylinder from Festo. It creates the linear motion needed for your industrial processes. As it's double-acting, compressed air drives the piston in both directions, delivering accuracy and steady power. Flexible cushioning at each end cuts out wear caused by impact and boosts the lifespan of the device. For further durability, it's made from high-alloy steel that stands up to corrosion.
Features & Benefits
• NBR and TPE-U(PU) seals for an airtight network and optimal performance
• Works at its best in a wide operating temperature range between -20°C and +80°C
• M6 piston thread is widely compatible with standard fittings
• Lightweight 89.9g unit won't strain your network.
• Works at its best in a wide operating temperature range between -20°C and +80°C
• M6 piston thread is widely compatible with standard fittings
• Lightweight 89.9g unit won't strain your network.
Applications
• Automotive industry
• Medical imaging devices
• Military systems
• Aerospace applications
• Medical imaging devices
• Military systems
• Aerospace applications
How big is this pneumatic piston rod cylinder?
The compact device has a length of 136mm with a 16mm bore diameter. This means it easily fits into tight spaces.
What pressure range can I use with the cylinder?
You can use this versatile product in applications with operating pressures between 1 and 10 bar.
