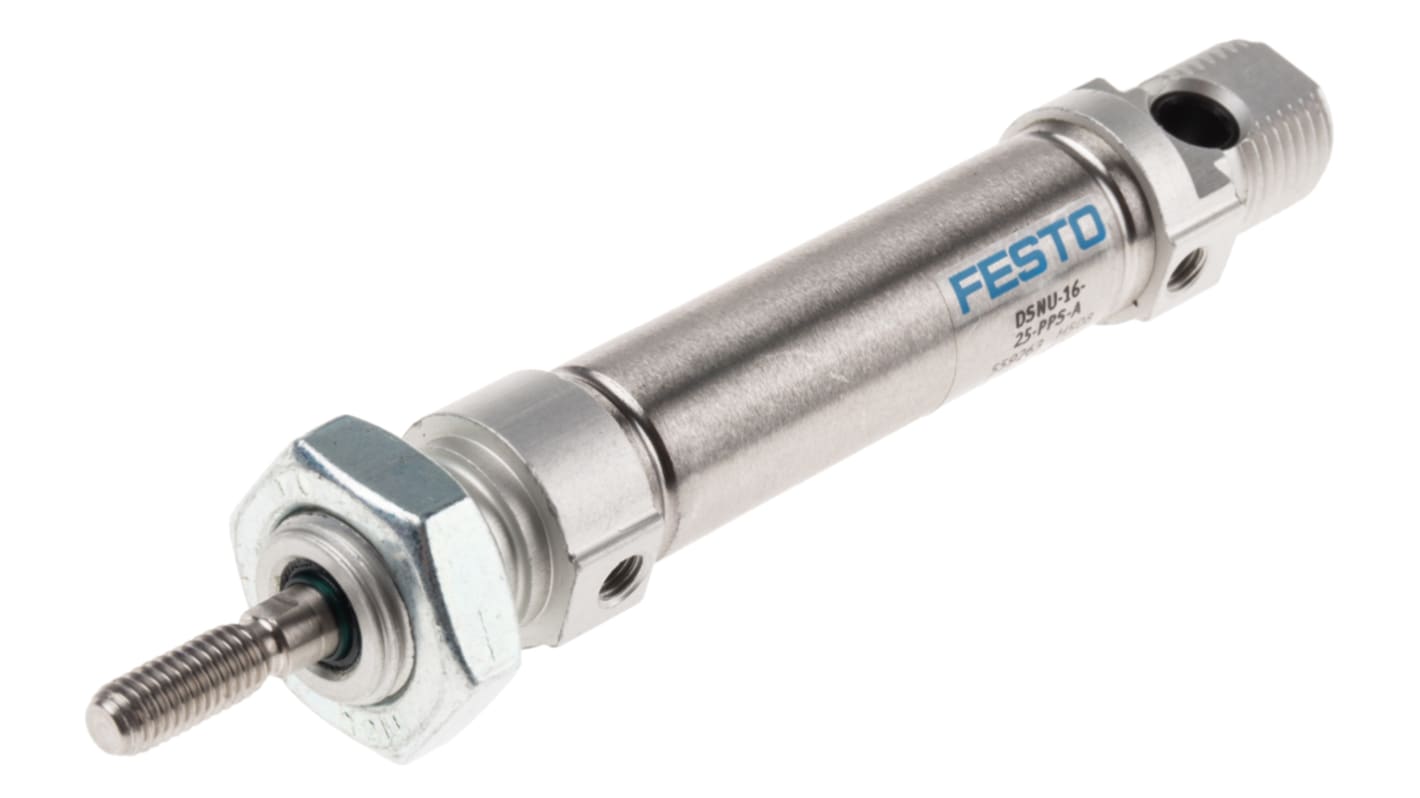

Festo Pneumatic Cylinder - 559263, 16mm Bore, 25mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4729
- Mfr. Part No.:
- DSNU-16-25-PPS-A
- Brand:
- Festo
Save 8% when you buy 10 units
Subtotal (1 unit)*
£56.16
(exc. VAT)
£67.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 10 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £56.16 |
5 - 9 | £53.90 |
10 + | £51.66 |
*price indicative
- RS Stock No.:
- 121-4729
- Mfr. Part No.:
- DSNU-16-25-PPS-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 559263 | |
Action | Double | |
Stroke | 25mm | |
Bore | 16mm | |
Pneumatic Connection | M5 | |
Port Connection | M5 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 20 x 136mm | |
Diameter | 20mm | |
Length | 136mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
Maximum Operating Temperature | +80°C | |
Weight | 101.4g | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | VDMA24364-B1/B2-L | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 559263 | ||
Action Double | ||
Stroke 25mm | ||
Bore 16mm | ||
Pneumatic Connection M5 | ||
Port Connection M5 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 20 x 136mm | ||
Diameter 20mm | ||
Length 136mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Maximum Operating Temperature +80°C | ||
Weight 101.4g | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard VDMA24364-B1/B2-L | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Cylinder, M5 Port Connection, Air Cushioning - DSNU-16-25-PPS-A
Save time assembling and setting up your system with this pneumatic cylinder from Festo. It has self-adjusting air cushioning and a special extension piston that controls the venting of the air cushion. This means there's no need for any adjusting screw that has to be set manually, freeing you up for other tasks. The cushioning adapts to various loads and speeds to make sure the piston travels smoothly and dynamically to its end position every time.
Features & Benefits
• Double-acting design with two ports gives you accurate bidirectional control
• Wide operating temperature range of -20°C to +80°C means you can use it in harsh industrial environments
• High-alloy steel piston rod and cylinder barrel resist corrosion for a long service life
• M5 threaded connectors offer easy attachment
• Wide operating temperature range of -20°C to +80°C means you can use it in harsh industrial environments
• High-alloy steel piston rod and cylinder barrel resist corrosion for a long service life
• M5 threaded connectors offer easy attachment
Applications
• Paper and pulp mills
• Material handling
• Medical imaging systems
• Material handling
• Medical imaging systems
What's the stroke length of this cylinder?
The unit has a stroke of 25mm, making it an ideal choice for precision positioning of small parts. This could be for work such as clamping and holding actions in a manufacturing process or for machine tooling.
