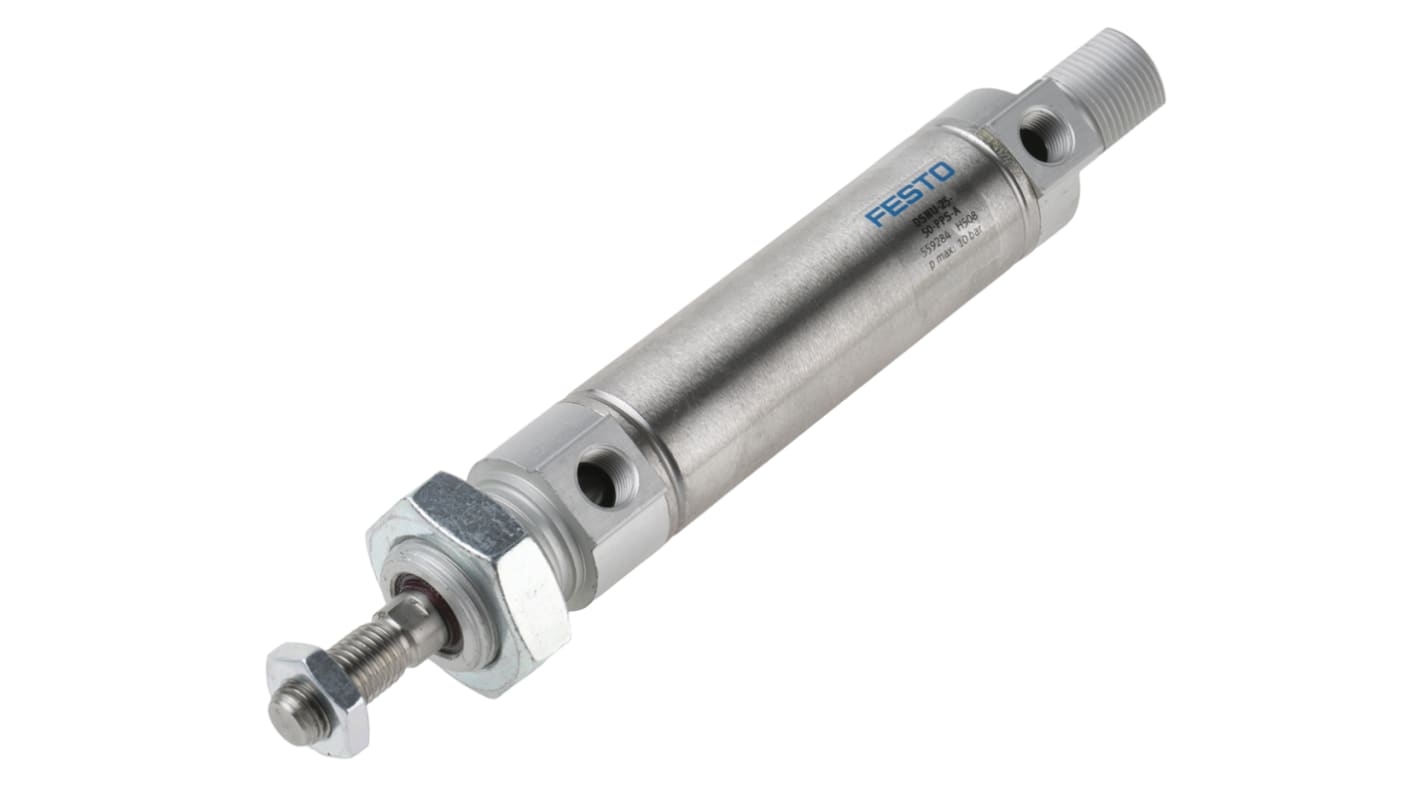

Festo Pneumatic Cylinder - 559284, 25mm Bore, 50mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 121-4688
- Mfr. Part No.:
- DSNU-25-50-PPS-A
- Brand:
- Festo
Bulk discount available
Subtotal (1 unit)*
£66.72
(exc. VAT)
£80.06
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 22 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £66.72 |
5 - 9 | £64.04 |
10 + | £61.38 |
*price indicative
- RS Stock No.:
- 121-4688
- Mfr. Part No.:
- DSNU-25-50-PPS-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 559284 | |
Bore | 25mm | |
Stroke | 50mm | |
Action | Double | |
Pneumatic Connection | G 1/8 | |
Port Connection | G 1/8 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Air | |
Dimensions | 27 x 191.5mm | |
Length | 191.5mm | |
Diameter | 27mm | |
Maximum Operating Pressure | 10 bar | |
ISO Standard | ISO 6432 | |
Weight | 293g | |
Minimum Operating Temperature | -20°C | |
VDMA Standard | VDMA24364-B1/B2-L | |
Maximum Operating Temperature | +80°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 559284 | ||
Bore 25mm | ||
Stroke 50mm | ||
Action Double | ||
Pneumatic Connection G 1/8 | ||
Port Connection G 1/8 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Air | ||
Dimensions 27 x 191.5mm | ||
Length 191.5mm | ||
Diameter 27mm | ||
Maximum Operating Pressure 10 bar | ||
ISO Standard ISO 6432 | ||
Weight 293g | ||
Minimum Operating Temperature -20°C | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Maximum Operating Temperature +80°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Cylinder, Self-Adjusting Cushioning, 191.5mm Length - DSNU-25-50-PPS-A
When you need to keep assembly tasks up to speed, turn to this pneumatic cylinder from Festo. As it's double-acting, it takes in compressed air from a port at each end, which moves its piston back and forth in a linear direction. Thanks to self-adjusting cushioning, the unit keeps up with changing loads and speeds to save you time and effort. The cylinder resists corrosion, thanks to its high-alloy piston rod and barrel. This makes it a reliable choice for humid industrial conditions.
Features & Benefits
• Sturdy cover is made from wrought aluminium alloy for an extended lifespan
• 50mm stroke for accurate reach
• Light 293g weight means it won't put unnecessary strain on your setup
• Wide operating pressure range between 1 and 10 bar makes it suitable to use with heavy-duty machinery
• 50mm stroke for accurate reach
• Light 293g weight means it won't put unnecessary strain on your setup
• Wide operating pressure range between 1 and 10 bar makes it suitable to use with heavy-duty machinery
Applications
• Textile industry
• Storage facilities and warehouses
• Pulp and paper mills
• Storage facilities and warehouses
• Pulp and paper mills
What temperature tolerance does this device have?
The cylinder performs effectively in demanding environments as it copes with operating temperatures between -20°C and +80°C.
What operating medium can I use this cylinder with?
For versatility, this cylinder is compatible with compressed air that's either lubricated or non-lubricated.
