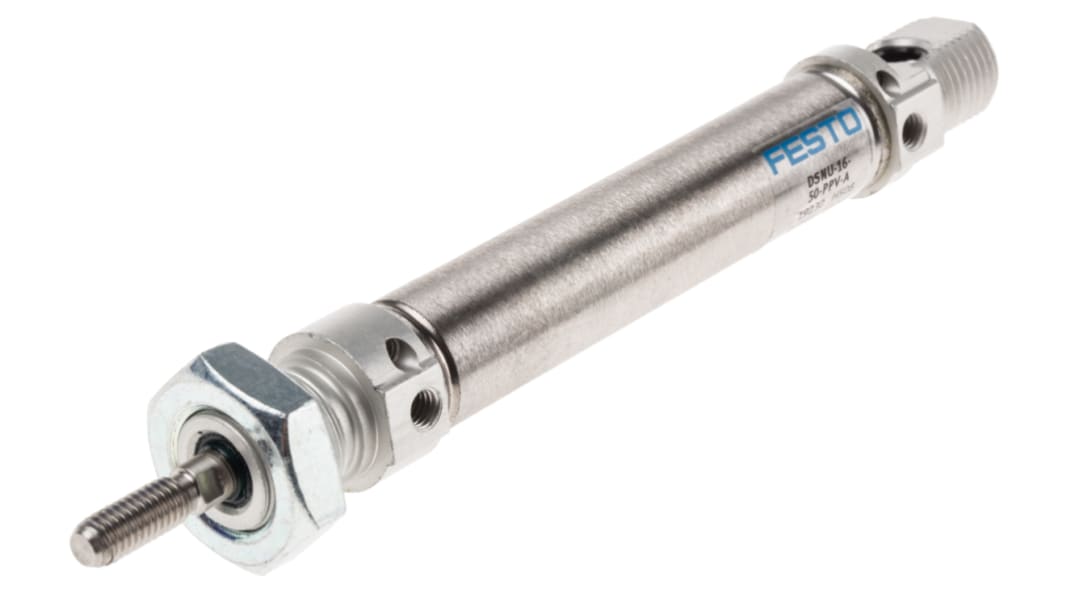

Festo Pneumatic Cylinder - 19230, 16mm Bore, 50mm Stroke, DSNU Series, Double Acting

RS Stock No.:: 121-4736
Mfr. Part No.:: DSNU-16-50-PPV-A
Brand:: Festo

Festo Pneumatic Cylinder - 19230, 16mm Bore, 50mm Stroke, DSNU Series, Double Acting

Save 7% when you buy 10 units

Subtotal (1 unit)*

£58.11

(exc. VAT)

£69.73

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

21 unit(s) ready to ship
Plus 28 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 - 4	£58.11
5 - 9	£55.78
10 +	£53.47

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Festo Pneumatic Cylinder - 559265, 16mm Bore, 50mm Stroke, DSNU Series, Double Acting

RS Stock No.: 121-4735

Each

£56.63

(exc. VAT)

£67.96

(inc. VAT)

RS Stock No.:: 121-4736
Mfr. Part No.:: DSNU-16-50-PPV-A
Brand:: Festo

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Manufacturer Series	DSNU
	Model Number p	19230
	Action	Double
	Stroke	50mm
	Bore	16mm
	Port Connection	M5
	Pneumatic Connection	M5
	Piston Rod Thread Gender	Male
	Cushioning Type	Air
	Dimensions	20 x 161mm
	Length	161mm
	Height	ISO8573-1:2010
	Width	ISO8573-1:2010
	Diameter	20mm
	Maximum Operating Pressure	10 bar
	Absolute Maximum Pressure	ISO8573-1:2010
	ISO Standard	ISO 6432, ISO 8573-1:2010
	VDMA Standard	ISO8573-1:2010
	Piston Speed	ISO8573-1:2010
	Stroke Interval Weight	4.6 g @ 10 mm Stroke
	Test Weight	89.9 @ 0 mm Stroke g
	Weight	112.9g
	Minimum Operating Temperature	ISO8573-1:2010°C
	Maximum Operating Temperature	ISO8573-1:2010°C

	Select all
	Brand Festo
	Manufacturer Series DSNU
	Model Number p 19230
	Action Double
	Stroke 50mm
	Bore 16mm
	Port Connection M5
	Pneumatic Connection M5
	Piston Rod Thread Gender Male
	Cushioning Type Air
	Dimensions 20 x 161mm
	Length 161mm
	Height ISO8573-1:2010
	Width ISO8573-1:2010
	Diameter 20mm
	Maximum Operating Pressure 10 bar
	Absolute Maximum Pressure ISO8573-1:2010
	ISO Standard ISO 6432, ISO 8573-1:2010
	VDMA Standard ISO8573-1:2010
	Piston Speed ISO8573-1:2010
	Stroke Interval Weight 4.6 g @ 10 mm Stroke
	Test Weight 89.9 @ 0 mm Stroke g
	Weight 112.9g
	Minimum Operating Temperature ISO8573-1:2010°C
	Maximum Operating Temperature ISO8573-1:2010°C

COO (Country of Origin):: DE

Festo Double-Acting Pneumatic Cylinder, 16mm Bore, 50mm Stroke - DSNU Series - DSNU-16-50-PPV-A

This Festo pneumatic actuator is an air-operated rod cylinder. It uses compressed gas to establish linear motions to push, pull, rotate, clamp or convey loads. The innovative cylinder is double-acting, with two ports through which gas is forced in and out to establish controlled and smooth movements. It's suitable for medium to heavy loads and high-speed applications. You can couple this versatile cylinder to an extensive range of equipment using the standard M5 pneumatic connection.

• Adjustable pneumatic cushioning piston absorbs impact and vibration, increasing the speed of the actuator for greater productivity
• Nitrile rubber (NBR) seals are airtight to prevent gas leaks that can diminish the performance of the cylinder
• High-alloy steel construction ensures the product is robust, rustproof and suitable for use in harsh conditions

Application Information

• Factory automation
• Automotive and transportation industries
• Manufacturing and packaging lines

Is this pneumatic cylinder water-resistant?

Water or chemical splashes cannot damage this high-performing Festo pneumatic cylinder, as it's a closed and sealed system that resists water, chemicals and corrosive particles.

Does the cylinder take up lots of space?

The innovative design of this pneumatic cylinder makes easy to install in tight spaces. It's 161mm long and weighs 112.9g.
