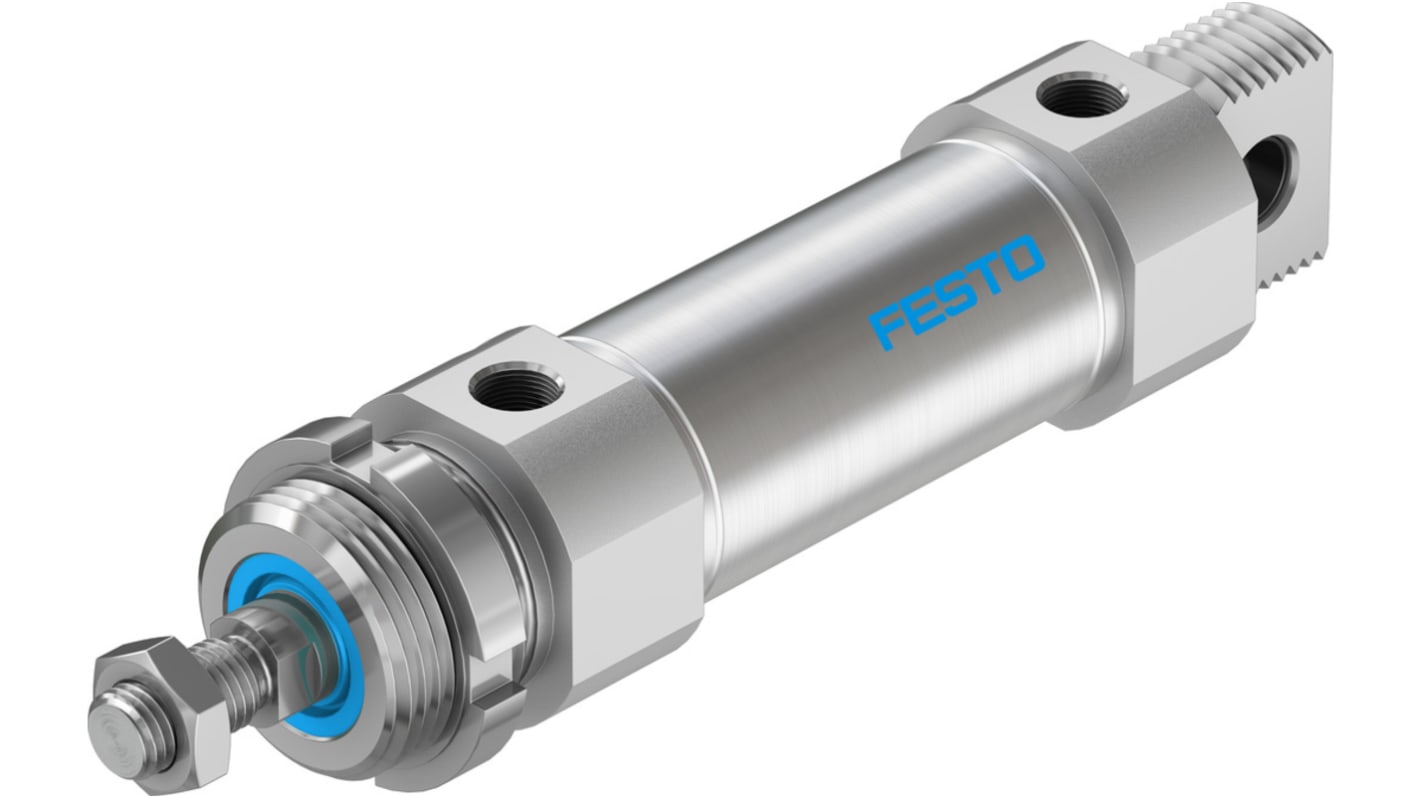

Festo Pneumatic Roundline Cylinder - 196032, 40mm Bore, 50mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 203-7890
- Mfr. Part No.:
- DSNU-40-50-PPV-A
- Brand:
- Festo
Subtotal (1 unit)*
£97.87
(exc. VAT)
£117.44
(inc. VAT)
FREE delivery for orders over £50.00
Limited stock
- 1 left, ready to ship
- Plus 4 left, shipping from 10 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £97.87 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£95.95
(exc. VAT)
£115.14
(inc. VAT)
- RS Stock No.:
- 203-7890
- Mfr. Part No.:
- DSNU-40-50-PPV-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 196032 | |
Stroke | 50mm | |
Action | Double | |
Bore | 40mm | |
Pneumatic Connection | G 1/4 | |
Piston Rod Thread Gender | Male | |
Cushioning Type | Pneumatic Cushioning | |
Maximum Operating Pressure | 10 bar | |
Maximum Operating Temperature | +80°C | |
Weight | 781g | |
VDMA Standard | VDMA24364-B1/B2-L | |
Minimum Operating Temperature | -20°C | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 196032 | ||
Stroke 50mm | ||
Action Double | ||
Bore 40mm | ||
Pneumatic Connection G 1/4 | ||
Piston Rod Thread Gender Male | ||
Cushioning Type Pneumatic Cushioning | ||
Maximum Operating Pressure 10 bar | ||
Maximum Operating Temperature +80°C | ||
Weight 781g | ||
VDMA Standard VDMA24364-B1/B2-L | ||
Minimum Operating Temperature -20°C | ||
- COO (Country of Origin):
- DE
Festo Pneumatic Roundline Cylinder, 752.9N Theoretical Force, High Alloy Steel Piston Rod - DSNU-40-50-PPV-A
Generate the linear motion needed to clamp, position or stop objects with this pneumatic roundline cylinder from Festo. To make sure you get precise movement in a straight line, the unit takes in compressed air at both ends to extend and retract the rod. Adjustable cushioning lets you customise the buffer length up to a maximum of 18mm according to the needs of your application. This absorbs impact to lengthen the service life of the component by minimising wear and damage.
Features & Benefits
• Aluminium alloy coating on the barrel is rust-resistant for reliable performance in damp and humid settings
• Light weight of 781g adds little strain to your system
• G1/4 pneumatic connection matches regulation fittings for easy installation
• Light weight of 781g adds little strain to your system
• G1/4 pneumatic connection matches regulation fittings for easy installation
Applications
• Bottling plants
• Offshore operations
• Medical imaging equipment
• Automated factory processes
• Offshore operations
• Medical imaging equipment
• Automated factory processes
What's the operating temperature range of this pneumatic roundline cylinder?
Thanks to its robust construction, you can bank on this product to deliver reliable performance in temperatures as low as -20°C going all the way up to +80°C.
What kind of seals does this cylinder have?
It has NBR and TPE-U(PU) seals that resist contaminants to keep your system pressurised.
