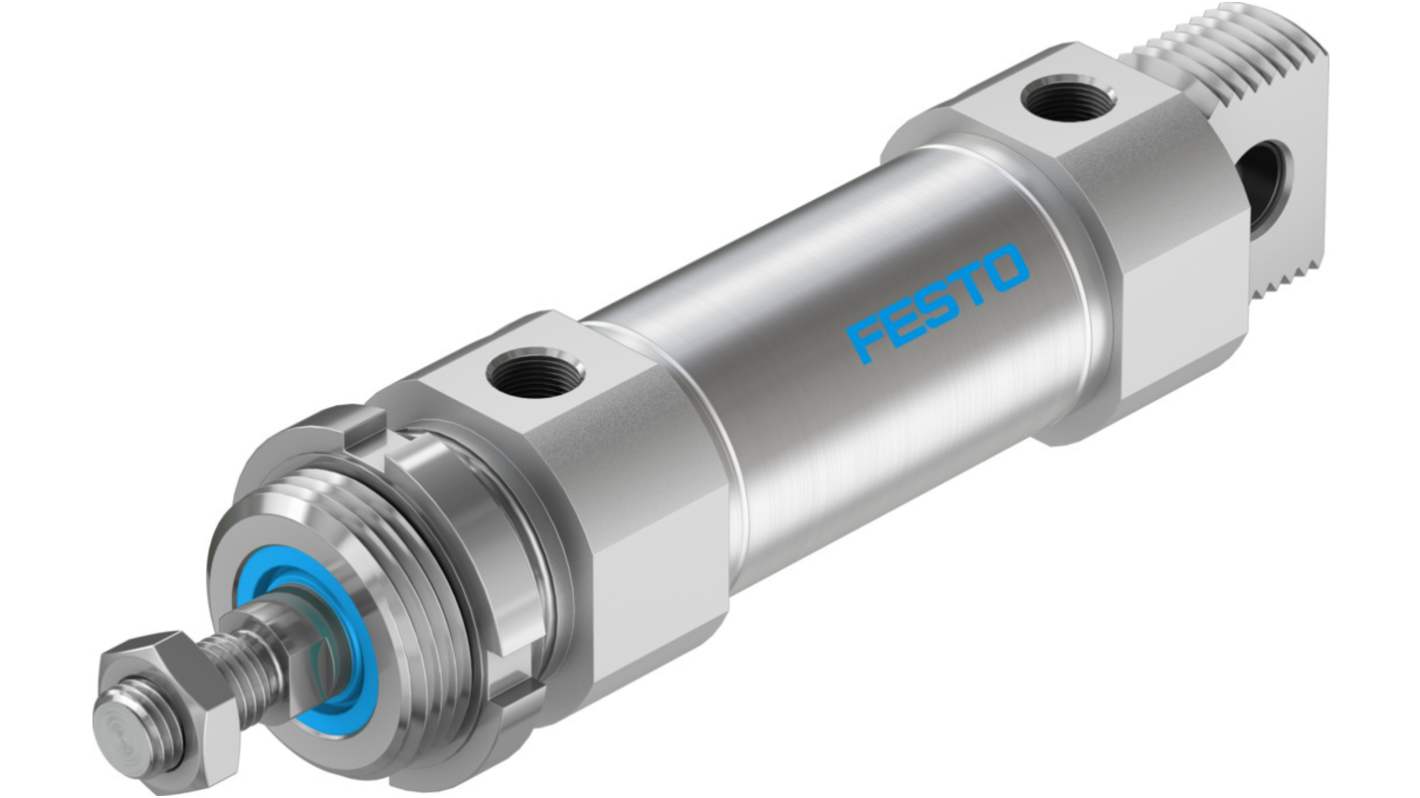

Festo Pneumatic Roundline Cylinder - 196031, 40mm Bore, 40mm Stroke, DSNU Series, Double Acting
- RS Stock No.:
- 203-7878
- Mfr. Part No.:
- DSNU-40-40-PPV-A
- Brand:
- Festo
Subtotal (1 unit)*
£97.35
(exc. VAT)
£116.82
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £97.35 |
*price indicative
- RS Stock No.:
- 203-7878
- Mfr. Part No.:
- DSNU-40-40-PPV-A
- Brand:
- Festo
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Festo | |
Manufacturer Series | DSNU | |
Model Number p | 196031 | |
Stroke | 40mm | |
Action | Double | |
Bore | 40mm | |
Pneumatic Connection | G 1/4 | |
Port Connection | G 1/4 | |
Diameter | 40mm | |
Maximum Operating Pressure | 10 bar | |
Test Weight | 294 g | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +80°C | |
Weight | 757g | |
VDMA Standard | VDMA24364-B1/B2-L | |
Select all | ||
---|---|---|
Brand Festo | ||
Manufacturer Series DSNU | ||
Model Number p 196031 | ||
Stroke 40mm | ||
Action Double | ||
Bore 40mm | ||
Pneumatic Connection G 1/4 | ||
Port Connection G 1/4 | ||
Diameter 40mm | ||
Maximum Operating Pressure 10 bar | ||
Test Weight 294 g | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +80°C | ||
Weight 757g | ||
VDMA Standard VDMA24364-B1/B2-L | ||
- COO (Country of Origin):
- DE
Festo DSNU Series Pneumatic Roundline Cylinder, 40mm Bore, 40mm Stroke - DSNU-40-40-PPV-A, Numeric Part Number: 196031
This pneumatic roundline cylinder is designed for precise motion control in various automation applications. With a bore diameter of 40mm and a stroke length of 40mm, it is engineered to support double action functionality efficiently. This cylinder operates effectively within a maximum pressure of 10 bar and can withstand temperatures ranging from -20°C to +80°C.
Features & Benefits
• Utilises pneumatic cushioning for smooth operation
• Double action mechanism enhances versatility in applications
• Compatible with G1/4 port connections for easy installation
• Lightweight design with a test weight of 294g allows for flexible use
• Adheres to VDMA24364 cylinder specifications for assurance of quality
• High maximum operating pressure ensures robust performance
• Double action mechanism enhances versatility in applications
• Compatible with G1/4 port connections for easy installation
• Lightweight design with a test weight of 294g allows for flexible use
• Adheres to VDMA24364 cylinder specifications for assurance of quality
• High maximum operating pressure ensures robust performance
Applications
• Used in automation systems requiring precise motion control
• Suitable for in manufacturing and assembly lines
• Commonly implemented in robotic systems for consistent actuation
• Employed in packaging machinery for reliable operation
• Utilised in conveyor systems to facilitate material handling
• Suitable for in manufacturing and assembly lines
• Commonly implemented in robotic systems for consistent actuation
• Employed in packaging machinery for reliable operation
• Utilised in conveyor systems to facilitate material handling
What is the significance of the double action feature in this cylinder?
The double action feature allows the cylinder to operate in both directions, improving efficiency and providing greater versatility in applications that require controlled movement.
How does the pneumatic cushioning enhance functionality?
Pneumatic cushioning reduces the impact at the end of the stroke, resulting in quieter operation and an extended lifespan of the cylinder by minimising wear and tear.
What are the implications of the specified temperature range on this product's usage?
The temperature range allows for diverse operational environments, ensuring reliability in both colder and warmer conditions, which is essential for industries with varying ambient temperatures.
Can this product be integrated into existing automation systems easily?
Yes, the G1/4 port connection facilitates straightforward integration into existing setups, making it compatible with standard fittings used in the industry.
