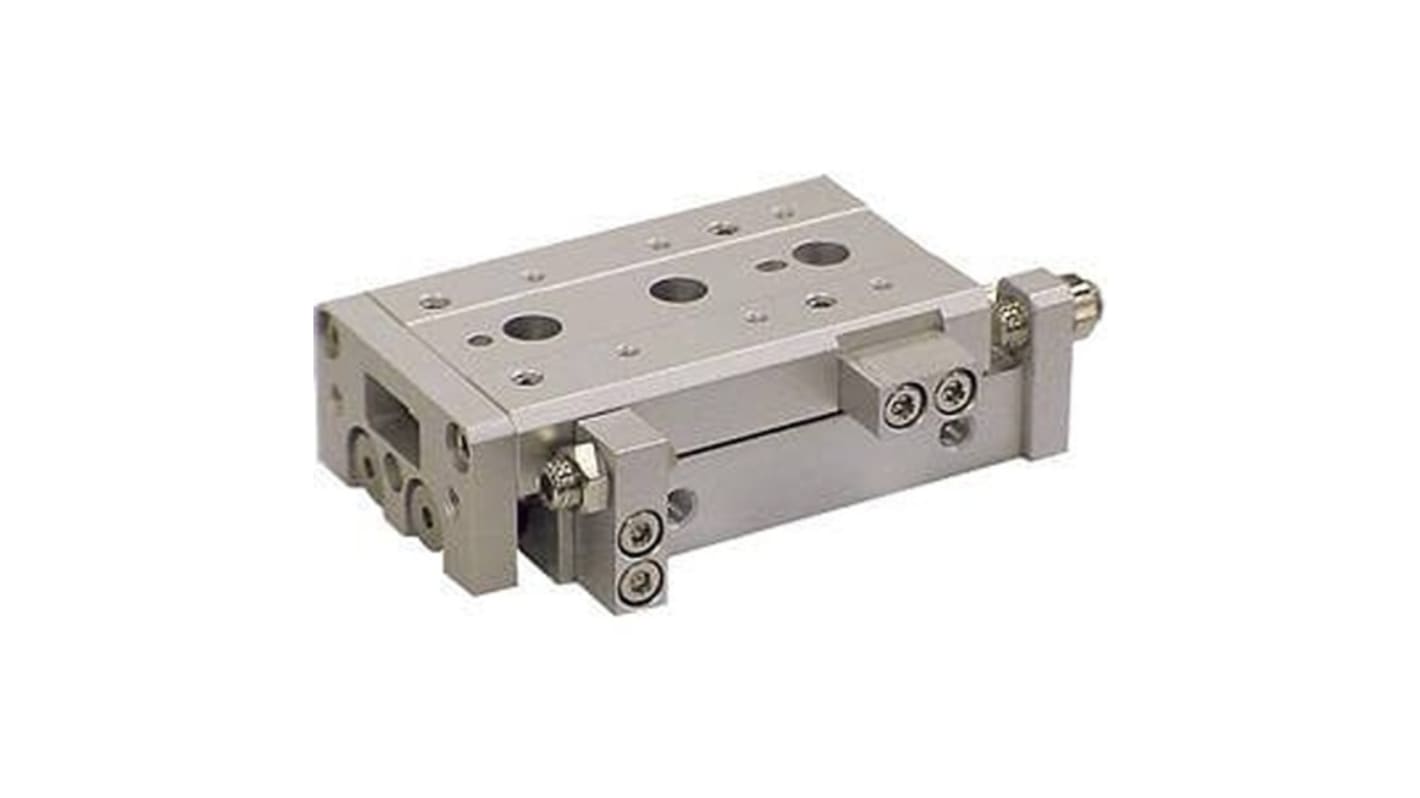

SMC Pneumatic Guided Cylinder - 16 mm Bore, MXS Series, 40 mm Double Acting Acting
- RS Stock No.:
- 281-0915
- Mfr. Part No.:
- MXS16L-40
- Brand:
- SMC
Subtotal (1 unit)*
£435.54
(exc. VAT)
£522.65
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 04 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £435.54 |
*price indicative
- RS Stock No.:
- 281-0915
- Mfr. Part No.:
- MXS16L-40
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 16mm | |
| Series | MXS | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 1 Mpa | |
| Maximum Operating Temperature | 60°C | |
| Standards/Approvals | RoHS | |
| Stroke Length | 40mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 16mm | ||
Series MXS | ||
Action Type Double Acting | ||
Maximum Operating Pressure 1 Mpa | ||
Maximum Operating Temperature 60°C | ||
Standards/Approvals RoHS | ||
Stroke Length 40mm | ||
- COO (Country of Origin):
- JP
The SMC air slide table is suited for precision assembly. It improves work piece mounting repeatability.
Variety of switches with a variety of wire lead lengths
Options buffer, end lock and axial piping
