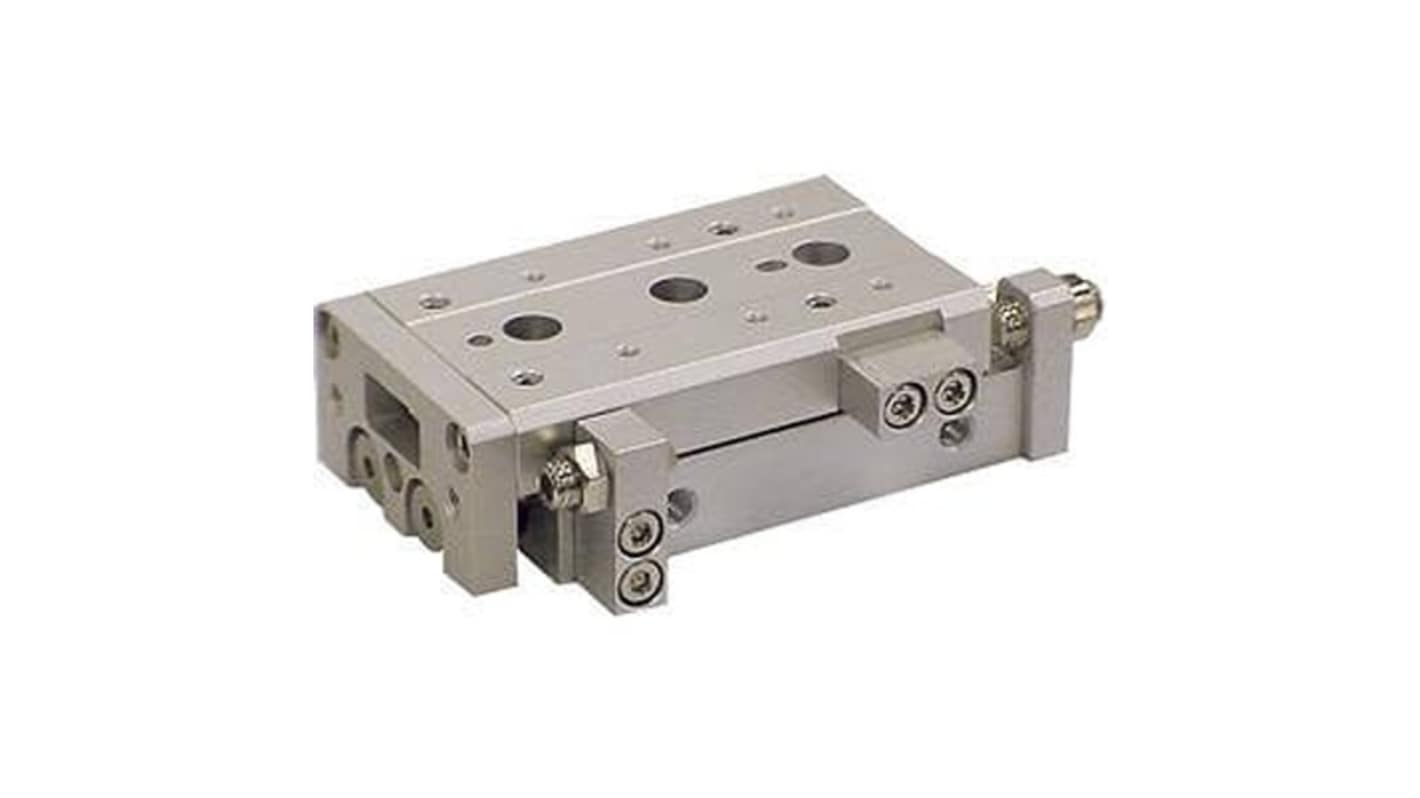

SMC Pneumatic Guided Cylinder - MXS16L-75 16 mm Bore, MXS Series, 75 mm Double Acting Acting
- RS Stock No.:
- 369-204
- Mfr. Part No.:
- MXS16L-75
- Brand:
- SMC
Subtotal (1 unit)*
£462.71
(exc. VAT)
£555.25
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 10 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £462.71 |
*price indicative
- RS Stock No.:
- 369-204
- Mfr. Part No.:
- MXS16L-75
- Brand:
- SMC
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | SMC | |
| Product Type | Pneumatic Guided Cylinder | |
| Bore Size | 16mm | |
| Series | MXS | |
| Action Type | Double Acting | |
| Maximum Operating Pressure | 0.7 Mpa | |
| Body Material | Aluminium Alloy | |
| Cushioning Type | Rubber Bumper | |
| Rod Type | Dual Piston Rod | |
| Guide Type | Linear | |
| Maximum Piston Speed | 500mm/s | |
| Minimum Operating Temperature | -10°C | |
| Maximum Operating Temperature | 60°C | |
| Weight | 1.09kg | |
| Width | 36.5mm | |
| Standards/Approvals | RoHS | |
| Length | 162mm | |
| Stroke Length | 75mm | |
| Select all | ||
|---|---|---|
Brand SMC | ||
Product Type Pneumatic Guided Cylinder | ||
Bore Size 16mm | ||
Series MXS | ||
Action Type Double Acting | ||
Maximum Operating Pressure 0.7 Mpa | ||
Body Material Aluminium Alloy | ||
Cushioning Type Rubber Bumper | ||
Rod Type Dual Piston Rod | ||
Guide Type Linear | ||
Maximum Piston Speed 500mm/s | ||
Minimum Operating Temperature -10°C | ||
Maximum Operating Temperature 60°C | ||
Weight 1.09kg | ||
Width 36.5mm | ||
Standards/Approvals RoHS | ||
Length 162mm | ||
Stroke Length 75mm | ||
- COO (Country of Origin):
- JP
The SMC Guided Cylinder engineered for precision motion control, featuring an integrated slide table with symmetric construction for balanced operation. It is compact, durable, and designed to perform reliably in space-constrained industrial environments.
Cross roller bearings for enhanced rigidity and precision
Dual rod mechanism ensuring consistent functionality
Robust construction built to endure demanding industrial conditions
